CT210-CEPMX (1996)
Toyota Carina Ff

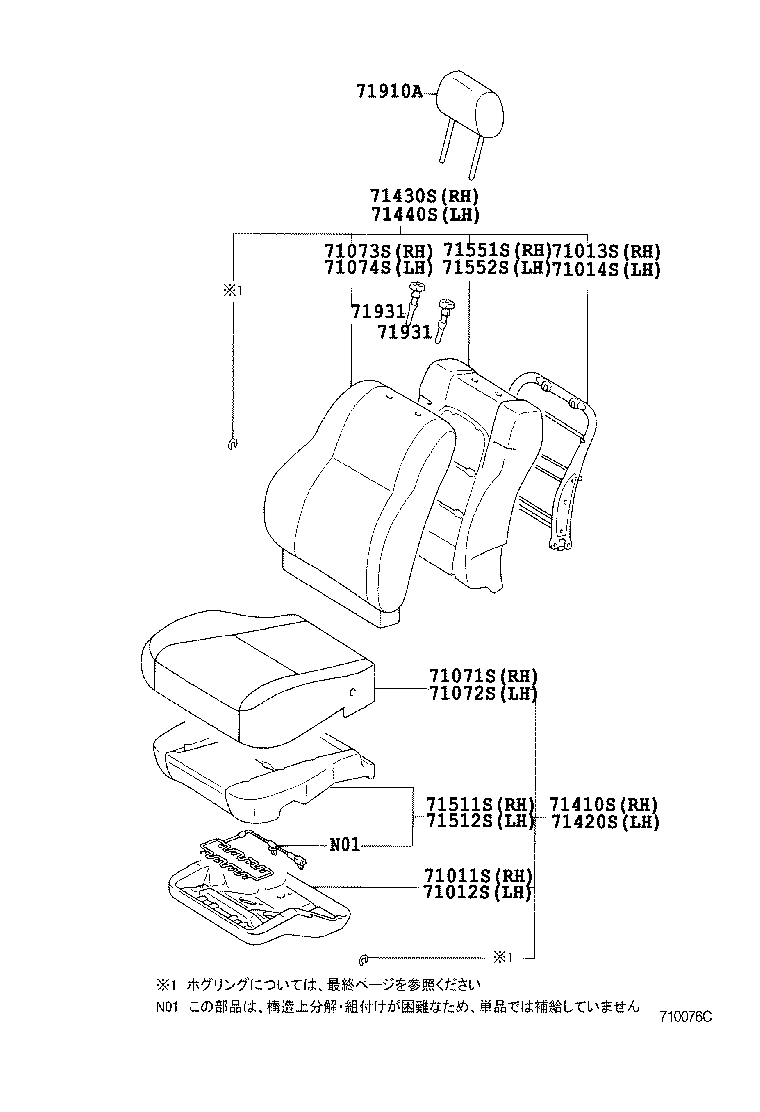

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20430 |
AT21#,CT21#,ST215 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AT21#,CT21#,ST215 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-20680 |
AT211,212,CT21#,ST215 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-20680 |
AT211,212,CT21#,ST215 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2H010E0 |
AT212,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71071-2H010B0 |
AT212,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2G340B0 |
AT212,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2G340E0 |
AT212,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G850E2 |
AT212,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71073-2G850B2 |
AT212,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2G180E2 |
AT212,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71074-2G180B2 |
AT212,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2H580E0 |
AT212,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71410-2H580B0 |
AT212,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2H240B0 |
AT212,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2H240E0 |
AT212,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2H630E0 |
AT212,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71430-2H630B0 |
AT212,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G710E0 |
AT212,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-2G710B0 |
AT212,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20790 |
AT211,212,CT21#,ST215 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20170 |
AT211,212,CT21#,ST215 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20470 |
AT211,212,CT21#,ST215 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20470 |
AT211,212,CT21#,ST215 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-21080B0 |
AT210,212,CT21# GRAY,TRIM1# |
2 | ||
| 71910-21080E0 |
AT212,CT21# ANTELOPE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-21060B0 |
AT21#,CT21#,ST215 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080E1 |
AT211,212,CT21#,ST215 ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050E0 |
AT211,212,CT21#,ST215 ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-20120E1 |
AT211,212,CT21#,ST215 ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21060E0 |
AT211,212,CT21#,ST215 ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050B0 |
AT21#,CT21#,ST215 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-21010B0 |
AT21#,CT21#,ST215 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080B0 |
AT21#,CT21#,ST215 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT21#,CT21#,ST215 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-21010E0 |
AT211,212,CT21#,ST215 ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-21060B0 |
AT21#,CT21#,ST215 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080E1 |
AT211,212,CT21#,ST215 ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050E0 |
AT211,212,CT21#,ST215 ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-20120E1 |
AT211,212,CT21#,ST215 ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21060E0 |
AT211,212,CT21#,ST215 ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050B0 |
AT21#,CT21#,ST215 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-21010B0 |
AT21#,CT21#,ST215 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080B0 |
AT21#,CT21#,ST215 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT21#,CT21#,ST215 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-21010E0 |
AT211,212,CT21#,ST215 ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 71811-20300B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20270E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 71812-20270B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 71862-20130B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20250 |
AT21#,CT21#,ST215 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20310 |
AT21#,CT21#,ST215 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20220 |
AT21#,CT21#,ST215 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20280 |
AT21#,CT21#,ST215 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST215 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST215 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST215 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST215 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST215 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST215 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST215 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST215 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20080C0 |
AT211,212,CT21#,ST215 BLACK,TRIM1#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-20080C0 |
AT211,212,CT21#,ST215 BLACK,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT211,212,CT21#,ST215 BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
AT211,212,CT21#,ST215 BLACK,TRIM1#,4# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-21010 |
AT21#,CT21#,ST215 |
1 | ||
| 72201-20110 |
AT21#,CT21#,ST215 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-20110 |
AT21#,CT21#,ST215 |
1 | ||
| 72201-21010 |
AT21#,CT21#,ST215 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 72457-18010B3 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20050 |
AT21#,CT21#,ST215 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
AT21#,CT21#,ST215 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 72525-16010B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 72526-16010B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
(9608- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
