CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

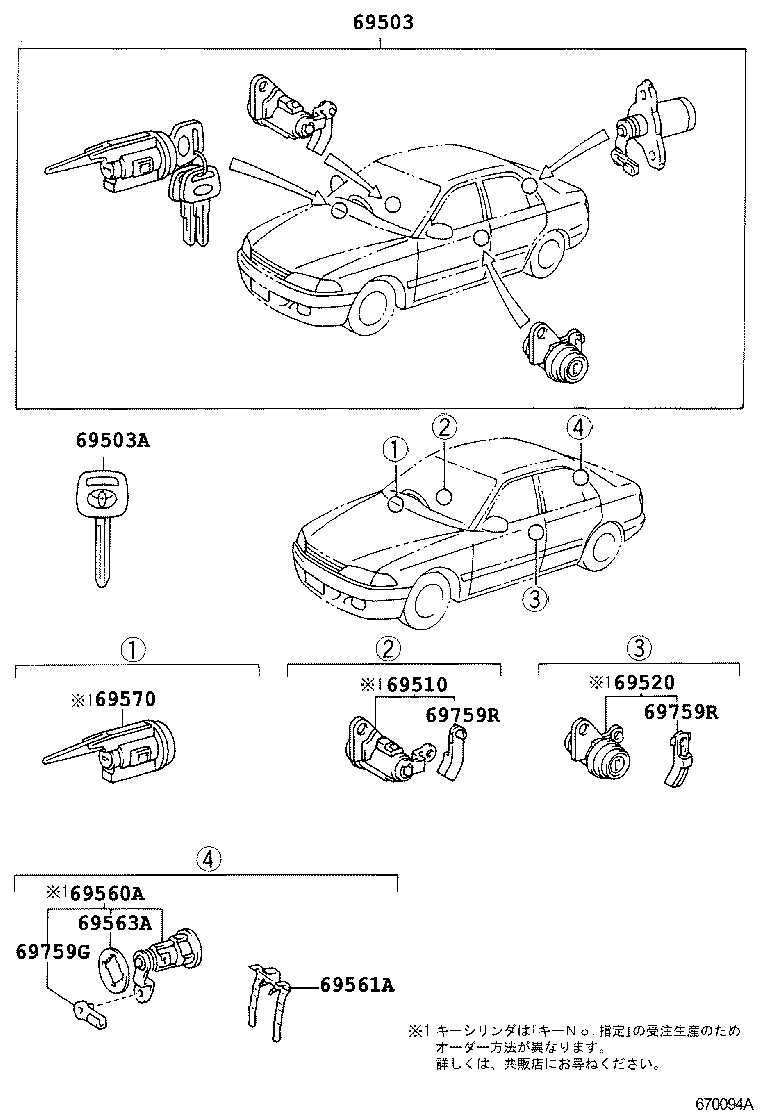

Click highlighted areas on diagram

diagram 69503 69503A 69510 69520 69560A 69561A 69563A 69570 69759G 69759R 69759R
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-2B540

AT212,CT21#

 1
69005-2B550

AT212,CT21#

L ｾﾚｸｼﾖﾝ OR ﾏｲﾛ-ﾄﾞ

 1
69503A - KEY, BLANK
90999-00185

AT21#,CT21#,ST215

ﾏｽﾀｰｷｰ,*68付き

 3
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-44020

AT21#,CT21#,ST215

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-44010

AT21#,CT21#,ST215

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-20400

AT21#,CT21#,ST215

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69511-16030

AT21#,CT21#,ST215

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-32020

AT21#,CT21#,ST215

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12150

AT212,CT21#

 1
69570-20220

AT21#,CT21#,ST215

ｱﾘ(ｲﾙﾐﾈ-ﾃﾂﾄﾞｴﾝﾄﾘ-ｼｽﾃﾑ(ｲｸﾞﾆｼﾖﾝｷ- ｼﾖｳﾒｲ))

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-20080

AT21#,CT21#,ST215

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-44010

AT21#,CT21#,ST215

右側

 1
69759-44020

AT21#,CT21#,ST215

左側

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-44010

AT21#,CT21#,ST215

右側

 1
69759-44020

AT21#,CT21#,ST215

左側

 1
