CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

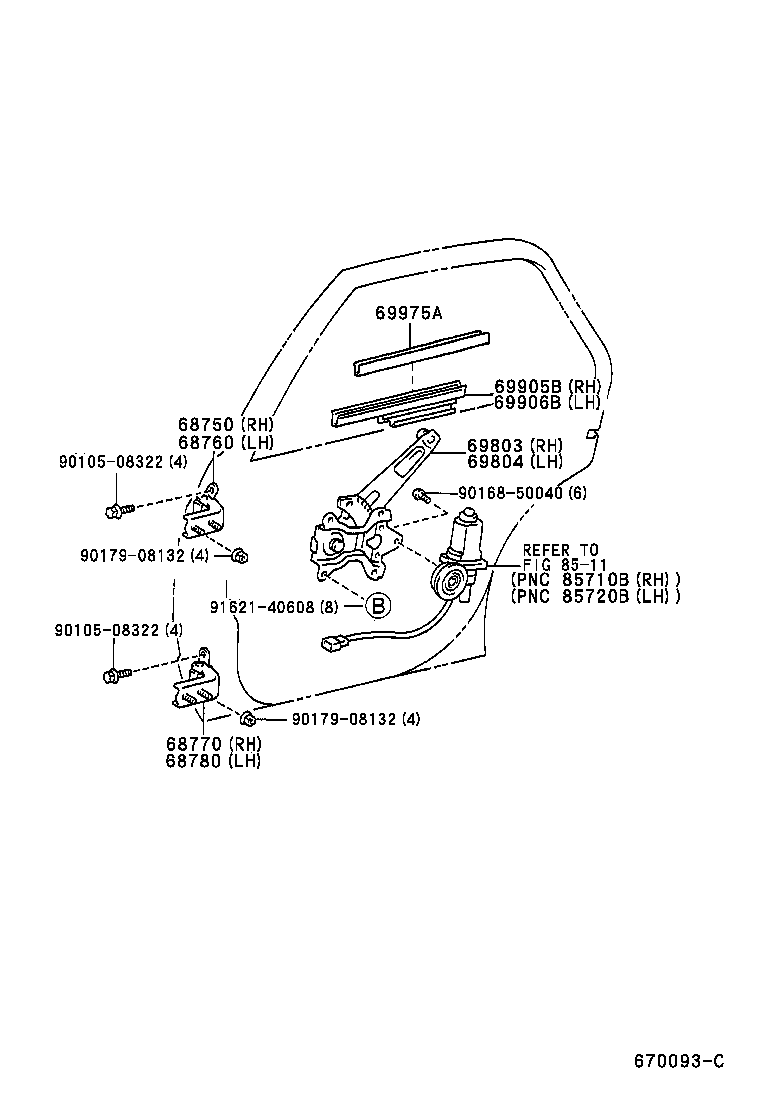

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69905B 69906B 69975A 8511 9010508322 9010508322 9016850040 9017908132 9017908132 9162140608
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

AT21#,CT21#,ST215

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

AT21#,CT21#,ST215

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32070

AT21#,CT21#,ST215

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32060

AT21#,CT21#,ST215

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-20280

AT21#,CT21#,ST215

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-20280

AT21#,CT21#,ST215

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-16040

AT21#,CT21#,ST215

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-16020

AT21#,CT21#,ST215

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-16020

AT21#,CT21#,ST215

 2
Common parts
90105-08322
90168-50040
90179-08132
91621-40608
Linked diagrams
8511
