CT210-CEPMX (1996)
Toyota Carina Ff

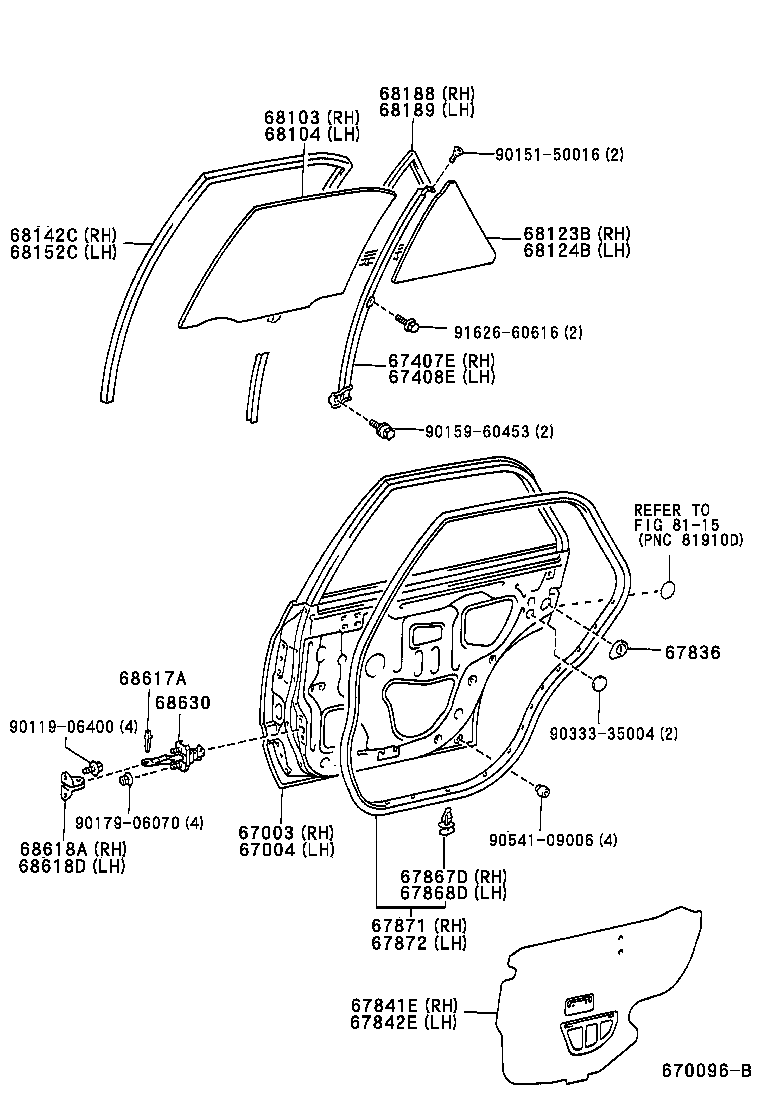

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20760 |
AT21#,CT21#,ST215 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20760 |
AT21#,CT21#,ST215 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-20270 |
AT21#,CT21#,ST215 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-20260 |
AT21#,CT21#,ST215 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-20120 |
AT21#,CT21#,ST215 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-20350 |
AT21#,CT21#,ST215 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-20240 |
AT21#,CT21#,ST215 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT21#,CT21#,ST215 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AT21#,CT21#,ST215 |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20340 |
AT21#,CT21#,ST215 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20340 |
AT21#,CT21#,ST215 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-20880 |
AT21#,CT21#,ST215 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-20800 |
AT21#,CT21#,ST215 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-20660 |
AT21#,CT21#,ST215 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-20580 |
AT21#,CT21#,ST215 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-20200 |
AT21#,CT21#,ST215 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-20140 |
AT21#,CT21#,ST215 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-20190 |
AT21#,CT21#,ST215 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-20190 |
AT21#,CT21#,ST215 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20050 |
AT21#,CT21#,ST215 |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-26010 |
AT21#,CT21#,ST215 |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-26010 |
AT21#,CT21#,ST215 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20140 |
AT21#,CT21#,ST215 |
2 | ||
| Common parts | ||||
| 90119-06400 | ||||
| 90151-50016 | ||||
| 90159-60453 | ||||
| 90179-06070 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 91626-60616 | ||||
| Linked diagrams | ||||
| 8115 | ||||
ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2L140B2 |
AT212,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2L140E2 |
AT212,CT21# ANTELOPE,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-32140 |
AT21#,CT21#,ST215 |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07170B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07170E0 |
AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2L070E2 |
AT212,CT21# ANTELOPE,TRIM4# |
1 | ||
| 67640-2L070B2 |
AT212,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-32140 |
AT21#,CT21#,ST215 |
4 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-20110 |
AT21#,CT21#,ST215 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-20060 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 67772-32020 | ||||
