CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

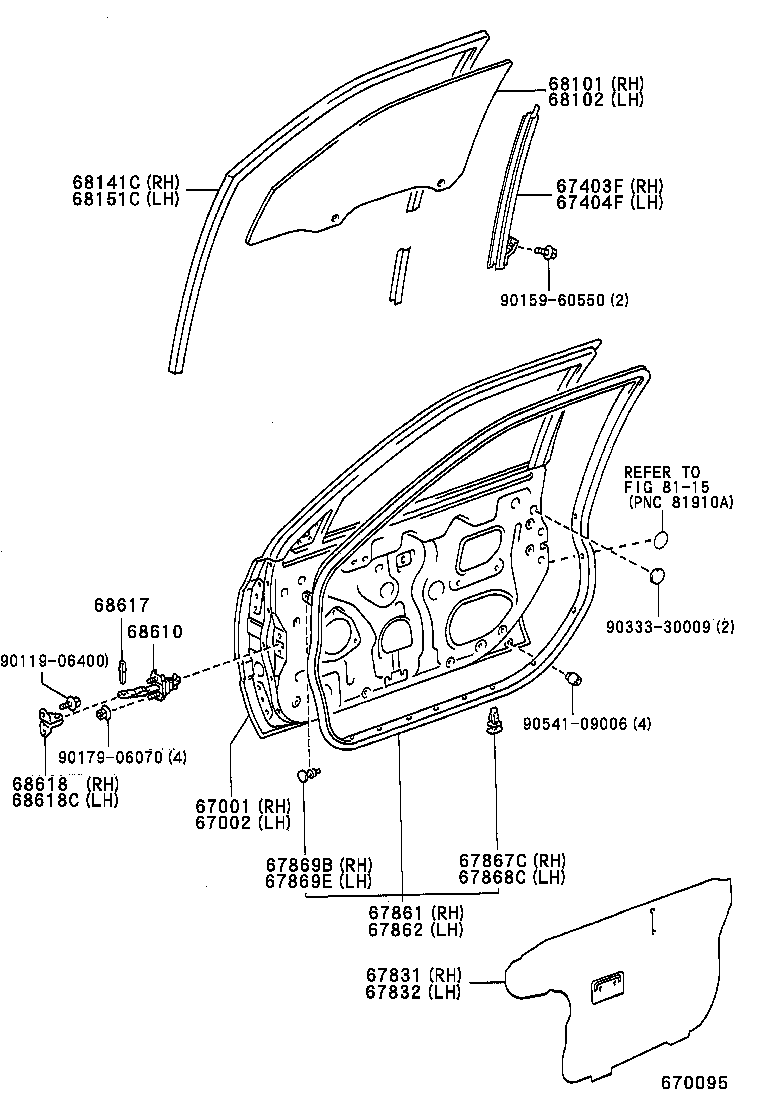

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

diagram 67001 67002 67403F 67404F 67831 67832 67861 67862 67867C 67868C 67869B 67869E 68101 68102 68141C 68151C 68610 68617 68618 68618C 8115 9011906400 9015960550 9017906070 9033330009 9054109006
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-2B090

AT21#,CT21#,ST215

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-2B040

AT21#,CT21#,ST215

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-20130

AT21#,CT21#,ST215

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-20110

AT21#,CT21#,ST215

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-20490

AT21#,CT21#,ST215

 1
67831-20480

AT21#,CT21#,ST215

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-20320

AT21#,CT21#,ST215

 1
67832-20310

AT21#,CT21#,ST215

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20400

AT21#,CT21#,ST215

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20400

AT21#,CT21#,ST215

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

AT21#,CT21#,ST215

 16
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

AT21#,CT21#,ST215

 16
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

AT21#,CT21#,ST215

 1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

AT21#,CT21#,ST215

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20780

AT21#,CT21#,ST215

*UVCTT,厚さ=4.0.ｸﾞﾘｰﾝ

 1
68111-20740

AT21#,CT21#,ST215

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20700

AT21#,CT21#,ST215

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68112-20660

AT21#,CT21#,ST215

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-20290

AT21#,CT21#,ST215

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-20110

AT21#,CT21#,ST215

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20180

AT21#,CT21#,ST215

 2
68617 - PIN, FRONT DOOR CHECK
68617-20050

AT21#,CT21#,ST215

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-26010

AT21#,CT21#,ST215

 1
68618C - BRACKET, FRONT DOOR CHECK ARM, LH
68618-26010

AT21#,CT21#,ST215

 1
Common parts
90119-06400
90159-60550
90179-06070
90333-30009
90541-09006
Linked diagrams
8115

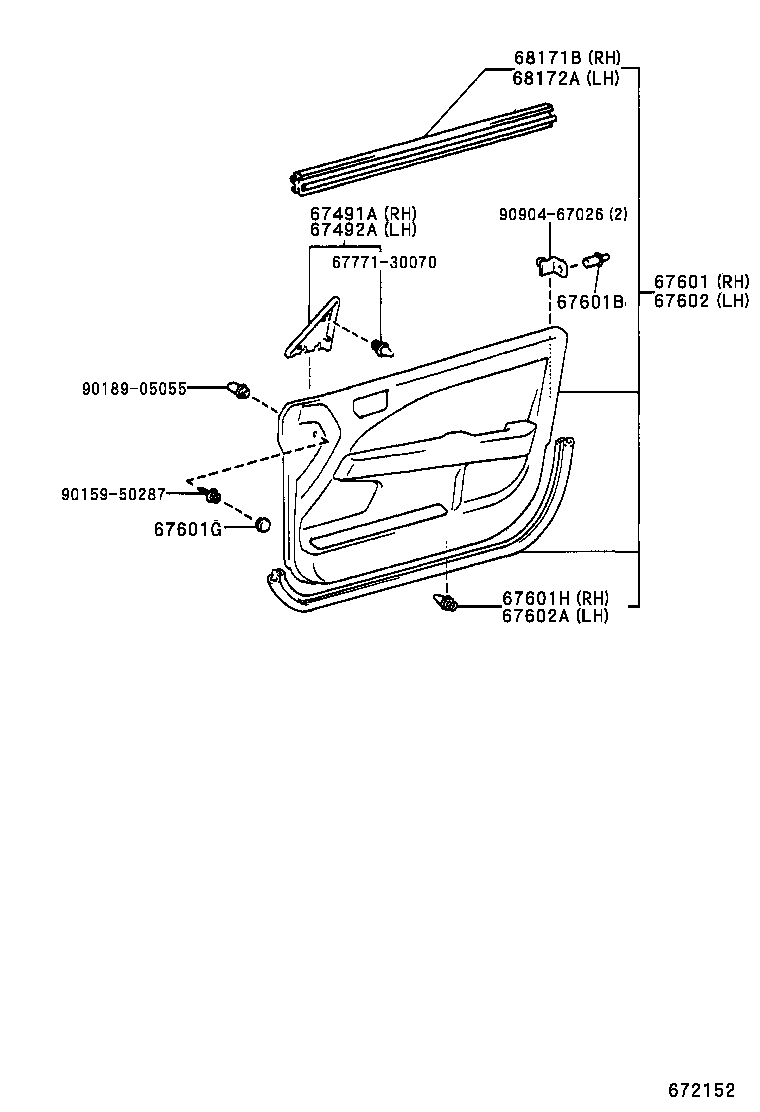

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601G 67601H 67602 67602A 6777130070 68171B 68172A 9015950287 9018905055 9090467026
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20300C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20360C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2G640B2

AT212,CT21#

SHADOW GRAY,TRIM1#

 1
67610-2G640E2

AT212,CT21#

ANTELOPE,TRIM4#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066E5

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 2
90467-07066P0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 2
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800E3

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 2
90950-01800B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-32140

AT21#,CT21#,ST215

 6
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67050-20140B2

AT212,CT21#

SHADOW GRAY,TRIM1#

 1
67050-20140E2

AT212,CT21#

ANTELOPE,TRIM4#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-32140

AT21#,CT21#,ST215

 6
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-20080

AT21#,CT21#,ST215

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-20070

AT21#,CT21#,ST215

 1
Common parts
67771-30070
90159-50287
90189-05055
90904-67026
