CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

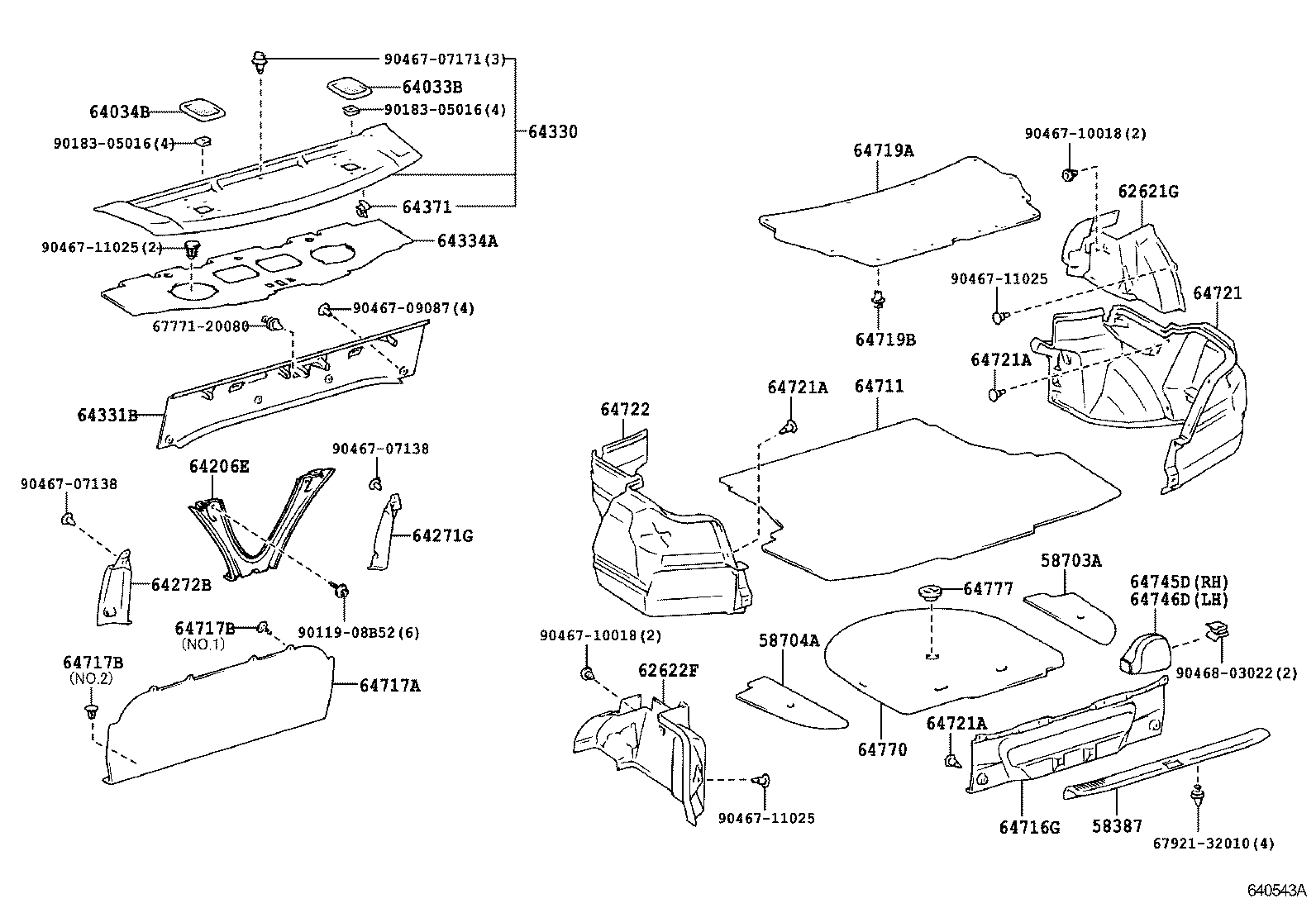

Click highlighted areas on diagram

diagram 58387 58703A 58704A 62621G 62622F 64033B 64034B 64206E 64271G 64272B 64330 64331B 64334A 64371 64711 64716G 64717A 64717B 64717B 64719A 64719B 64721 64721A 64721A 64721A 64722 64745D 64746D 64770 64777 6777120080 6792132010 9011908B52 9018305016 9018305016 9046707138 9046707138 9046707171 9046709087 9046710018 9046710018 9046711025 9046711025 9046711025 9046803022
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-20110

AT21#,CT21#,ST215

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20210

AT21#,CT21#,ST215

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20170

AT21#,CT21#,ST215

 1
62621G - PAD, QUARTER WHEEL HOUSE, INNER FRON RH
62621-20070

AT21#,CT21#,ST215

 1
62622F - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62622-20070

AT21#,CT21#,ST215

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-16040B1

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
64383-16040E1

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64383-16040E1

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
64383-16040B1

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B630B0

AT211,212,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
64330-2D230E0

AT211,212,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),ANTELOPE,TRIM4#

 1
64330-2D220B0

AT211,212,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1#

 1
64330-2D220E0

AT211,212,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),ANTELOPE,TRIM4#

 1
64330-2B630E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
64330-2D230B0

AT211,212,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-2D240E0

AT211,212,CT21#,ST215

ｱﾘ(ﾘﾔﾜｲﾊﾟ),ANTELOPE,TRIM4#

 1
64330-2D240B0

AT211,212,CT21#,ST215

ｱﾘ(ﾘﾔﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-2D250E0

AT211,212,CT21#,ST215

ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4#

 1
64330-2D260E0

AT211,212,CT21#,ST215

ｱﾘ(ｽﾋﾟ-ｶ & ﾘﾔ ﾜｲﾊﾟ),ANTELOPE,TRIM4#

 1
64330-2D270B0

AT21#,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟ & ﾘﾔｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-2D260B0

AT21#,CT21#,ST215

ｱﾘ(ｽﾋﾟ-ｶ & ﾘﾔ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-2D250B0

AT21#,CT21#,ST215

ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-2D270E0

AT211,212,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟ & ﾘﾔｽﾋﾟ-ｶ),ANTELOPE,TRIM4#

 1
64330-2D280B0

AT21#,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-2D280E0

AT211,212,CT21#,ST215

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｽﾋﾟ-ｶ),ANTELOPE,TRIM4#

 1
64334A - PAD, PACKAGE TRAY TRIM
64334-20260

AT21#,CT21#,ST215

 1
64371 - RETAINER, PACKAGE TRAY TRIM
64371-16010

AT21#,CT21#,ST215

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2B160C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-20610C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-20350C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64717-20330C1

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-07090C4

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#,NO.1

 4
90467-0906622

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#,NO.2

 4
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-07090C4

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#,NO.1

 4
90467-0906622

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#,NO.2

 4
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-20140C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-08188

AT21#,CT21#,ST215

 12
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-20340C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08188

AT21#,CT21#,ST215

 12
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08188

AT21#,CT21#,ST215

 12
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08188

AT21#,CT21#,ST215

 12
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-20300C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
64745D - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-20070

AT21#,CT21#,ST215

 1
64746D - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-20070

AT21#,CT21#,ST215

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20290

AT21#,CT21#,ST215

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-20200

AT21#,CT21#,ST215

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

AT21#,CT21#,ST215

 1
Common parts
67771-20080
67921-32010
90119-08B52
90183-05016
90467-07138
90467-07171
90467-09087
90467-10018
90467-11025
90468-03022
