CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

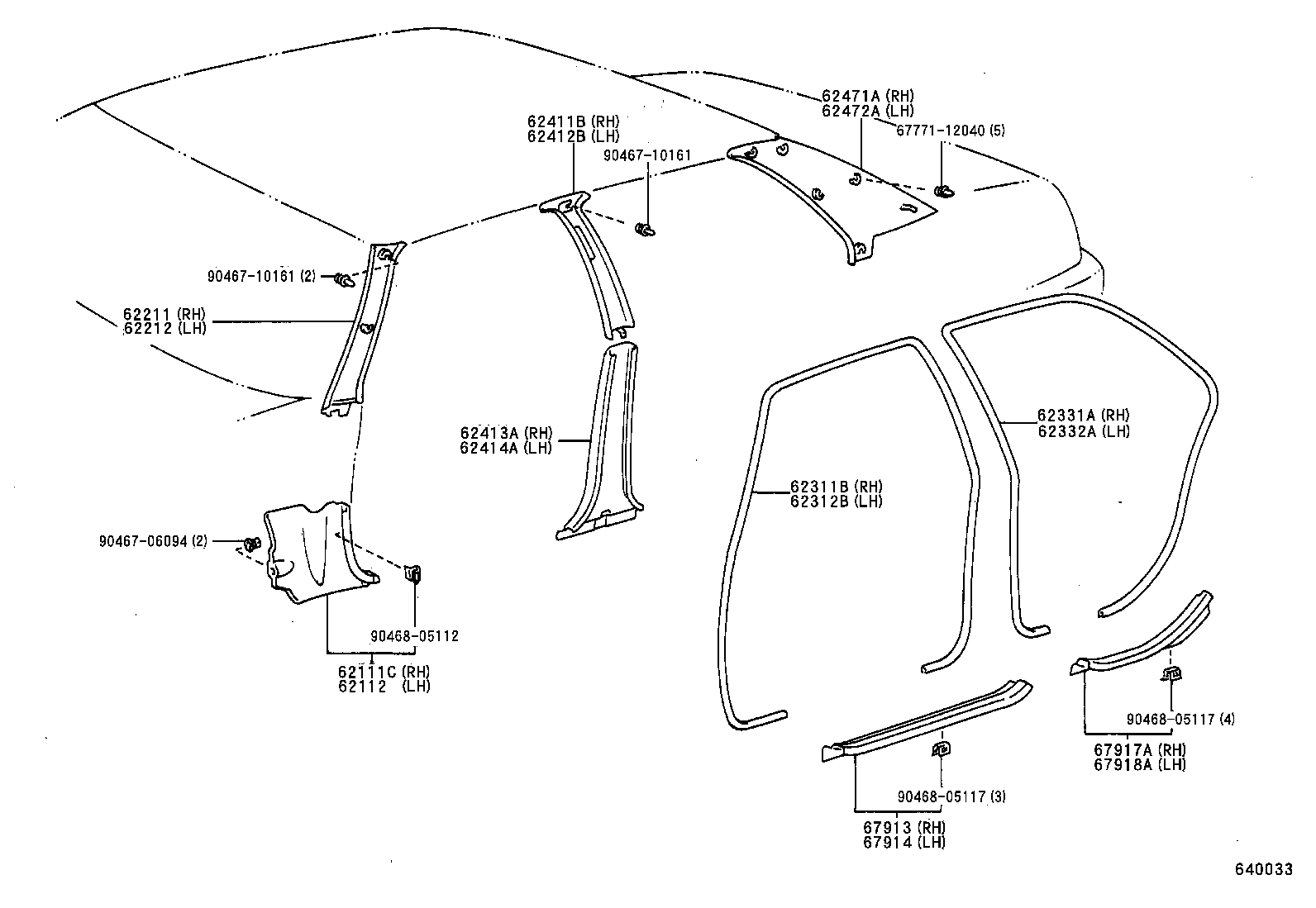

Click highlighted areas on diagram

diagram 62111C 62112 62211 62212 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62414A 62471A 62472A 6777112040 67913 67914 67917A 67918A 9046706094 9046710161 9046710161 9046805112 9046805117 9046805117
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-20280B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
62111-20280E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-20340B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
62112-20340E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-20280B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62211-20280E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-20280B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62212-20280E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-20150E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62311-20150B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-20150E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62312-20150B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-20120E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62331-20120B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-20120E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62332-20120B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-20341B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62411-20340B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62411-20340E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62411-20341E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-20340B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62412-20341B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62412-20340E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62412-20341E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-20200B1

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
62413-20201B1

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
62413-20200E1

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
62413-20201E1

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-20181B1

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
62414-20180E1

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
62414-20180B1

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
62414-20181E1

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-20590B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
62471-20590E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-20610E0

AT211,212,CT21#,ST215

LT.ANTELOPE,TRIM4#

 1
62472-20610B0

AT21#,CT21#,ST215

LT.GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-20290E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
67913-20290B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-20220E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
67914-20220B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-20260E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
67917-20260B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-20220E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
67918-20220B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
Common parts
67771-12040
90467-06094
90467-10161
90468-05112
90468-05117
