CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

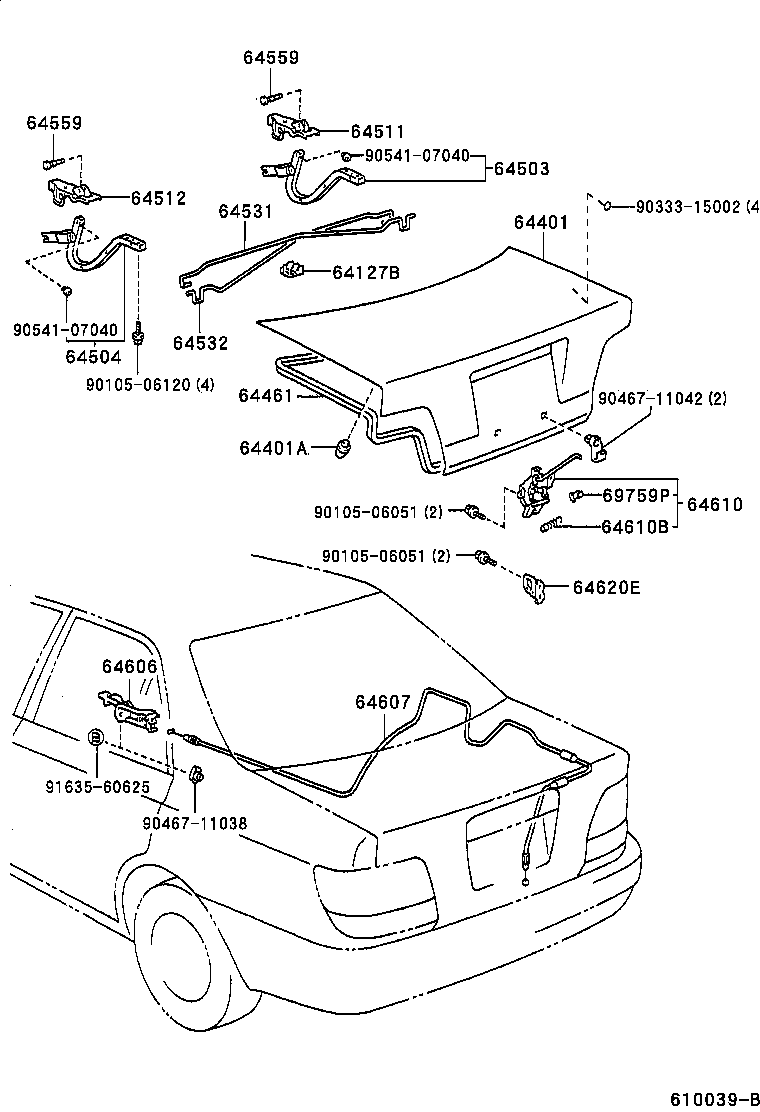

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-20120 |
AT21#,CT21#,ST215 |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-2B770 |
AT21#,CT21#,ST215 |
1 | ||
| 64401-2B780 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09055 |
AT21#,CT21#,ST215 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20430 |
AT21#,CT21#,ST215 |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-20230 |
AT21#,CT21#,ST215 |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64511-20230 |
AT21#,CT21#,ST215 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20590 |
AT21#,CT21#,ST215 |
1 | ||
| 64531-20600 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20600 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64532-20590 |
AT21#,CT21#,ST215 |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32020 |
AT21#,CT21#,ST215 |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32020 |
AT21#,CT21#,ST215 |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-20180 |
AT21#,CT21#,ST215 |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-2B040 |
AT21#,CT21#,ST215 |
1 | ||
| 64607-2B070 |
AT21#,CT21#,ST215 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20300 |
AT21#,CT21#,ST215 |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-05001 |
AT21#,CT21#,ST215 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64621-12070 |
AT21#,CT21#,ST215 |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90105-06120 | ||||
| 90333-15002 | ||||
| 90467-11038 | ||||
| 90467-11042 | ||||
| 90541-07040 | ||||
| 91635-60625 | ||||
