CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

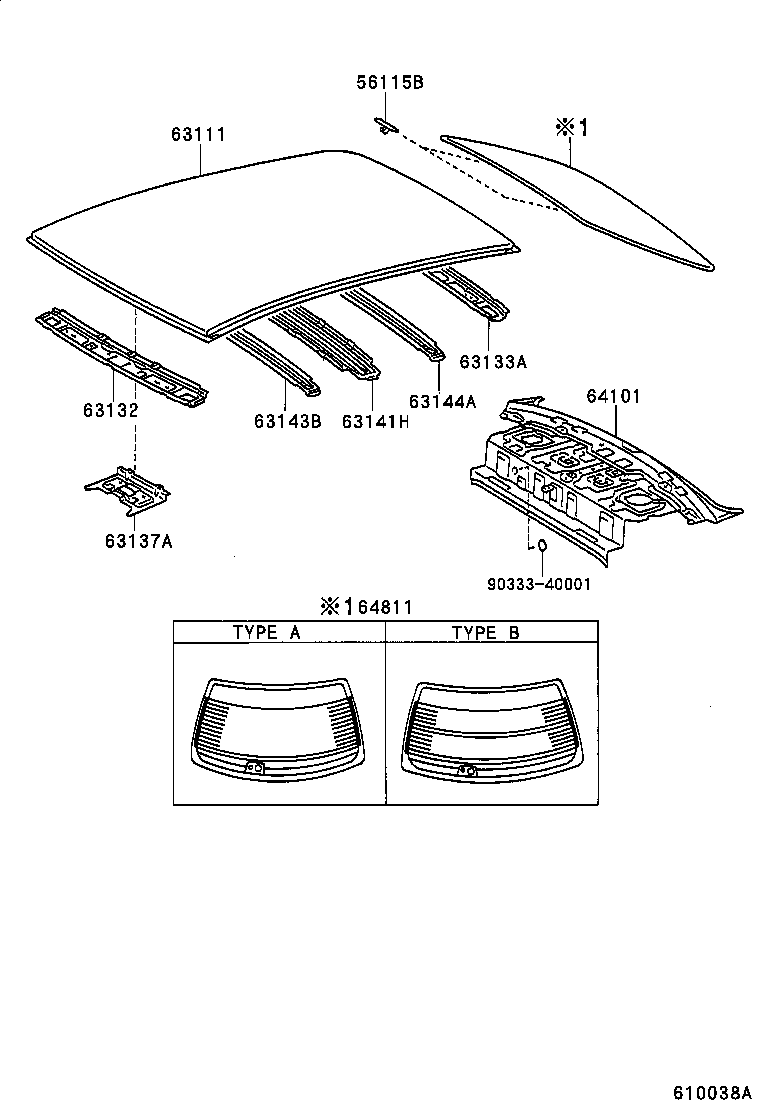

Click highlighted areas on diagram

diagram 56115B 63111 63132 63133A 63137A 63141H 63143B 63144A 64101 64811 9033340001
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-35050

AT21#,CT21#,ST215

 2
63111 - PANEL, ROOF
63111-20600

AT21#,CT21#,ST215

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-20240

AT21#,CT21#,ST215

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20260

AT21#,CT21#,ST215

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-20090

AT21#,CT21#,ST215

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20220

AT21#,CT21#,ST215

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-20110

AT21#,CT21#,ST215

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-20050

AT21#,CT21#,ST215

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-2B080

AT21#,CT21#,ST215

 1
64101-2B081

AT21#,CT21#,ST215

 1
64811 - GLASS, BACK WINDOW
64811-2D480

AT212,CT210,215

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64811-20969

AT210,212,CT210

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾋﾟｴﾙﾅ & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ﾏｲﾛ-ﾄﾞ & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
64811-2D490

AT210,212,CT210

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾋﾟｴﾙﾅ OR ﾏｲﾛ-ﾄﾞ

 1
64811-20971

AT212,CT210,215

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ),TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90333-40001
