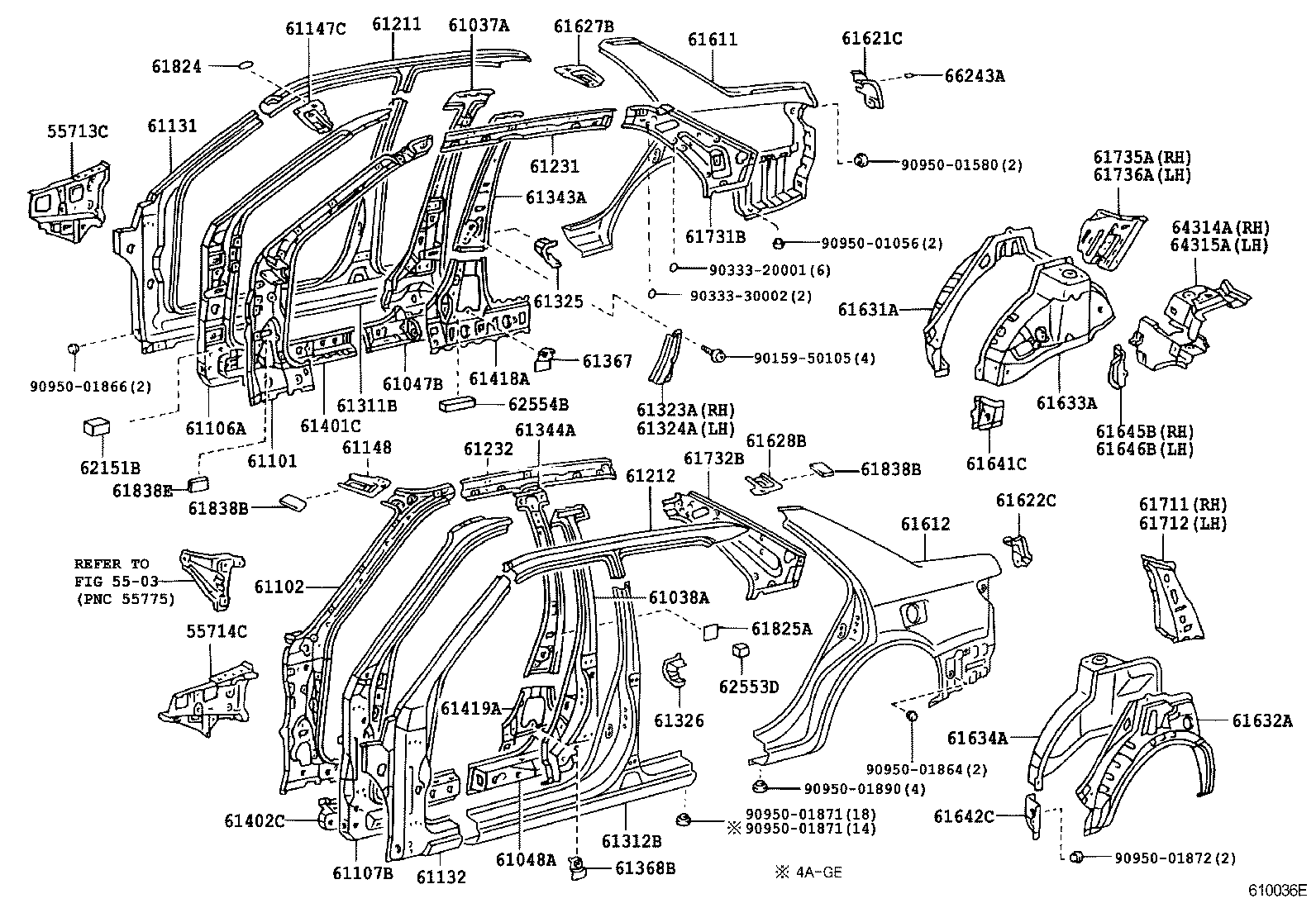

CT210-CEPMX (1996)
Toyota Carina Ff
(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-20900 |
AT21#,CT21#,ST215 |
1 | ||
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-20900 |
AT21#,CT21#,ST215 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-20051 |
AT21#,CT21#,ST215 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-20051 |
AT21#,CT21#,ST215 |
1 | ||
| 61047B - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH | ||||
| 61047-20010 |
AT21#,CT21#,ST215 |
1 | ||
| 61048A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH | ||||
| 61048-20010 |
AT21#,CT21#,ST215 |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61013-20120 |
AT21#,CT21#,ST215 |
1 | ||
| 61013-20121 |
AT21#,CT21#,ST215 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61014-20120 |
AT21#,CT21#,ST215 |
1 | ||
| 61014-20121 |
AT21#,CT21#,ST215 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-20230 |
AT21#,CT21#,ST215 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-20220 |
AT21#,CT21#,ST215 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-20510 |
AT211,212,CT21#,ST215 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-20450 |
AT211,212,CT21#,ST215 |
1 | ||
| 61147C - EXTENSION, FRONT BODY PILLAR, OUTER RH | ||||
| 61147-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 61148 - EXTENSION, FRONT BODY PILLAR, OUTER LH | ||||
| 61148-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20300 |
AT210,212,CT21# ｱﾘ(ｱﾝﾃﾅ ｱﾅ) |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20290 |
AT21#,CT21#,ST215 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20470 |
AT21#,CT21#,ST215 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20450 |
AT21#,CT21#,ST215 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-20320 |
AT211,212,CT21#,ST215 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-20390 |
AT211,212,CT21#,ST215 |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61323-20180 |
AT21#,CT21#,ST215 |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61324-20150 |
AT21#,CT21#,ST215 |
1 | ||
| 61325 - REINFORCEMENT, CENTER BODY PILLER, CENTER | ||||
| 61325-20060 |
AT21#,CT21#,ST215 |
1 | ||
| 61325-20070 |
AT21#,CT21#,ST215 |
1 | ||
| 61326 - REINFORCEMENT, CENTER BODY PILLER, CENTER LH | ||||
| 61326-20060 |
AT21#,CT21#,ST215 |
1 | ||
| 61326-20050 |
AT21#,CT21#,ST215 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-20170 |
AT21#,CT21#,ST215 |
1 | ||
| 61343-20171 |
AT21#,CT21#,ST215 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-20170 |
AT21#,CT21#,ST215 |
1 | ||
| 61344-20171 |
AT21#,CT21#,ST215 |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 61368B - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH | ||||
| 61368-20050 |
AT21#,CT21#,ST215 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-20400 |
AT21#,CT21#,ST215 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-20400 |
AT21#,CT21#,ST215 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-20160 |
AT21#,CT21#,ST215 |
1 | ||
| 61418-20161 |
AT21#,CT21#,ST215 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-20140 |
AT21#,CT21#,ST215 |
1 | ||
| 61419-20141 |
AT21#,CT21#,ST215 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2D080 |
AT211,212,CT21#,ST215 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-2D430 |
AT211,212,CT21#,ST215 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-20250 |
AT21#,CT21#,ST215 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-20250 |
AT21#,CT21#,ST215 |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-20170 |
AT21#,CT21#,ST215 |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-20190 |
AT21#,CT21#,ST215 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20300 |
AT21#,CT21#,ST215 |
1 | ||
| 61631-20310 |
AT21#,CT21#,ST215 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20310 |
AT21#,CT21#,ST215 |
1 | ||
| 61632-20300 |
AT21#,CT21#,ST215 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-20680 |
AT21#,CT21#,ST215 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-20670 |
AT21#,CT21#,ST215 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-20110 |
AT21#,CT21#,ST215 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-20120 |
AT21#,CT21#,ST215 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-20150 |
AT21#,CT21#,ST215 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-20150 |
AT21#,CT21#,ST215 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-20180 |
AT21#,CT21#,ST215 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-20180 |
AT21#,CT21#,ST215 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-20341 |
AT21#,CT21#,ST215 |
1 | ||
| 61731-20340 |
AT21#,CT21#,ST215 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-20340 |
AT21#,CT21#,ST215 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20260 |
AT21#,CT21#,ST215 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20240 |
AT21#,CT21#,ST215 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20120 |
AT21#,CT21#,ST215 |
2 | ||
| 61824-20140 |
AT21#,CT21#,ST215 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-20180 |
AT21#,CT21#,ST215 |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20050 |
AT21#,CT21#,ST215 |
4 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20050 |
AT21#,CT21#,ST215 |
4 | ||
| 61838E - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20050 |
AT210,212,CT21# |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 55783-20170 |
AT21#,CT21#,ST215 |
4 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62552-20220 |
AT21#,CT21#,ST215 ｾﾝﾀﾋﾟﾗｰ |
2 | ||
| 62553-20080 |
AT21#,CT21#,ST215 ﾙ-ﾌ ｻｲﾄﾞ ｲﾝﾅ |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-20080 |
AT21#,CT21#,ST215 |
2 | ||
| 64314A - REINFORCEMENT, PACKAGE TRAY BRACKET, RH | ||||
| 64304-20070 |
AT21#,CT21#,ST215 |
1 | ||
| 64315A - REINFORCEMENT, PACKAGE TRAY BRACKET, LH | ||||
| 64305-20060 |
AT21#,CT21#,ST215 |
1 | ||
| 66243A - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AT21#,CT21#,ST215 |
2 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90950-01056 | ||||
| 90950-01580 | ||||
| 90950-01864 | ||||
| 90950-01866 | ||||
| 90950-01871 | ||||
| 90950-01872 | ||||
| 90950-01890 | ||||
| Linked diagrams | ||||
| 5503 | ||||
