CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

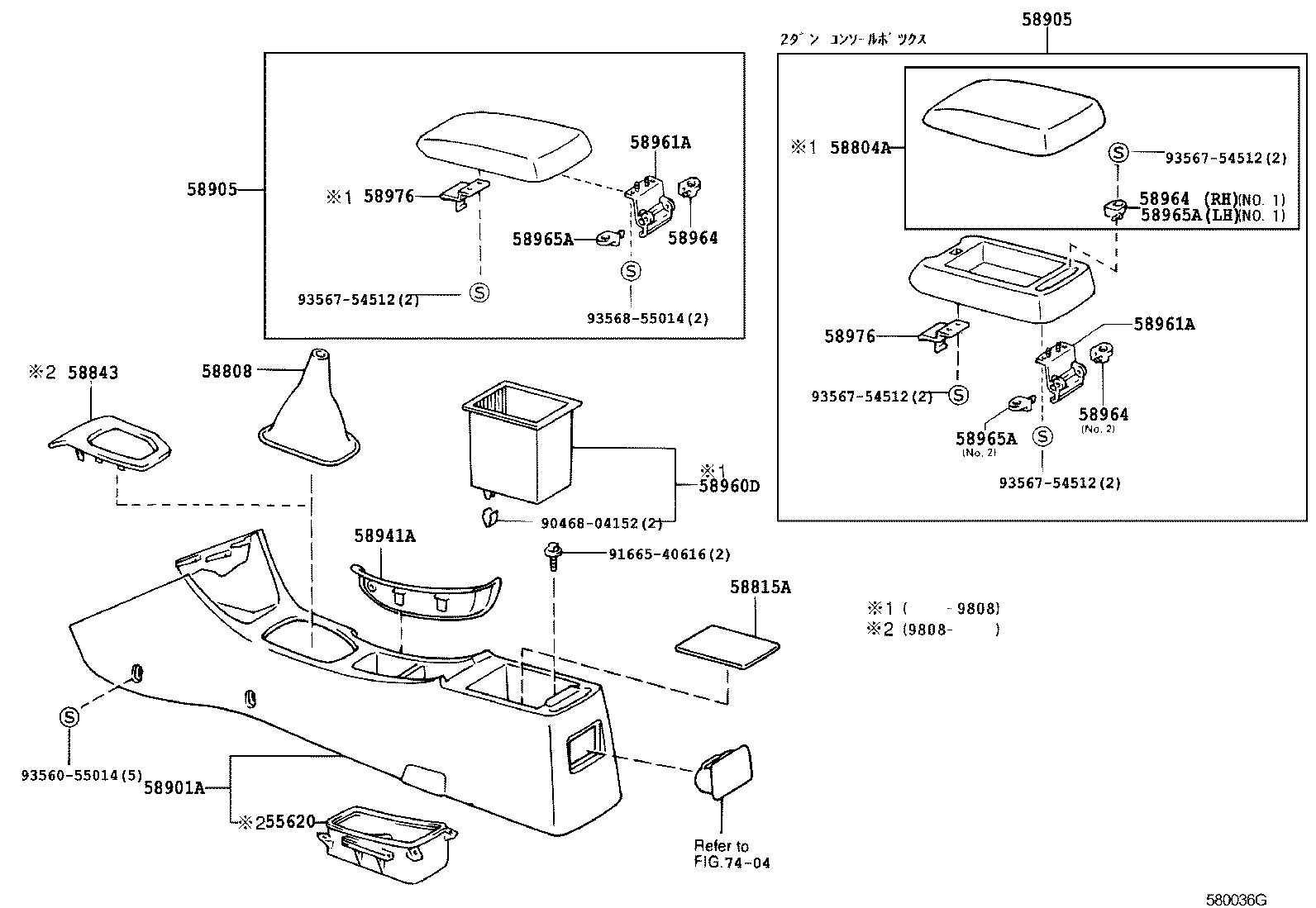

Click highlighted areas on diagram

diagram 55620 58804A 58808 58815A 58843 58901A 58905 58905 58941A 58960D 58961A 58961A 58964 58964 58964 58965A 58965A 58965A 58976 58976 7404 9046804152 9166540616 9356055014 9356754512 9356754512 9356754512 9356754512 9356855014
Part # Description Qty Price
58815A - CARPET, CONSOLE BOX
58815-20060

AT21#,CT21#,ST215

 1
58815-21010

AT21#,CT21#,ST215

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-20140B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
58901-20140E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20250E0

AT212,CT21#

ANTELOPE,TRIM4#

 1
58905-20250B0

AT210,212,CT21#

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20250E0

AT212,CT21#

ANTELOPE,TRIM4#

 1
58905-20250B0

AT210,212,CT21#

SHADOW GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58904-20050B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
58904-20050E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-20030

AT21#,CT21#,ST215

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-20030

AT21#,CT21#,ST215

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT211,212,CT210,ST215

BLACK,TRIM1#,4#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT211,212,CT210,ST215

BLACK,TRIM1#,4#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT211,212,CT210,ST215

BLACK,TRIM1#,4#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT211,212,CT210,ST215

BLACK,TRIM1#,4#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT211,212,CT210,ST215

BLACK,TRIM1#,4#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT211,212,CT210,ST215

BLACK,TRIM1#,4#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT21#,CT21#,ST215

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT21#,CT21#,ST215

 1
Common parts
90468-04152
91665-40616
93560-55014
93567-54512
93568-55014
Linked diagrams
7404
