CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

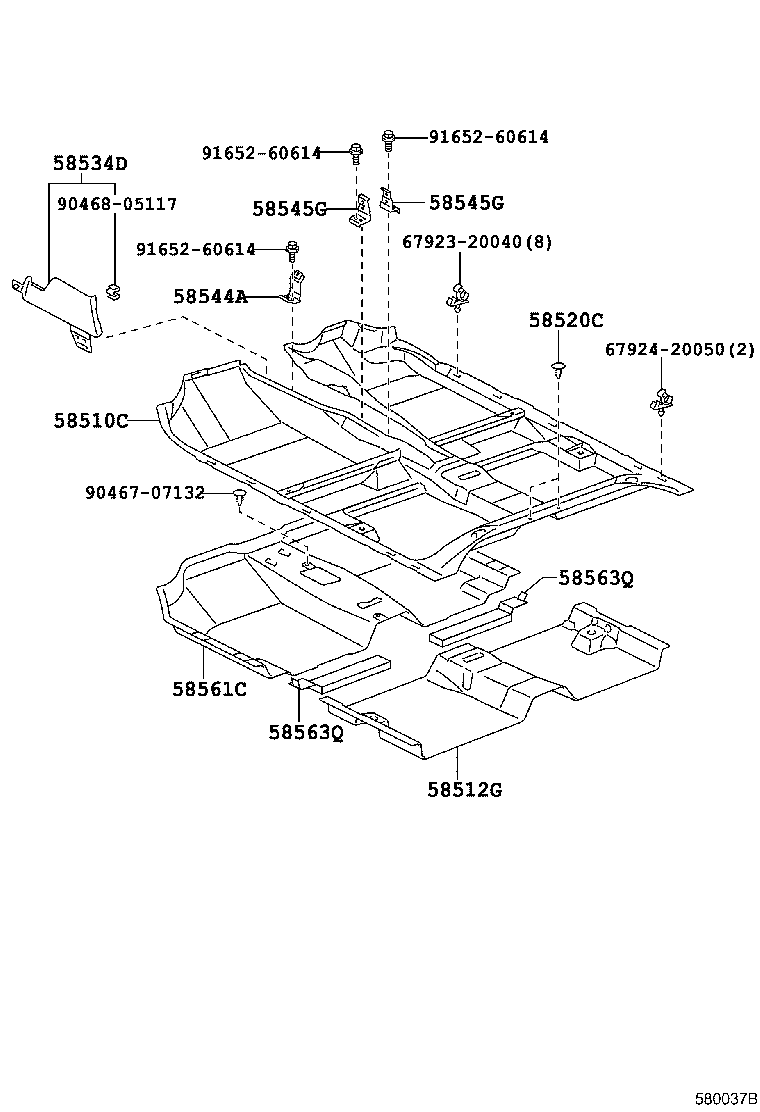

Click highlighted areas on diagram

diagram 58510C 58512G 58520C 58534D 58544A 58545G 58545G 58561C 58563Q 58563Q 6792320040 6792420050 9046707132 9046805117 9165260614 9165260614 9165260614
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2D880B0

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔﾋ-ﾀ),BLUISH GRAY,TRIM1#

 1
58510-2D870B0

AT21#,CT21#,ST215

BLUISH GRAY,TRIM1#

 1
58510-2D880E0

AT211,212,CT21#,ST215

ｱﾘ(ﾘﾔﾋ-ﾀ),ANTELOPE,TRIM4#

 1
58510-2D870E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-20280

AT21#,CT21#,ST215

 1
58512-20290

AT21#,CT21#,ST215

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 2
58534D - COVER, FLOOR CARPET, CENTER LH
58534-20020B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
58534-20020E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-20060

AT21#,CT21#,ST215

 1
58545G - BRACKET, FLOOR CARPET, NO.2 RH
58545-20030

AT21#,CT21#,ST215

 2
58545G - BRACKET, FLOOR CARPET, NO.2 RH
58545-20030

AT21#,CT21#,ST215

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-20010

AT21#,CT21#,ST215

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-20020

AT21#,CT21#,ST215

 2
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-20020

AT21#,CT21#,ST215

 2
Common parts
67923-20040
67924-20050
90467-07132
90468-05117
91652-60614
