CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

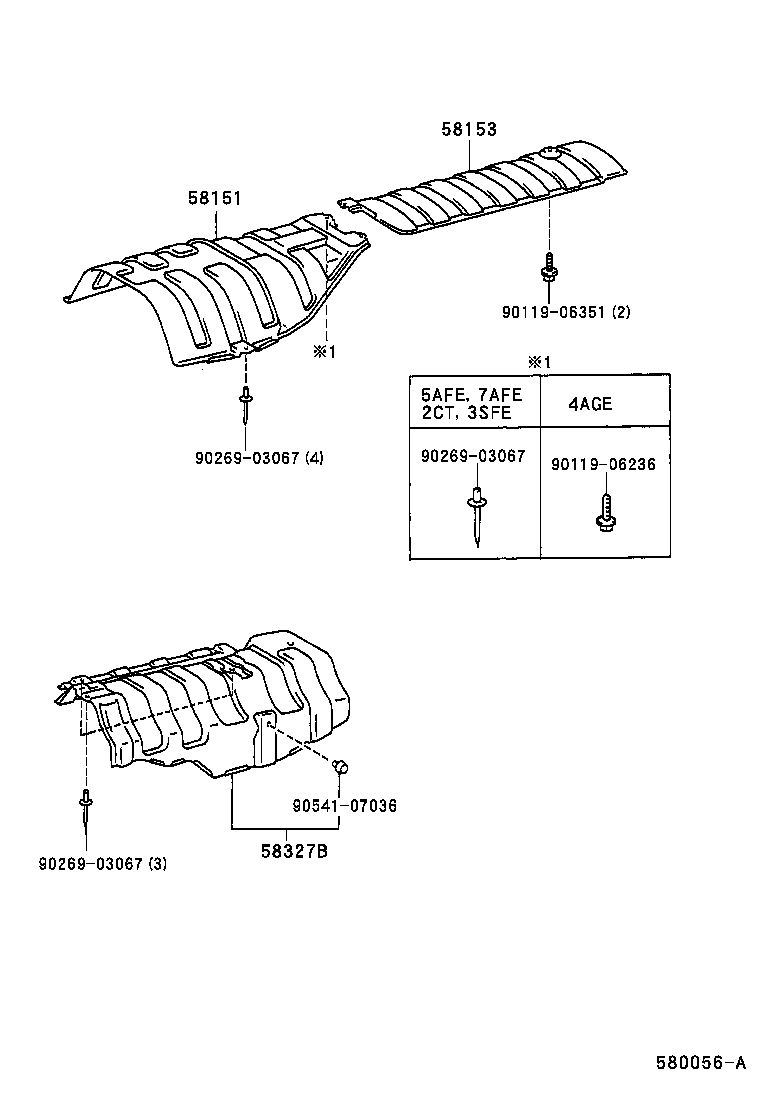

diagram 58151 58153 58327B 9011906236 9011906351 9026903067 9026903067 9026903067 9054107036
Part # Description Qty Price
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-20080

AT21#,CT21#,ST215

 1
Common parts
90119-06236
90119-06351
90269-03067
90541-07036
