CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

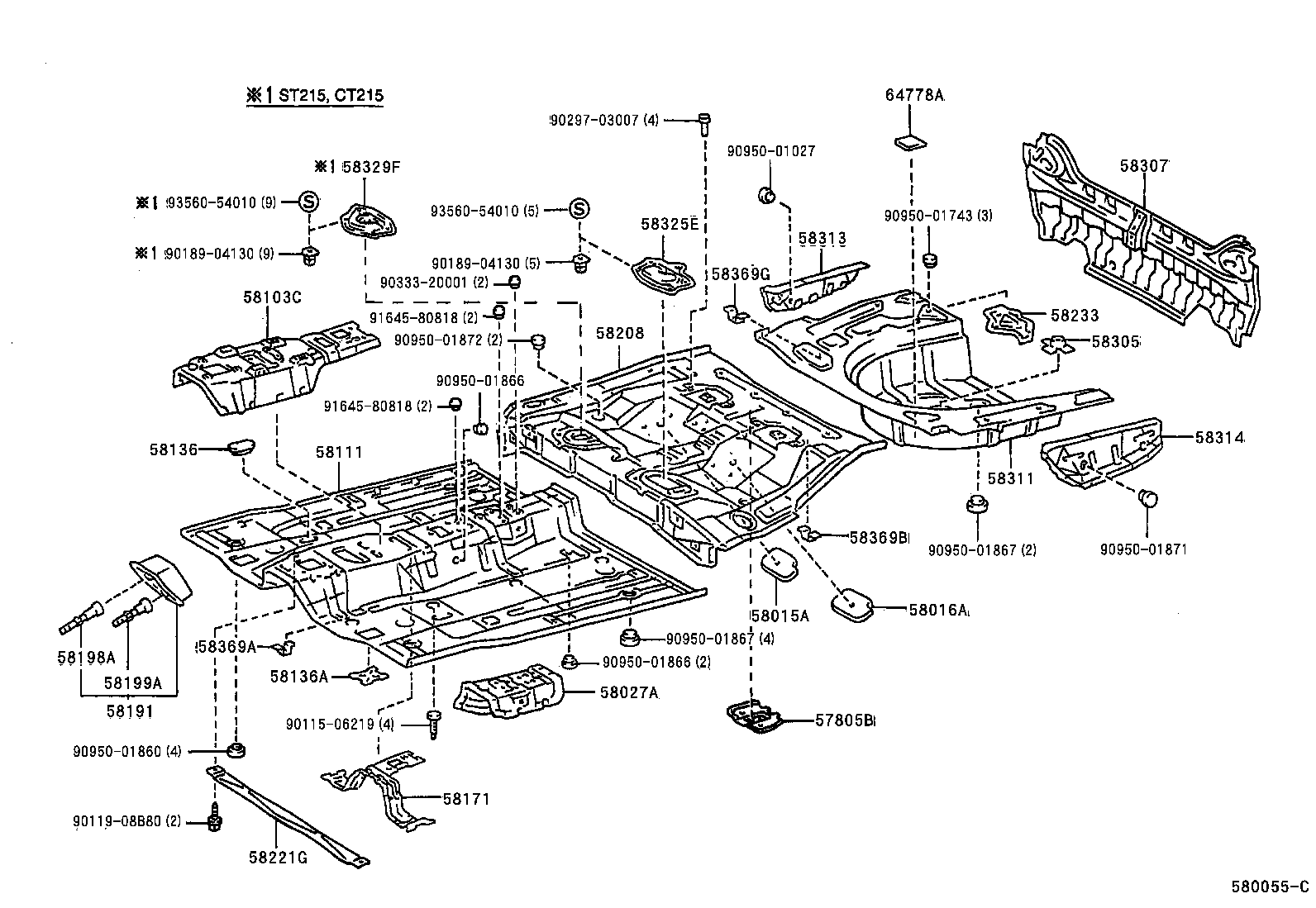

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-20100 |
AT21#,CT21#,ST215 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-20160 |
AT21#,CT210 |
1 | ||
| 58027-20210 |
AT21#,CT210,211 |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-20063 |
AT21#,CT21#,ST215 |
1 | ||
| 58103-20061 |
AT21#,CT21#,ST215 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-20180 |
AT21#,CT21#,ST215 |
1 | ||
| 58111-20181 |
AT21#,CT21#,ST215 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-33010 |
AT21#,CT21#,ST215 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-20020 |
AT21#,CT21#,ST215 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-20150 |
AT210,CT210,211 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-20170 |
AT21#,CT21#,ST215 |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58198-20180 |
AT21#,CT21#,ST215 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-20421 |
AT21#,CT210 |
1 | ||
| 58211-20420 |
AT21#,CT210 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-20090 |
AT21#,CT21#,ST215 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-2B270 |
AT21#,CT21#,ST215 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-20320 |
AT21#,CT21#,ST215 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-20370 |
AT21#,CT21#,ST215 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-32030 |
AT21#,CT21#,ST215 |
1 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20020 |
AT21#,CT210,211 |
2 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
AT21#,CT21#,ST215 |
4 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20020 |
AT21#,CT21#,ST215 |
2 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 90119-08B80 | ||||
| 90189-04130 | ||||
| 90297-03007 | ||||
| 90333-20001 | ||||
| 90950-01027 | ||||
| 90950-01743 | ||||
| 90950-01860 | ||||
| 90950-01866 | ||||
| 90950-01867 | ||||
| 90950-01871 | ||||
| 90950-01872 | ||||
| 91645-80818 | ||||
| 93560-54010 | ||||
