CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

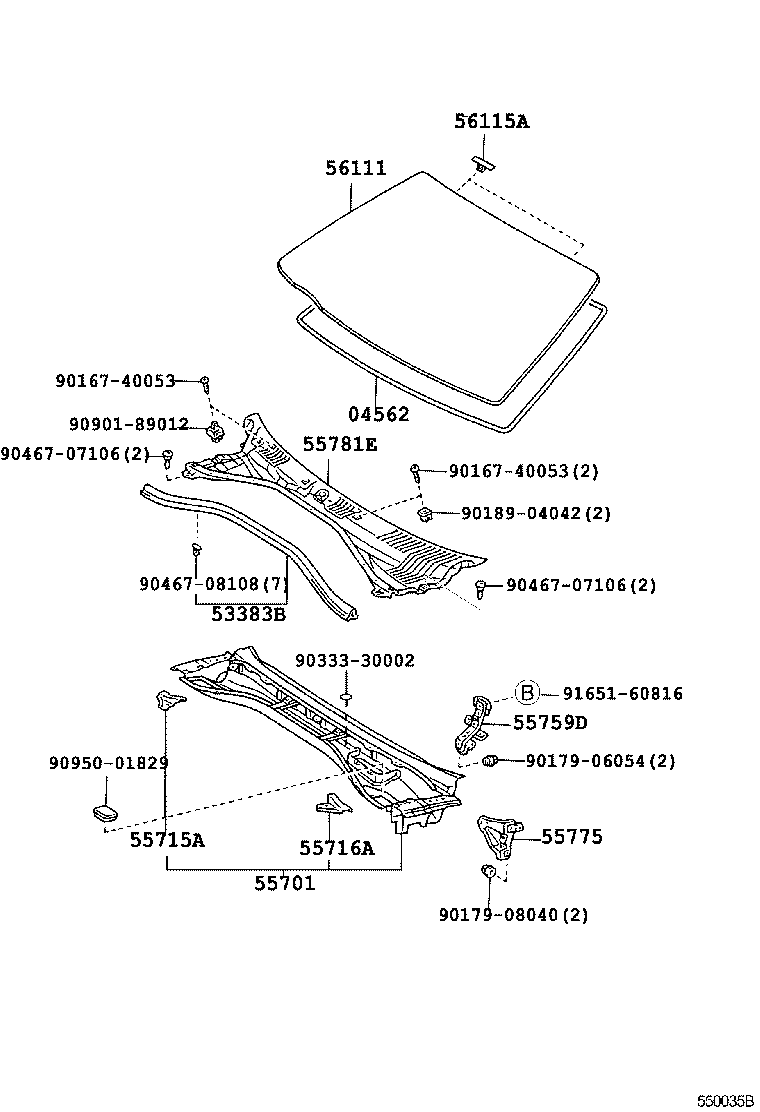

Click highlighted areas on diagram

diagram 04562 53383B 55701 55715A 55716A 55759D 55775 55781E 56111 56115A 9016740053 9016740053 9017906054 9017908040 9018904042 9033330002 9046707106 9046707106 9046708108 9090189012 9095001829 9165160816
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AT21#,CT21#,ST215

 1
53383B - SEAL, HOOD TO COWL TOP
53383-20180

AT21#,CT21#,ST215

 1
55701 - PANEL SUB-ASSY, COWL
55700-2B080

CT21#

 1
55700-2B151

CT21#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-20120

AT21#,CT21#,ST215

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-20090

AT21#,CT21#,ST215

 1
55759D - BRACKET, COWL TOP INNER STAY MOUNTING
55759-20070

AT21#,CT21#,ST215

 1
55775 - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55775-20080

AT21#,CT21#,ST215

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-20230

AT21#,CT21#,ST215

 1
56111 - GLASS, WINDSHIELD
56111-2B640

AT21#,CT21#,ST215

*TL,T=4.7,ｸﾞﾘｰﾝ

 1
56111-2B650

AT21#,CT21#,ST215

*EHTL,T=4.7,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56116-35050

AT21#,CT21#,ST215

 2
Common parts
90167-40053
90179-06054
90179-08040
90189-04042
90333-30002
90467-07106
90467-08108
90901-89012
90950-01829
91651-60816
