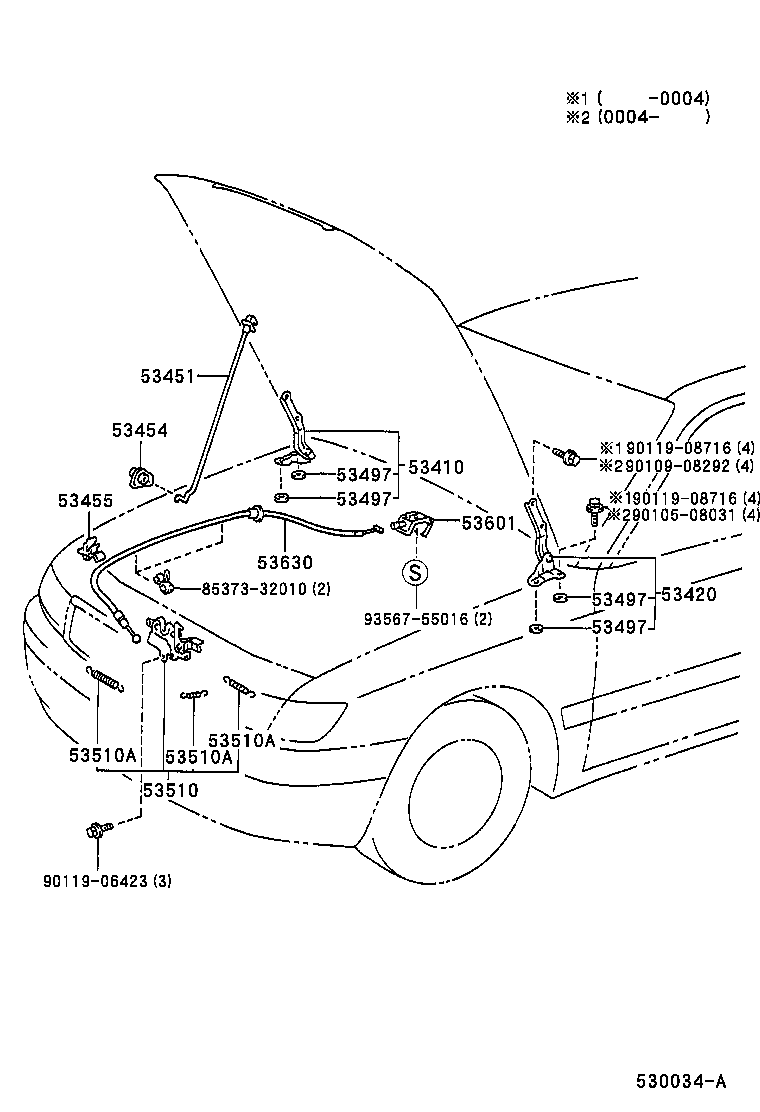

CT210-CEPMX (1996)
Toyota Carina Ff
(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20210 |
AT21#,CT21#,ST215 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20200 |
AT21#,CT21#,ST215 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-20030 |
AT21#,CT21#,ST215 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-16010 |
AT21#,CT21#,ST215 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-20070 |
AT21#,CT21#,ST215 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
AT21#,CT21#,ST215 厚さ=1.0 |
4 | ||
| 53498-16020 |
AT21#,CT21#,ST215 19 X 23 |
1 | ||
| 53497-16020 |
AT21#,CT21#,ST215 外径=19 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
AT21#,CT21#,ST215 厚さ=1.0 |
4 | ||
| 53498-16020 |
AT21#,CT21#,ST215 19 X 23 |
1 | ||
| 53497-16020 |
AT21#,CT21#,ST215 外径=19 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
AT21#,CT21#,ST215 厚さ=1.0 |
4 | ||
| 53498-16020 |
AT21#,CT21#,ST215 19 X 23 |
1 | ||
| 53497-16020 |
AT21#,CT21#,ST215 外径=19 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
AT21#,CT21#,ST215 厚さ=1.0 |
4 | ||
| 53498-16020 |
AT21#,CT21#,ST215 19 X 23 |
1 | ||
| 53497-16020 |
AT21#,CT21#,ST215 外径=19 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20460 |
AT21#,CT21#,ST215 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23046 |
AT21#,CT21#,ST215 外径=17,ｺｲﾙ巻数=16 |
1 | ||
| 90506-09057 |
AT21#,CT21#,ST215 線径=0.9,ｺｲﾙ巻数=23 |
1 | ||
| 90506-12067 |
AT21#,CT21#,ST215 線径=1.4,ｺｲﾙ巻数=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23046 |
AT21#,CT21#,ST215 外径=17,ｺｲﾙ巻数=16 |
1 | ||
| 90506-09057 |
AT21#,CT21#,ST215 線径=0.9,ｺｲﾙ巻数=23 |
1 | ||
| 90506-12067 |
AT21#,CT21#,ST215 線径=1.4,ｺｲﾙ巻数=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23046 |
AT21#,CT21#,ST215 外径=17,ｺｲﾙ巻数=16 |
1 | ||
| 90506-09057 |
AT21#,CT21#,ST215 線径=0.9,ｺｲﾙ巻数=23 |
1 | ||
| 90506-12067 |
AT21#,CT21#,ST215 線径=1.4,ｺｲﾙ巻数=7.25 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-1602022 |
AT211,212,CT21#,ST215 BLACK,TRIM1#,4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20570 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 85373-32010 | ||||
| 90105-08031 | ||||
| 90109-08292 | ||||
| 90119-06423 | ||||
| 90119-08716 | ||||
| 93567-55016 | ||||
