CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

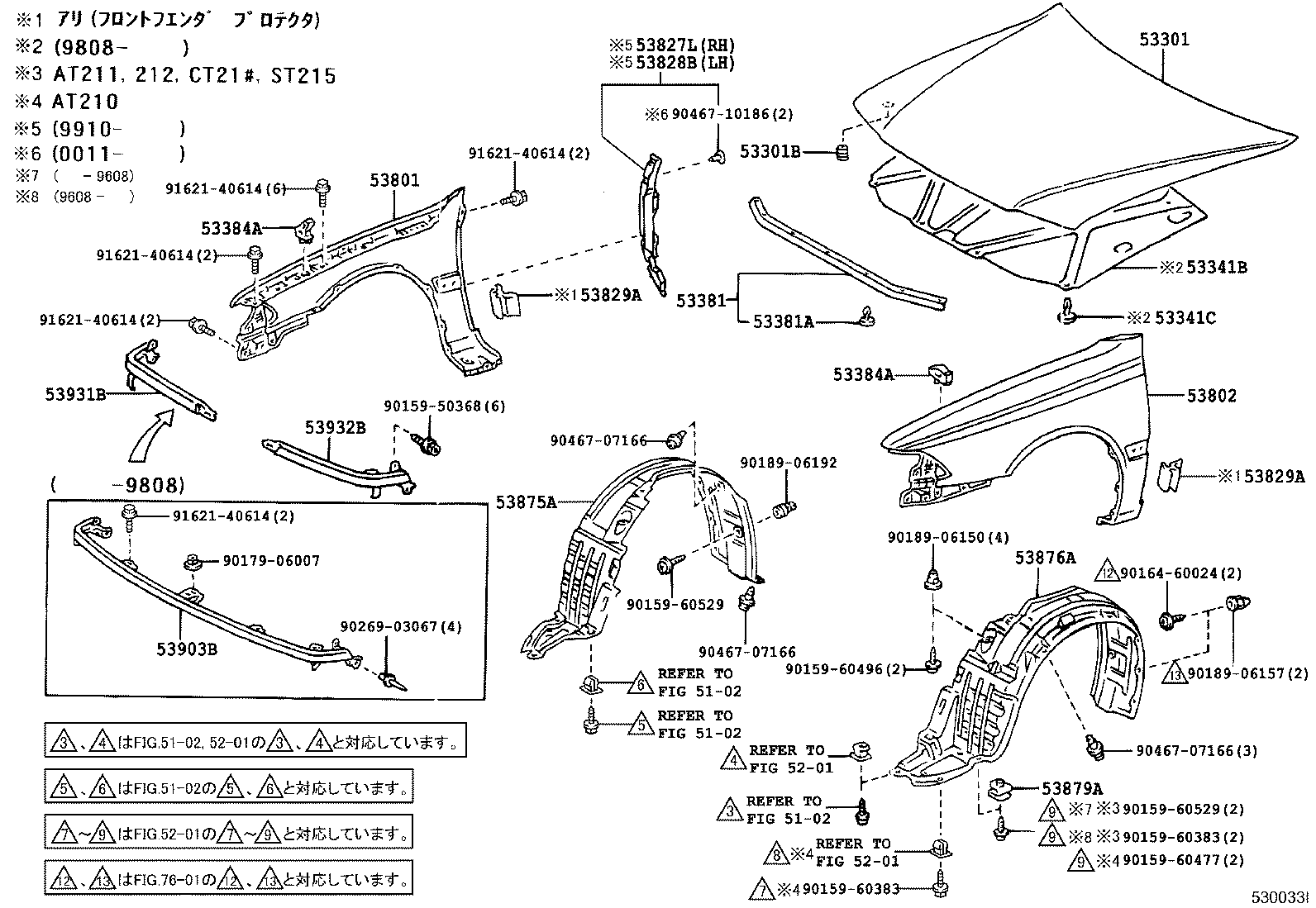

Click highlighted areas on diagram

diagram 5102 5102 5102 5201 5201 53301 53301B 53341B 53341C 53381 53381A 53384A 53384A 53801 53802 53827L 53828B 53829A 53829A 53875A 53876A 53879A 53903B 53931B 53932B 9015950368 9015960383 9015960383 9015960477 9015960496 9015960529 9015960529 9016460024 9017906007 9018906150 9018906157 9018906192 9026903067 9046707166 9046707166 9046707166 9046710186 9162140614 9162140614 9162140614 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-20570

AT21#,CT21#,ST215

 1
53301-20571

AT21#,CT21#,ST215

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

AT21#,CT21#,ST215

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20130

AT21#,CT21#,ST215

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AT21#,CT21#,ST215

 7
53384A - BUMPER, FENDER TO HOOD
53384-20060

AT21#,CT21#,ST215

右側

 1
53384-20080

AT21#,CT21#,ST215

左側

 1
53384A - BUMPER, FENDER TO HOOD
53384-20060

AT21#,CT21#,ST215

右側

 1
53384-20080

AT21#,CT21#,ST215

左側

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-2B800

AT21#,CT21#,ST215

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-2B790

AT21#,CT21#,ST215

 1
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-16010

AT21#,CT21#,ST215

 2
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-16010

AT21#,CT21#,ST215

 2
53875A - LINER, FRONT FENDER, RH
53875-20330

AT21#,CT21#,ST215

 1
53876A - LINER, FRONT FENDER, LH
53876-20340

AT21#,CT21#,ST215

 1
53879A - RETAINER, FRONT FENDER LINER
53879-16010

AT21#,CT21#,ST215

 2
53903B - PANEL SUB-ASSY, FRONT END
53903-20030

AT21#,CT21#,ST215

 1
Common parts
90159-50368
90159-60383
90159-60477
90159-60496
90159-60529
90164-60024
90179-06007
90189-06150
90189-06157
90189-06192
90269-03067
90467-07166
90467-10186
91621-40614
Linked diagrams
5102
5201
