CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

Click highlighted areas on diagram

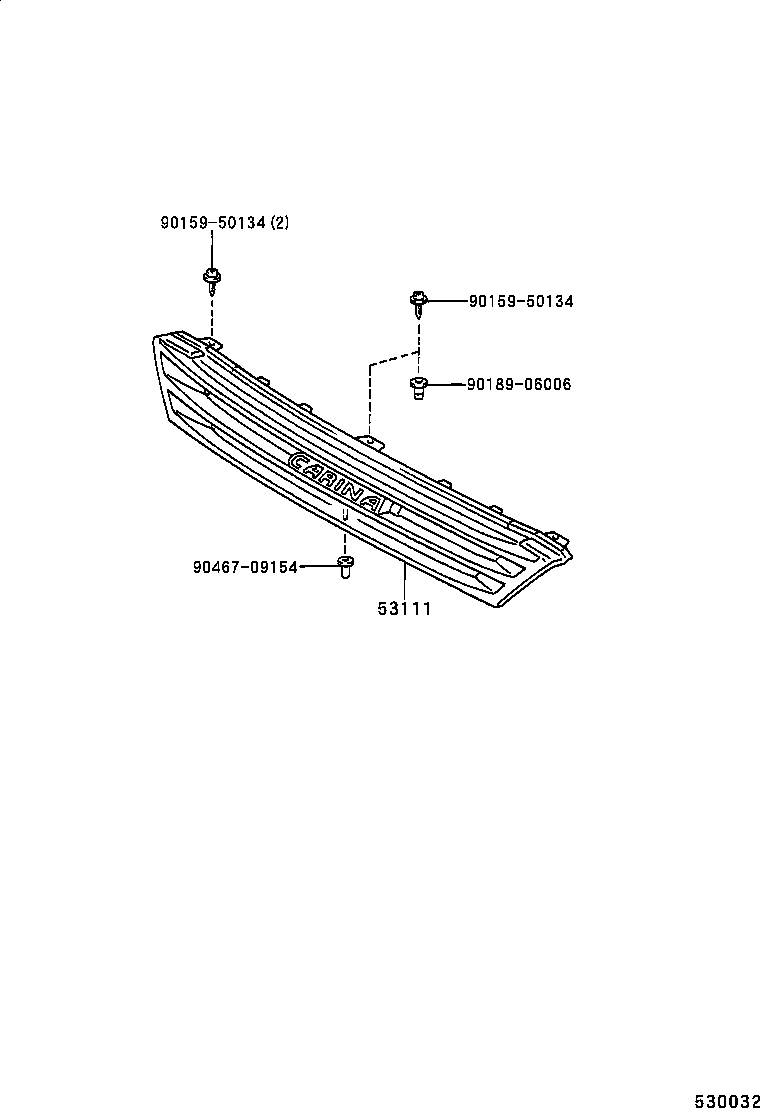

diagram 53111 9015950134 9015950134 9018906006 9046709154
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-20860B1

AT21#,CT21#,ST215

SILVER ME,199

 1
53111-20860A0

AT21#,CT21#,ST215

SUPER WHITE 2,040

 1
53111-20860K0

AT21#,CT21#,ST215

LAVENDER M.M.,925

 1
53111-20860J0

AT21#,CT21#,ST215

DK.BLUE M.M.,8L2

 1
53111-20860G0

AT21#,CT21#,ST215

DK.GREEN M.M.,6P2

 1
53111-20860G1

AT21#,CT21#,ST215

LT.GREEN ME.OP.,6P7

 1
Common parts
90159-50134
90189-06006
90467-09154
