CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

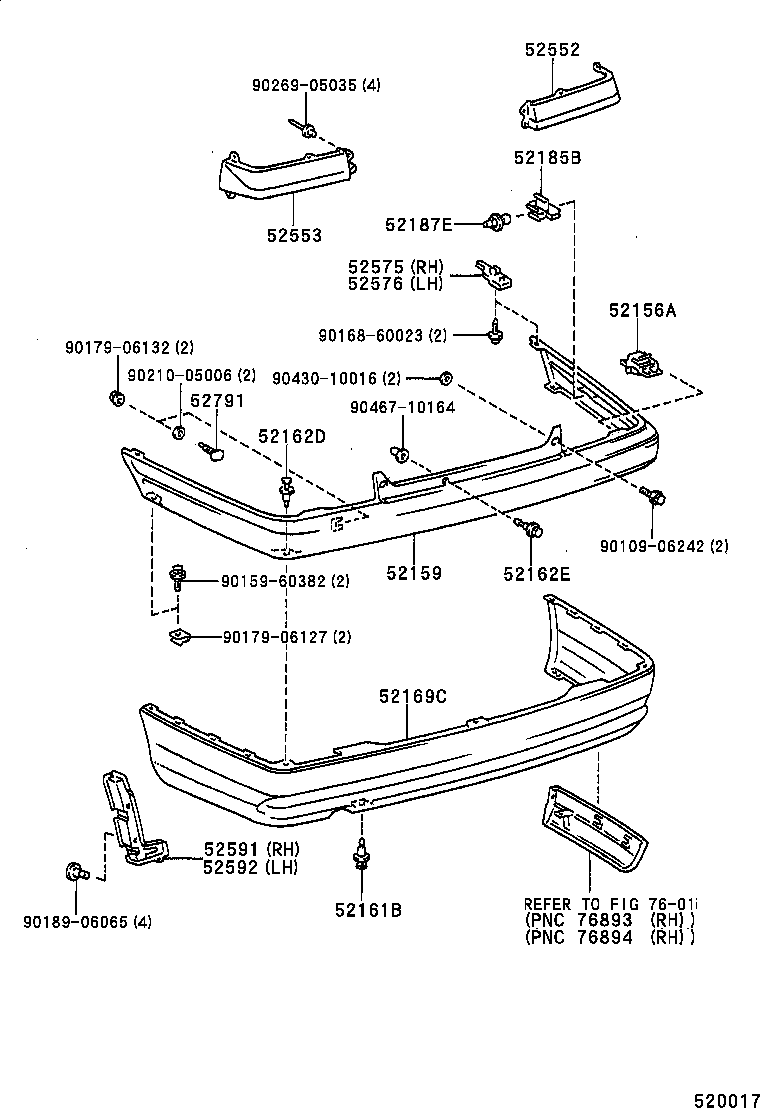

Click highlighted areas on diagram

diagram 52156A 52159 52161B 52162D 52162E 52169C 52185B 52187E 52552 52553 52575 52576 52591 52592 52791 7601 9010906242 9015960382 9016860023 9017906127 9017906132 9018906065 9021005006 9026905035 9043010016 9046710164
Part # Description Qty Price
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-20220

AT21#,CT21#,ST215

 2
52159 - COVER, REAR BUMPER
52159-20830B0

AT21#,CT21#,ST215

BL.GRAY ME,199 ,6P7 ,925

 1
52159-20830E0

AT21#,CT21#,ST215

GRAYISH BROWN ME.,040

 1
52159-20830E1

AT21#,CT21#,ST215

DK. GRAY ME.,6P2 ,8L2

 1
52159-20820

AT212,CT21#

ﾄｿｳ ﾅｼ

 1
52161B - PIECE, REAR BUMPER
52161-16010

AT21#,CT21#,ST215

 4
52162D - PIECE, REAR BUMPER
52161-20010

AT21#,CT21#,ST215

 3
52162E - PIECE, REAR BUMPER
52162-20040

AT21#,CT21#,ST215

 1
52169C - COVER, REAR BUMPER, LOWER
52169-20060A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
52169-20060J0

AT211,212,CT21#,ST215

DK.BLUE M.M.,8L2

 1
52169-20060K0

AT211,212,CT21#,ST215

LAVENDER M.M.,925

 1
52169-20060B1

AT211,212,CT21#,ST215

SILVER ME,199

 1
52169-20060G0

AT211,212,CT21#,ST215

DK.GREEN M.M.,6P2

 1
52169-20060G1

AT211,212,CT21#,ST215

LT.GREEN ME.OP.,6P7

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-20160

AT21#,CT21#,ST215

 2
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070

AT21#,CT21#,ST215

 2
52552 - FILLER, REAR BUMPER, RH
52552-20050

AT21#,CT21#,ST215

 1
52553 - FILLER, REAR BUMPER, LH
52553-20050

AT21#,CT21#,ST215

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20030

AT21#,CT21#,ST215

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20030

AT21#,CT21#,ST215

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-20040

AT21#,CT21#,ST215

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-20020

AT21#,CT21#,ST215

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12010

AT21#,CT21#,ST215

 2
Common parts
90109-06242
90159-60382
90168-60023
90179-06127
90179-06132
90189-06065
90210-05006
90269-05035
90430-10016
90467-10164
Linked diagrams
7601
