CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

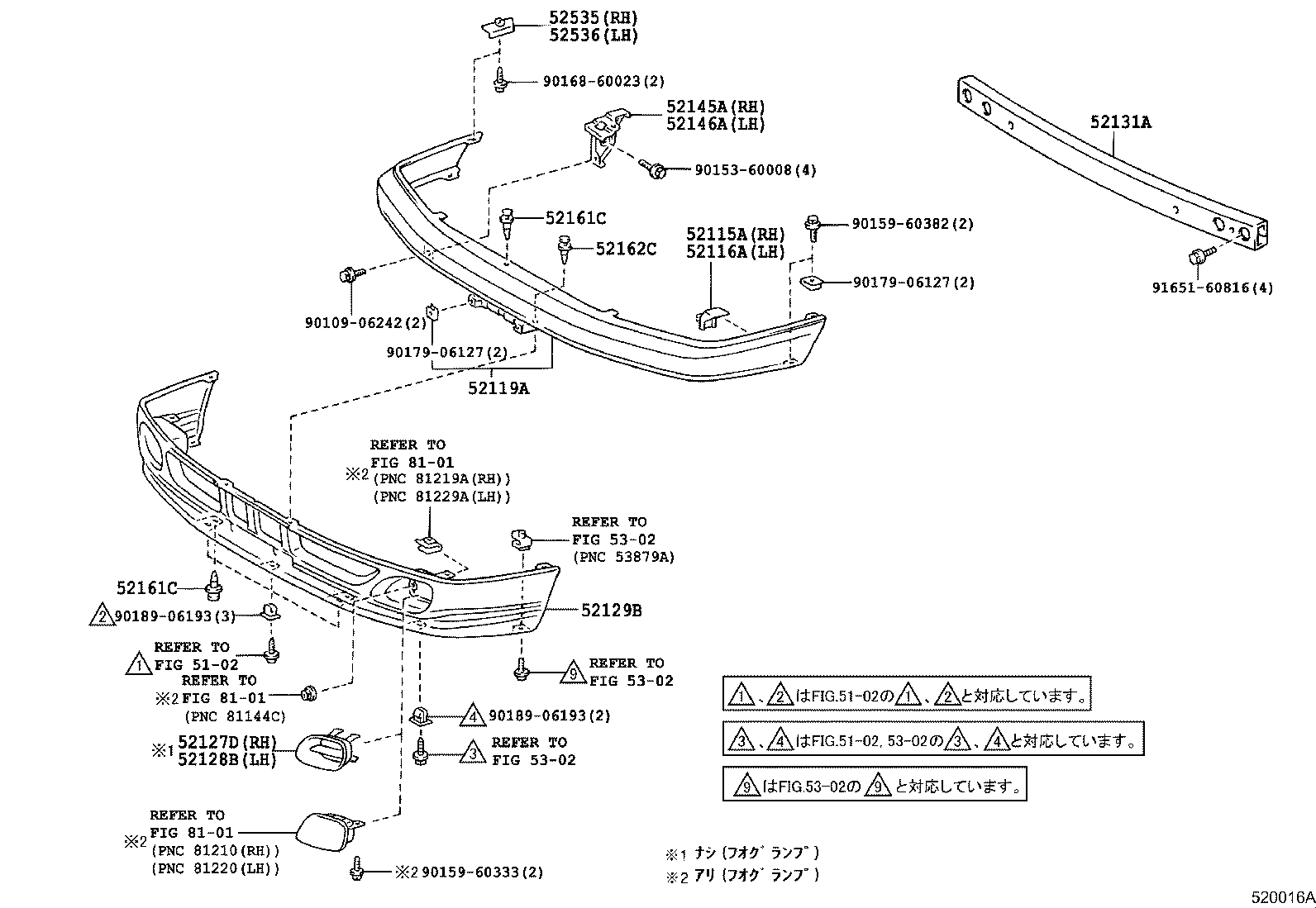

Click highlighted areas on diagram

diagram 5102 52115A 52116A 52119A 52127D 52128B 52129B 52131A 52145A 52146A 52161C 52161C 52162C 52535 52536 5302 5302 5302 8101 8101 8101 9010906242 9015360008 9015960333 9015960382 9016860023 9017906127 9017906127 9018906193 9018906193 9165160816
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300

AT21#,CT21#,ST215

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210

AT21#,CT21#,ST215

 1
52119A - COVER, FRONT BUMPER
52119-2B330

AT212,CT21#

ﾄｿｳ ﾅｼ

 1
52119-2B340B0

AT21#,CT21#,ST215

BL.GRAY ME,199 ,6P7 ,925

 1
52119-2B340E1

AT21#,CT21#,ST215

DK. GRAY ME.,6P2 ,8L2

 1
52119-2B340E0

AT21#,CT21#,ST215

GRAYISH BROWN ME.,040

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-20090

AT212,CT21#

ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-20050

AT212,CT21#

ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-20040B1

AT211,212,CT21#,ST215

SILVER ME,199

 1
52129-20040G0

AT211,212,CT21#,ST215

DK.GREEN M.M.,6P2

 1
52129-20040A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
52129-20040J0

AT211,212,CT21#,ST215

DK.BLUE M.M.,8L2

 1
52129-20040G1

AT211,212,CT21#,ST215

LT.GREEN ME.OP.,6P7

 1
52129-20040K0

AT211,212,CT21#,ST215

LAVENDER M.M.,925

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-20260

AT21#,CT21#,ST215

 1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-20180

AT21#,CT21#,ST215

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-20170

AT21#,CT21#,ST215

 1
52161C - PIECE, FRONT BUMPER
52161-16010

AT21#,CT21#,ST215

 3
52161C - PIECE, FRONT BUMPER
52161-16010

AT21#,CT21#,ST215

 3
52162C - PIECE, FRONT BUMPER
52161-20010

AT21#,CT21#,ST215

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050

AT21#,CT21#,ST215

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050

AT21#,CT21#,ST215

 1
Common parts
90109-06242
90153-60008
90159-60333
90159-60382
90168-60023
90179-06127
90189-06193
91651-60816
Linked diagrams
5102
5302
8101
