CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )AT21#,CT210,211

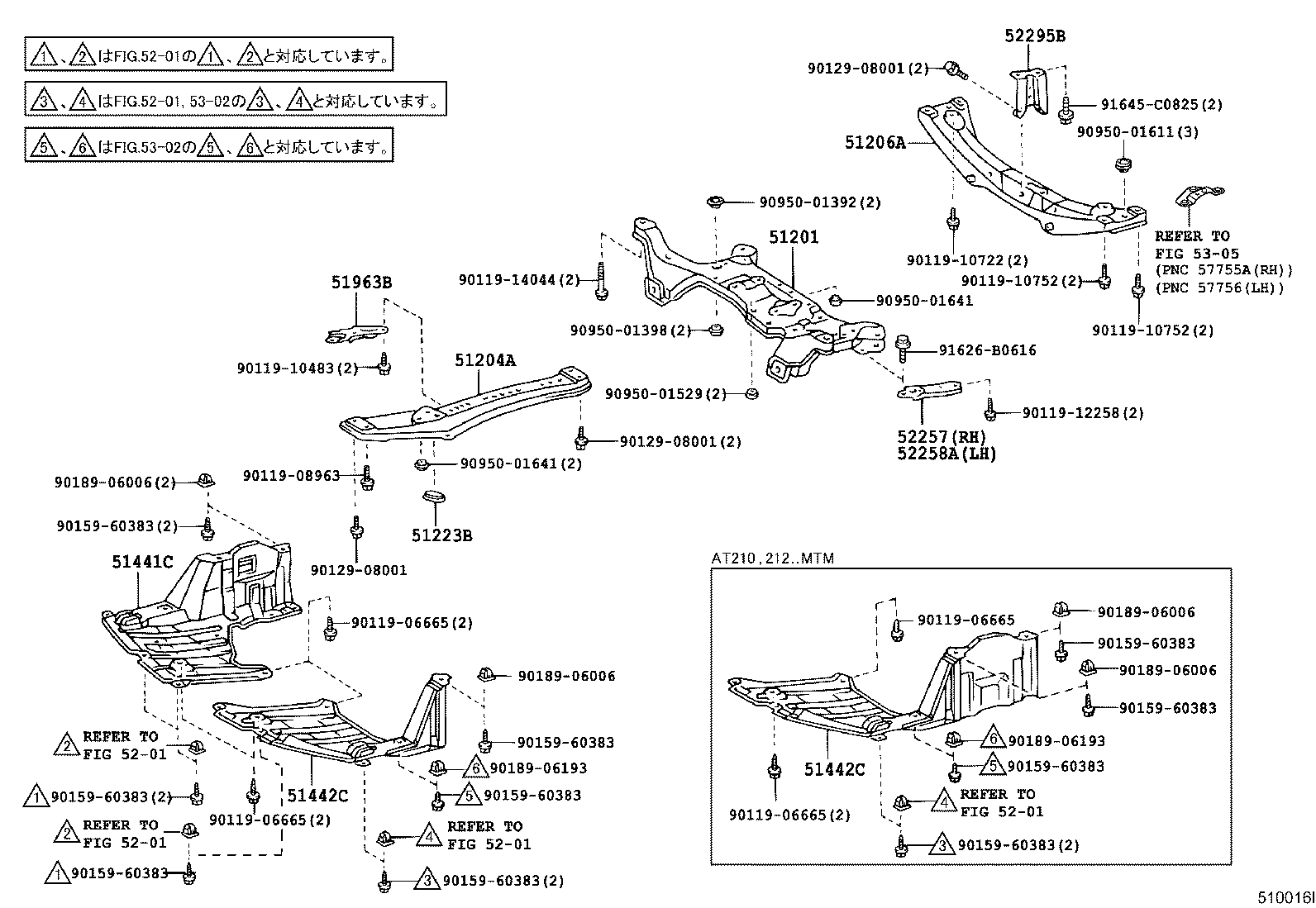

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20320 |
AT21#,CT210,211 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20110 |
AT21#,CT210 |
1 | ||
| 51204-20111 |
AT21#,CT210,211 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-20080 |
AT21#,CT210,211 |
1 | ||
| 51223B - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-20050 |
AT21#,CT21#,ST215 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-20380 |
AT21#,CT21#,ST215 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-20450 |
AT210,212,CT216..4FC;AT211,CT210,211,215,ST215 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-20450 |
AT210,212,CT216..4FC;AT211,CT210,211,215,ST215 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-20010 |
AT21#,CT210,211 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-20010 |
AT21#,CT210,211 |
1 | ||
| 52295B - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-20030 |
AT21#,CT210,211 |
1 | ||
| Common parts | ||||
| 90119-06665 | ||||
| 90119-08963 | ||||
| 90119-10483 | ||||
| 90119-10722 | ||||
| 90119-10752 | ||||
| 90119-12258 | ||||
| 90119-14044 | ||||
| 90129-08001 | ||||
| 90159-60383 | ||||
| 90189-06006 | ||||
| 90189-06193 | ||||
| 90950-01392 | ||||
| 90950-01398 | ||||
| 90950-01529 | ||||
| 90950-01611 | ||||
| 90950-01641 | ||||
| 91626-B0616 | ||||
| 91645-C0825 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5305 | ||||
