CT210-CEPMX (1996)
Toyota Carina Ff
(9608- )

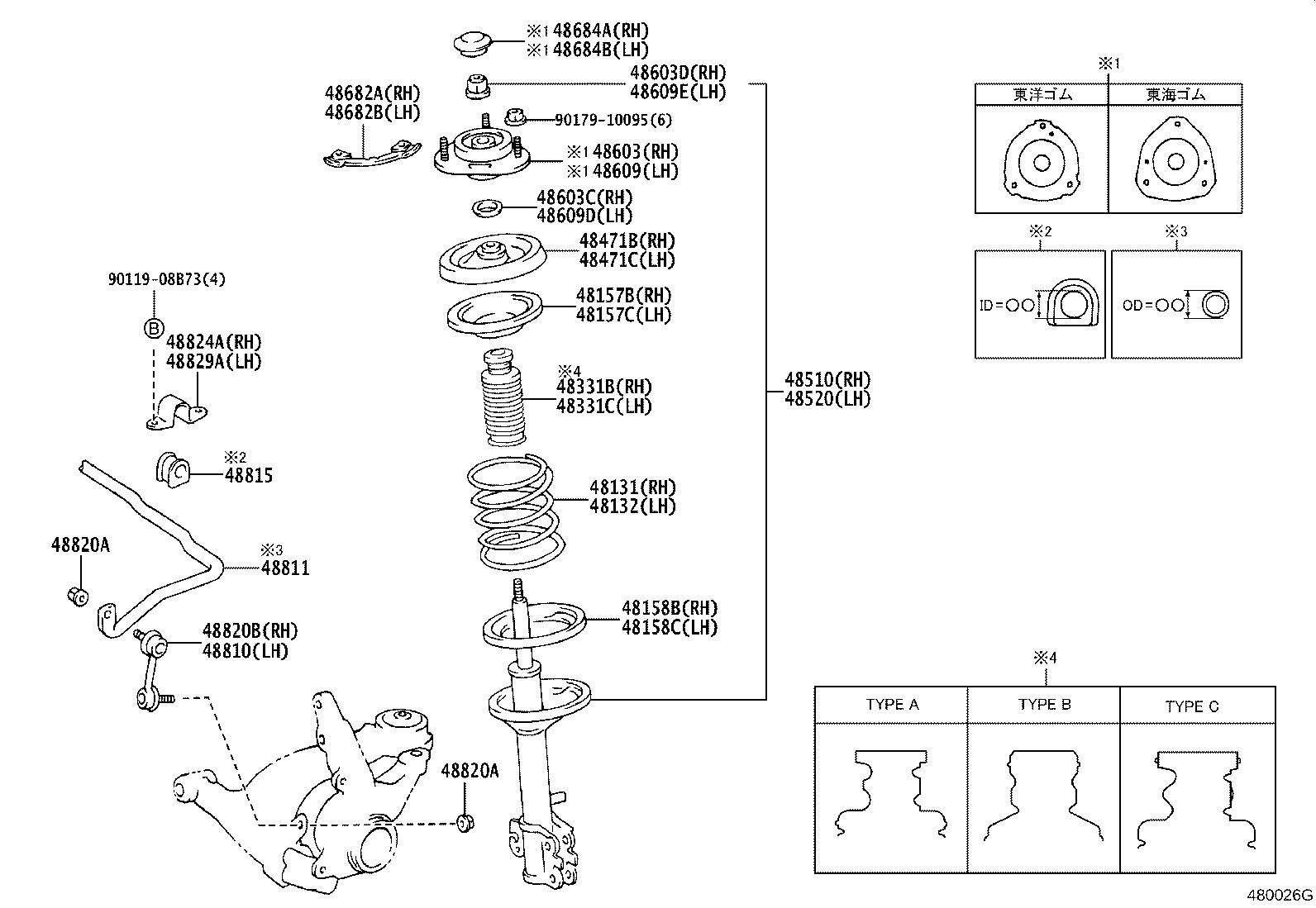

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-21110 |
CT215;CT210,216..4FC;ST215..4FC..SI 長さ=373.5 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-21110 |
CT215;CT210,216..4FC;ST215..4FC..SI 長さ=373.5 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12070 |
AT21#,CT21#,ST215 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12070 |
AT21#,CT21#,ST215 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-12150 |
AT210,CT21#,ST215 ﾀｲﾌﾟ A OR ﾀｲﾌﾟ B |
1 | ||
| 48331-12151 |
AT210,CT21#,ST215 ﾀｲﾌﾟ C |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-12150 |
AT210,CT21#,ST215 ﾀｲﾌﾟ A OR ﾀｲﾌﾟ B |
1 | ||
| 48331-12151 |
AT210,CT21#,ST215 ﾀｲﾌﾟ C |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-29405 |
CT210 |
1 | ||
| 48510-29406 |
CT210 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-29215 |
CT210 |
1 | ||
| 48520-29216 |
CT210 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-20420 |
ST215..SI;AT211,212,CT210,211,215 東海ｺﾞﾑ |
1 | ||
| 48609-20410 |
ST215..SI;AT211,212,CT210,211,215 東洋ｺﾞﾑ |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
AT21#,CT21#,ST215 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
AT21#,CT21#,ST215 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-20410 |
ST215..SI;AT211,212,CT210,211,215 東洋ｺﾞﾑ |
1 | ||
| 48609-20420 |
ST215..SI;AT211,212,CT210,211,215 東海ｺﾞﾑ |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
AT21#,CT21#,ST215 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
AT21#,CT21#,ST215 |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-20020 |
AT21#,CT21#,ST215 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-20020 |
AT21#,CT21#,ST215 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-20060 |
ST215..SI;AT211,212,CT210,211,215 東海ｺﾞﾑ |
1 | ||
| 48684-20020 |
ST215..SI;AT211,212,CT210,211,215 東洋ｺﾞﾑ |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-20020 |
ST215..SI;AT211,212,CT210,211,215 東洋ｺﾞﾑ |
1 | ||
| 48684-20060 |
ST215..SI;AT211,212,CT210,211,215 東海ｺﾞﾑ |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-20020 |
AT21#,CT21#,ST215 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-20890 |
AT211,212,CT210 外径=21 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20060 |
AT211,212,CT210 ID=21 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AT21#,CT21#,ST215 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AT21#,CT21#,ST215 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-20040 |
AT21#,CT21#,ST215 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-20080 |
AT211,212,CT21#,ST215 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-20080 |
AT211,212,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90119-08B73 | ||||
| 90179-10095 | ||||
