CT210-CEPMX (1996)
Toyota Carina Ff
ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15006 |
AT21#,CT21#,ST215 外径=12.4 |
1 | ||
| 90105-15005 |
AT21#,CT21#,ST215 外径=13.3 |
1 | ||
| 90105-15001 |
AT21#,CT21#,ST215 外径=15.0 |
2 | ||
| 90105-15004 |
AT21#,CT21#,ST215 外径=13.9 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15001 |
AT21#,CT21#,ST215 外径=15.0 |
2 | ||
| 90105-15006 |
AT21#,CT21#,ST215 外径=12.4 |
1 | ||
| 90105-15005 |
AT21#,CT21#,ST215 外径=13.3 |
1 | ||
| 90105-15004 |
AT21#,CT21#,ST215 外径=13.9 |
1 | ||

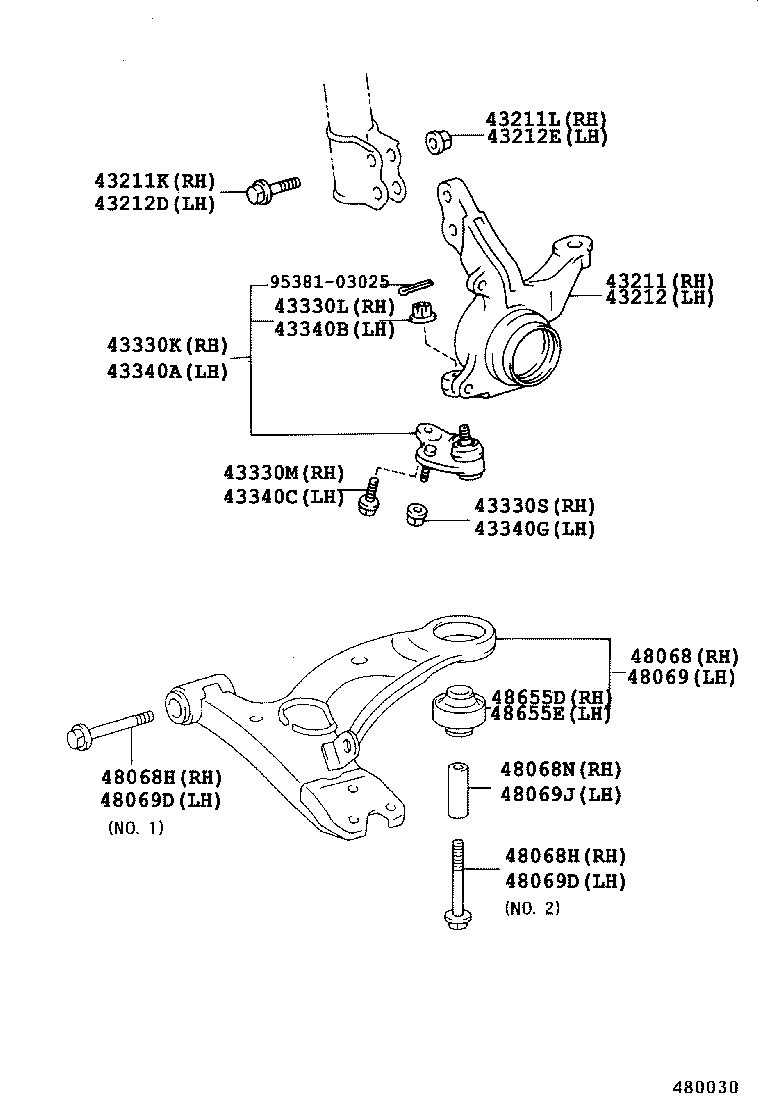

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-20300 |
AT21#,CT210 |
1 | ||
| 43211-20301 |
AT21#,CT210,211 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15006 |
AT21#,CT21#,ST215 外径=12.4 |
1 | ||
| 90105-15005 |
AT21#,CT21#,ST215 外径=13.3 |
1 | ||
| 90105-15001 |
AT21#,CT21#,ST215 外径=15.0 |
2 | ||
| 90105-15004 |
AT21#,CT21#,ST215 外径=13.9 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15001 |
AT21#,CT21#,ST215 |
2 | ||
| 90179-15006 |
AT21#,CT21#,ST215 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-20300 |
AT21#,CT210 |
1 | ||
| 43212-20301 |
AT21#,CT210,211 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15001 |
AT21#,CT21#,ST215 外径=15.0 |
2 | ||
| 90105-15006 |
AT21#,CT21#,ST215 外径=12.4 |
1 | ||
| 90105-15005 |
AT21#,CT21#,ST215 外径=13.3 |
1 | ||
| 90105-15004 |
AT21#,CT21#,ST215 外径=13.9 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15001 |
AT21#,CT21#,ST215 |
2 | ||
| 90179-15006 |
AT21#,CT21#,ST215 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-29375 |
AT21#,CT21#,ST215 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
AT21#,CT21#,ST215 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12122 |
AT21#,CT21#,ST215 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90179-12052 |
AT21#,CT21#,ST215 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-29375 |
AT21#,CT21#,ST215 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
AT21#,CT21#,ST215 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12122 |
AT21#,CT21#,ST215 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90179-12052 |
AT21#,CT21#,ST215 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-20220 |
AT21#,CT210 |
1 | ||
| 48068-20221 |
AT21#,CT210,211 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14046 |
AT21#,CT21#,ST215 NO.2 |
1 | ||
| 90119-14023 |
AT21#,CT21#,ST215 NO.1 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14046 |
AT21#,CT21#,ST215 NO.2 |
1 | ||
| 90119-14023 |
AT21#,CT21#,ST215 NO.1 |
1 | ||
| 48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90389-19002 |
AT21#,CT210,211 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-20221 |
AT21#,CT210,211 |
1 | ||
| 48069-20220 |
AT21#,CT210 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14046 |
AT21#,CT21#,ST215 NO.2 |
1 | ||
| 90119-14023 |
AT21#,CT21#,ST215 NO.1 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14046 |
AT21#,CT21#,ST215 NO.2 |
1 | ||
| 90119-14023 |
AT21#,CT21#,ST215 NO.1 |
1 | ||
| 48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90389-19002 |
AT21#,CT210,211 |
1 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-20220 |
AT21#,CT210 |
1 | ||
| 48655-20221 |
AT21#,CT210,211 |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-20221 |
AT21#,CT210,211 |
1 | ||
| 48655-20220 |
AT21#,CT210 |
1 | ||
| Common parts | ||||
| 95381-03025 | ||||
