CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)CT21#

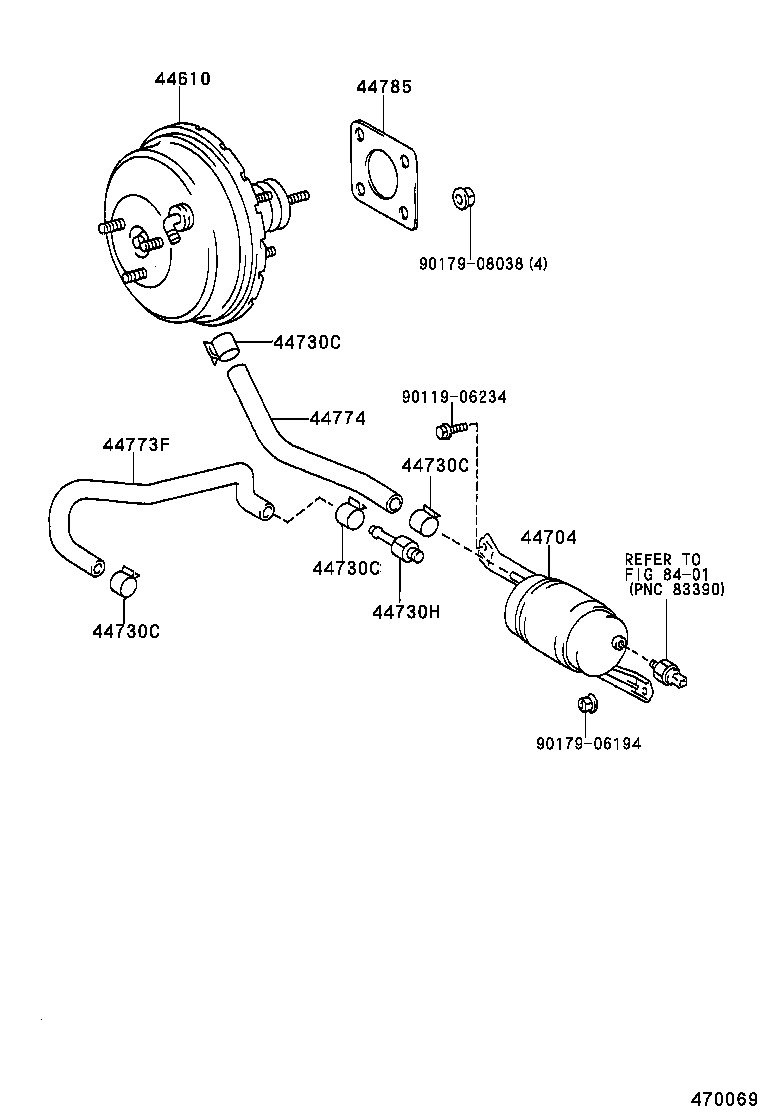

Click highlighted areas on diagram

diagram 44610 44704 44730C 44730C 44730C 44730C 44730H 44773F 44774 44785 8401 9011906234 9017906194 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2D760

CT210

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-20130

CT21#

 1
44704-20100

CT21#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT210,CT210,215

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT210,CT210,215

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT210,CT210,215

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT210,CT210,215

 4
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-60050

CT21#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-2B060

CT21#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95447-09230

CT21#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AT21#,CT21#,ST215

 1
Common parts
90119-06234
90179-06194
90179-08038
Linked diagrams
8401
