CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

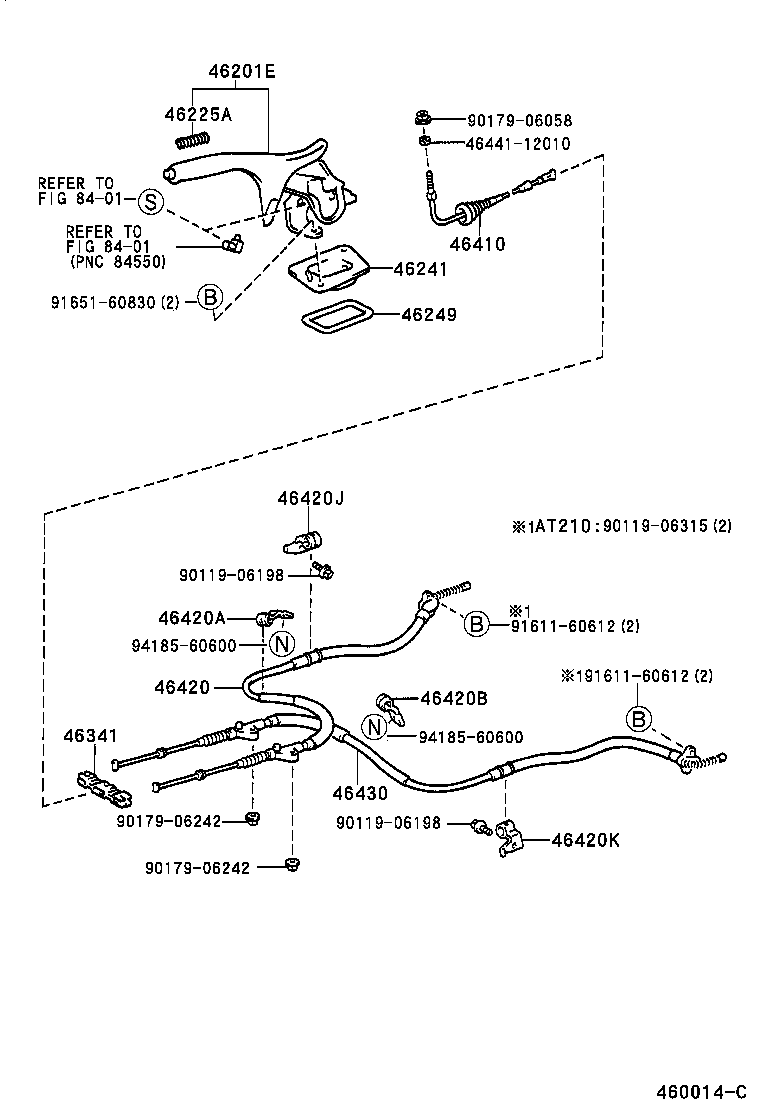

ILLUST NO. 1 OF 2(9608- )AT21#,CT210,211

Click highlighted areas on diagram

diagram 46201E 46225A 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 4644112010 8401 8401 9011906198 9011906198 9011906315 9017906058 9017906242 9017906242 9161160612 9161160612 9165160830 9418560600 9418560600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-20340C0

AT211,212,CT21#,ST215

BLACK,TRIM1#,4#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20170

AT21#,CT21#,ST215

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20050

AT21#,CT21#,ST215

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AT21#,CT210,211

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20430

AT21#,CT210,211

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-20351

AT211,212,CT210,211

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01771

AT21#,CT210,211

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01772

AT21#,CT210,211

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46451-20020

AT21#,CT210,211

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46451-20030

AT21#,CT210,211

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20361

AT211,212,CT210,211

 1
Common parts
46441-12010
90119-06198
90119-06315
90179-06058
90179-06242
91611-60612
91651-60830
94185-60600
Linked diagrams
8401
