CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)

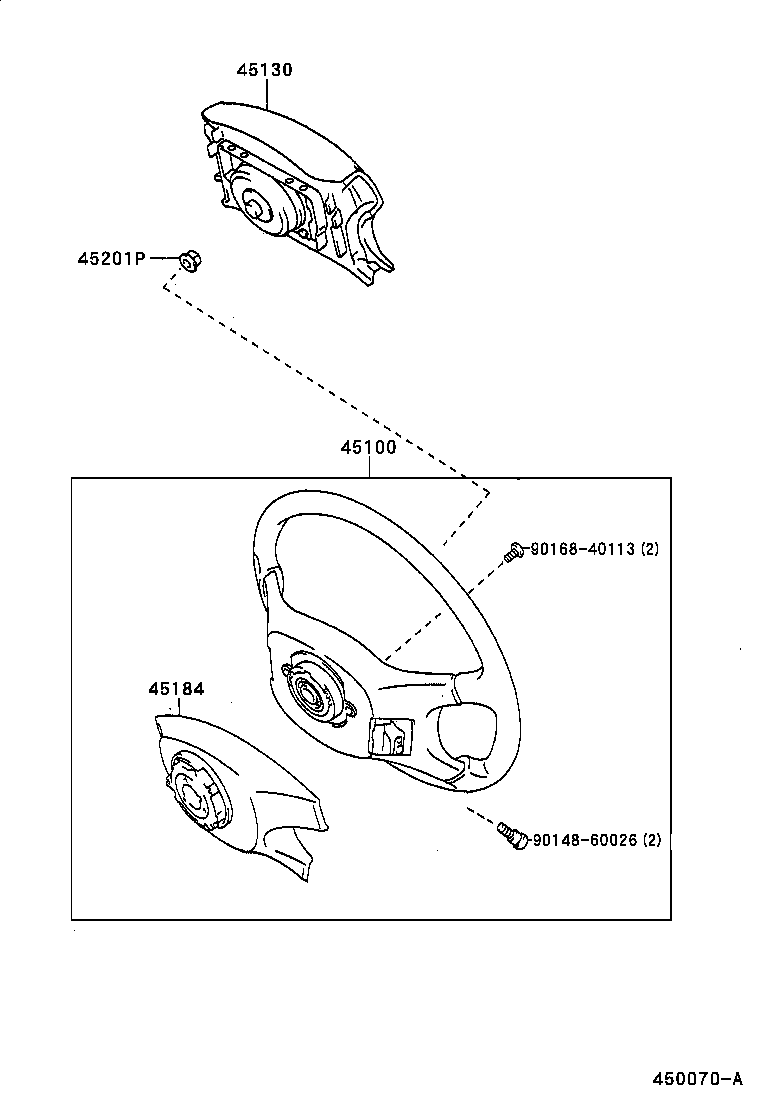

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45184 45201P 9014860026 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B510B0

AT211,212,CT21#,ST215

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45100-2B510E0

AT211,212,CT21#,ST215

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ANTELOPE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-2B360B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
45130-2B360E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-20540B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
45184-20540E0

AT211,212,CT21#,ST215

ANTELOPE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AT21#,CT21#,ST215

 1
Common parts
90148-60026
90168-40113
