CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )CT21#

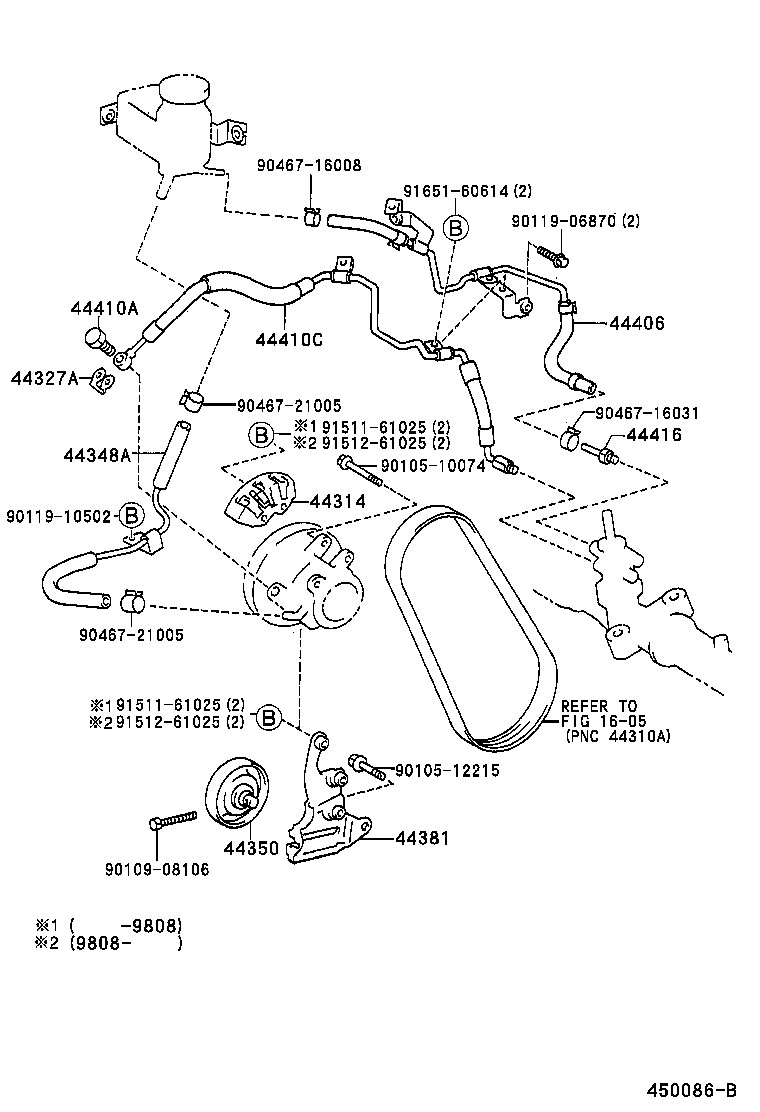

Click highlighted areas on diagram

diagram 1605 44314 44327A 44348A 44350 44381 44406 44410A 44410C 44416 9010510074 9010512215 9010908106 9011906870 9011910502 9046716008 9046716031 9046721005 9046721005 9151161025 9151161025 9151261025 9151261025 9165160614
Part # Description Qty Price
44314 - COVER, PULLEY
44314-12010

CT21#

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT211,212,CT21#,ST215

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20590

CT210,211

 1
44348-20390

CT210

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20060

CT21#

 1
44350-12052

CT21#

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20020

CT21#

 1
44381-20030

CT21#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20730

CT210

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT211,212,CT21#

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-2B230

CT210,211

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT21#,CT21#,ST215

 1
Common parts
90105-10074
90105-12215
90109-08106
90119-06870
90119-10502
90467-16008
90467-16031
90467-21005
91511-61025
91512-61025
91651-60614
Linked diagrams
1605
