CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )CT21#

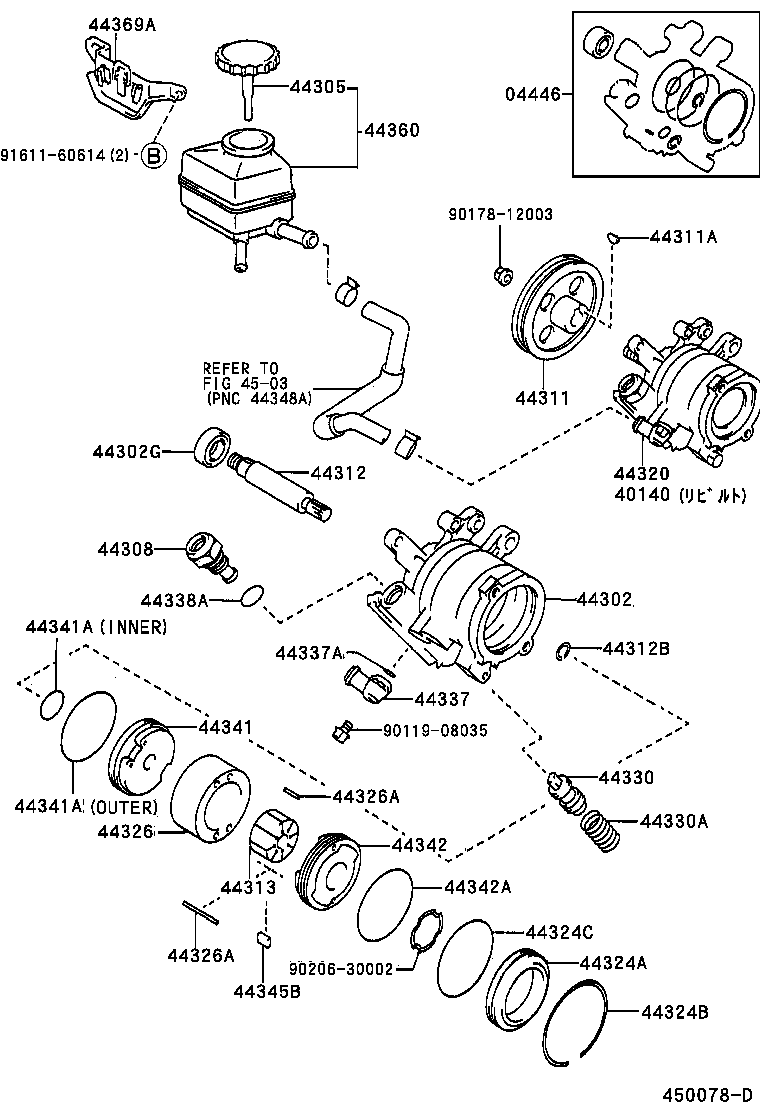

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44305 44308 44311 44311A 44312 44312B 44313 44320 44324A 44324B 44324C 44326 44326A 44326A 44330 44330A 44337 44337A 44338A 44341 44341A 44341A 44342 44342A 44345B 44360 44369A 4503 9011908035 9017812003 9020630002 9161160614
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-27011

CT21#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-20400

CT21#

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12041

CT21#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007

AT21#,CT21#,ST215

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030

AT210,CT21#,ST215

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-20020

AT21#,CT21#

 1
44311 - PULLEY, VANE PUMP
44311-12030

CT21#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

AT21#,CT21#,ST215

 1
44312 - SHAFT, VANE PUMP
44312-12030

AT21#,CT21#,ST215

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

AT21#,CT21#,ST215

 1
44313 - ROTOR, VANE PUMP
44313-22050

AT21#,CT21#,ST215

ﾏｰｸ 1

 1
44313-22040

AT21#,CT21#,ST215

ﾏｰｸ無し

 1
44313-22080

AT21#,CT21#,ST215

ﾏｰｸ 4

 1
44313-22070

AT21#,CT21#,ST215

ﾏｰｸ 3

 1
44313-22060

AT21#,CT21#,ST215

ﾏｰｸ 2

 1
44320 - PUMP ASSY, VANE
44320-20400

CT21#

 1
44324A - HOUSING, PUMP, REAR
44324-12031

AT21#,CT21#,ST215

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002

AT21#,CT21#,ST215

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-53006

AT21#,CT21#,ST215

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12130

AT21#,CT21#

ﾏｰｸ 2

 1
44325-12150

AT21#,CT21#

ﾏｰｸ 4

 1
44325-12120

AT21#,CT21#

ﾏｰｸ 1

 1
44325-12110

AT21#,CT21#

ﾏｰｸ無し

 1
44325-12140

AT21#,CT21#

ﾏｰｸ 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04049

AT21#,CT21#,ST215

長さ=43,外径=4.0

 1
90250-04047

AT21#,CT21#,ST215

長さ=28,外径=4.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04049

AT21#,CT21#,ST215

長さ=43,外径=4.0

 1
90250-04047

AT21#,CT21#,ST215

長さ=28,外径=4.0

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-35131

CT21#

ﾏｰｸ A

 1
44330-35171

CT21#

ﾏｰｸ E

 1
44330-35141

CT21#

ﾏｰｸ B

 1
44330-35181

CT21#

ﾏｰｸ F

 1
44330-35161

CT21#

ﾏｰｸ D

 1
44330-35151

CT21#

ﾏｰｸ C

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

AT21#,CT21#,ST215

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12010

CT21#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-12003

AT21#,CT21#,ST215

 1
90301-11016

AT211,212,CT21#,ST215

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003

AT21#,CT21#,ST215

内径=19.5,外径=22.5

 1
90301-19013

AT211,212,CT21#,ST215

内径=19.2,外径=22.3

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-32010

AT21#,CT21#,ST215

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001

AT21#,CT21#,ST215

内側

 1
90301-52001

AT21#,CT21#,ST215

外側

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001

AT21#,CT21#,ST215

内側

 1
90301-52001

AT21#,CT21#,ST215

外側

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-32010

AT21#,CT21#,ST215

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001

AT21#,CT21#,ST215

 1
44345B - PLATE, VANE PUMP
44345-12020

AT21#,CT21#,ST215

長さ=14.995

 10
44345-12010

AT21#,CT21#,ST215

長さ=14.997

 10
44345-12040

AT21#,CT21#,ST215

長さ=14.991

 10
44345-12030

AT21#,CT21#,ST215

長さ=14.993

 10
44345-12050

AT21#,CT21#,ST215

長さ=14.989

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20200

CT21#

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-20020

AT210,CT21#,ST215

 1
Common parts
90119-08035
90178-12003
90206-30002
91611-60614
Linked diagrams
4503
