CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

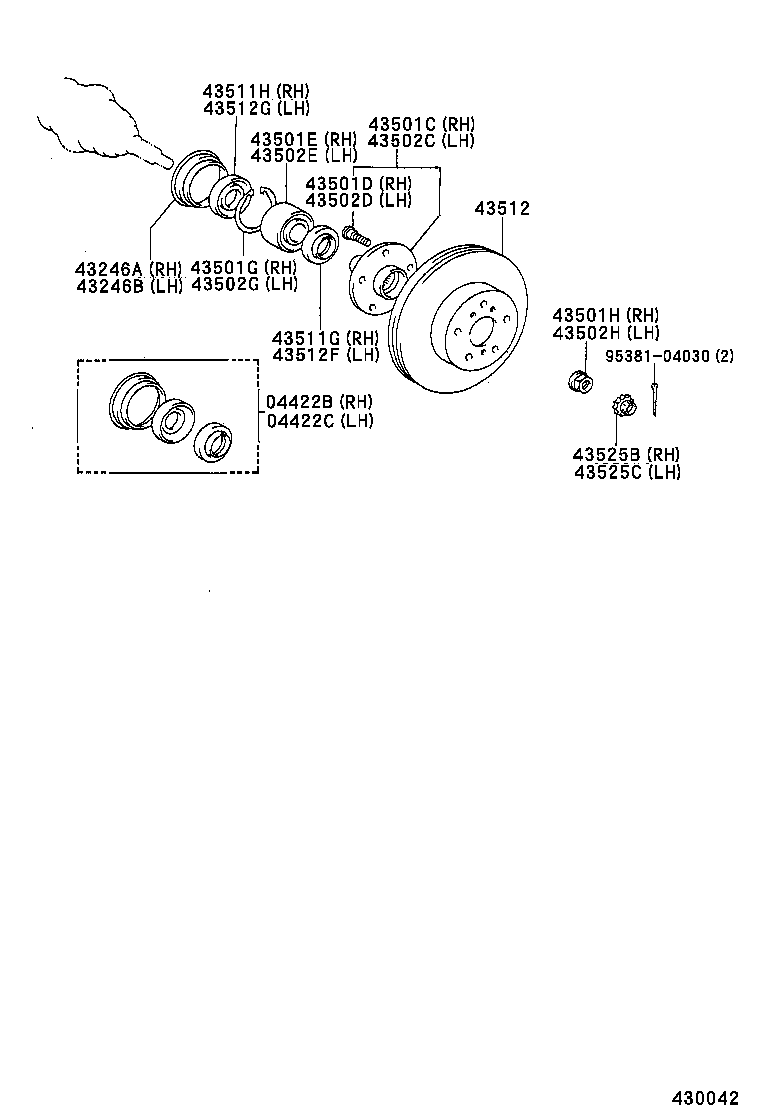

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04422B - SEAL KIT, FRONT AXLE OIL, RH | ||||
| 04422-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 04422C - SEAL KIT,FRONT AXLE OIL, LH | ||||
| 04422-20080 |
AT21#,CT21#,ST215 |
1 | ||
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43246-12020 |
AT21#,CT21#,ST215 |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43246-12020 |
AT21#,CT21#,ST215 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-20131 |
AT21#,CT21#,ST215 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
AT21#,CT21#,ST215 |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-38003 |
AT21#,CT21#,ST215 |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-79002 |
AT21#,CT21#,ST215 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-22001 |
AT21#,CT21#,ST215 |
1 | ||
| 90179-22020 |
AT21#,CT21#,ST215 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-20131 |
AT21#,CT21#,ST215 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
AT21#,CT21#,ST215 |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-38003 |
AT21#,CT21#,ST215 |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-79002 |
AT21#,CT21#,ST215 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-22001 |
AT21#,CT21#,ST215 |
1 | ||
| 90179-22020 |
AT21#,CT21#,ST215 |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90311-52020 |
AT21#,CT21#,ST215 |
1 | ||
| 43511H - SEAL, OIL (FOR FRONT AXLE HUB INNER RH) | ||||
| 90311-56029 |
AT21#,CT21#,ST215 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-20450 |
AT211,212,CT21#,ST215 |
2 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90311-52020 |
AT21#,CT21#,ST215 |
1 | ||
| 43512G - SEAL, OIL (FOR FRONT AXLE HUB INNER LH) | ||||
| 90311-56029 |
AT21#,CT21#,ST215 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20030 |
AT21#,CT21#,ST215 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20030 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 95381-04030 | ||||
