CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )AT21#,CT210,211

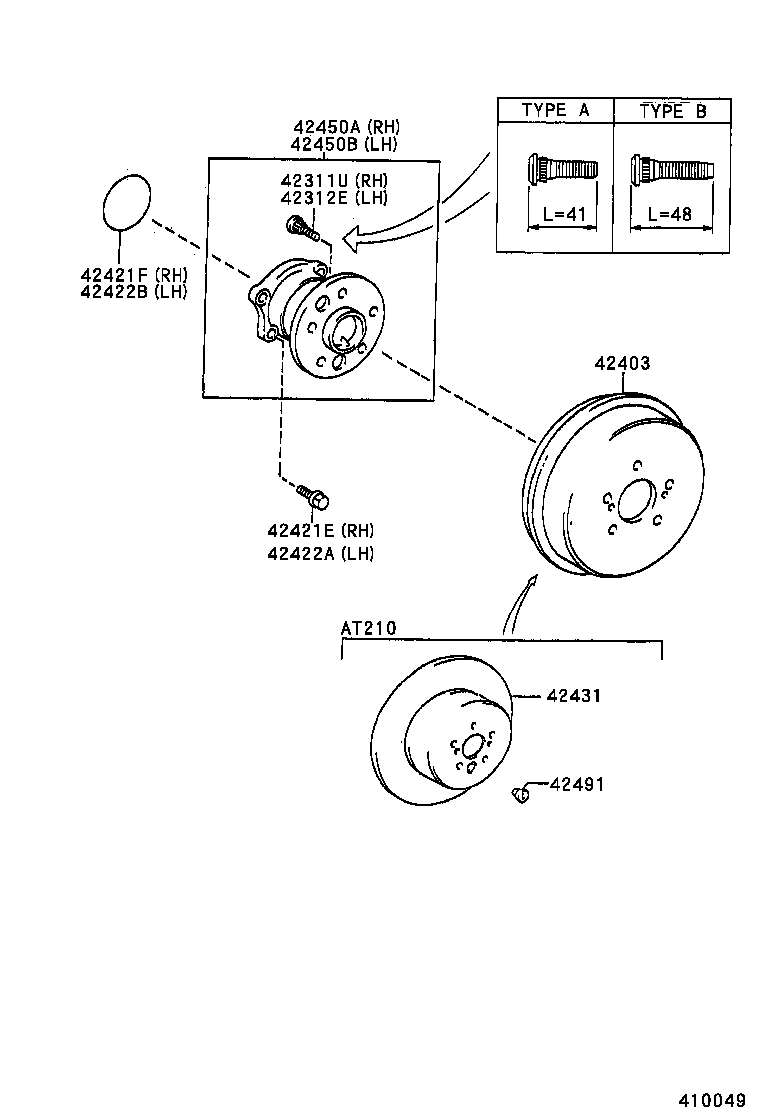

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02070 |
AT21#,CT210,211 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 90942-02047 |
AT21#,CT210,211 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AT21#,CT210,211 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 90942-02070 |
AT21#,CT210,211 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-20190 |
AT211,212,CT210,211 |
2 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10124 |
AT21#,CT210,211 |
4 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-63003 |
AT21#,CT210,211 |
1 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10124 |
AT21#,CT210,211 |
4 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-63003 |
AT21#,CT210,211 |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-20060 |
AT21#,CT210,211 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-20060 |
AT21#,CT210,211 |
1 | ||
