CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)CT210..4FC

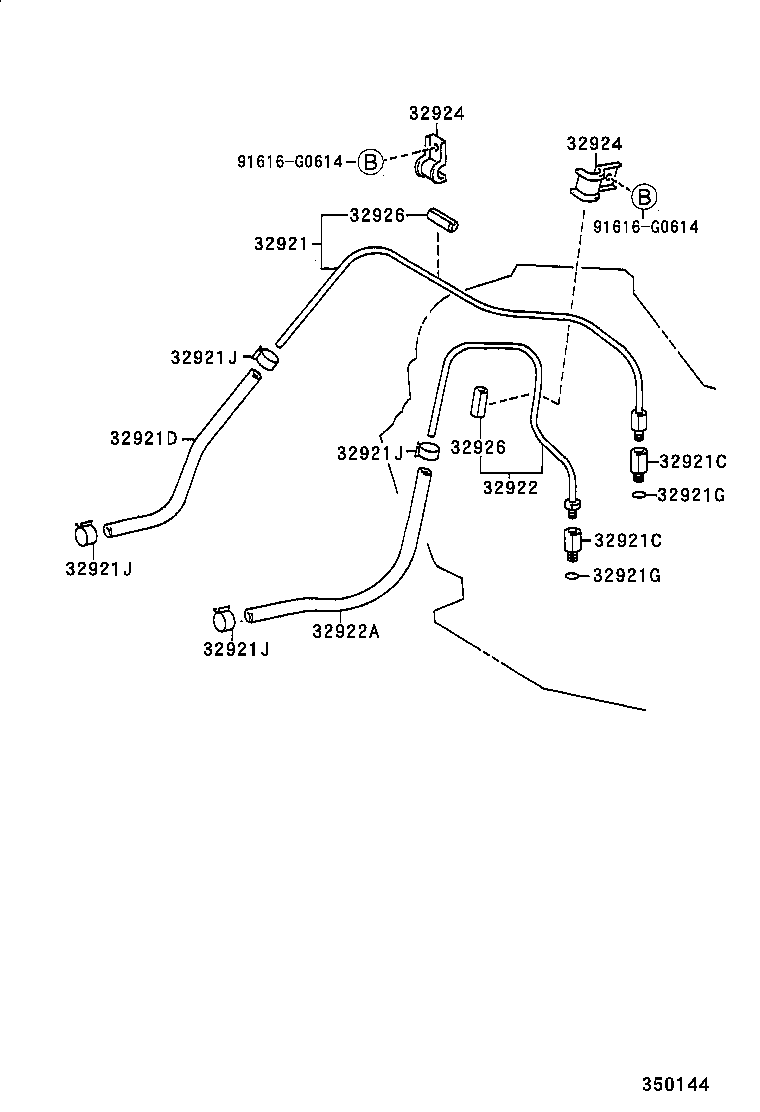

Click highlighted areas on diagram

A241L

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32924 32924 32926 32926 91616G0614 91616G0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20400

CT210..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

AT212,CT210..4FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

AT212,CT210..4FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-15070

CT210,211..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT212,CT210,211,216,ST215..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT212,CT210,211,216,ST215..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT212,CT210,211,216,ST215..4FC..TI

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT212,CT210,211,216,ST215..4FC..TI

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT212,CT210,211,216,ST215..4FC..TI

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT212,CT210,211,216,ST215..4FC..TI

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-20440

CT210,211..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15054

CT210,211,ST215..4FC..TI

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

CT210,211,216..4FC

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

CT210,211,216..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

CT210,211,216..4FC

長さ=35,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

CT210,211,216..4FC

長さ=35,内径=8

 3
Common parts
91616-G0614
