CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)AT212,CT210..4FC

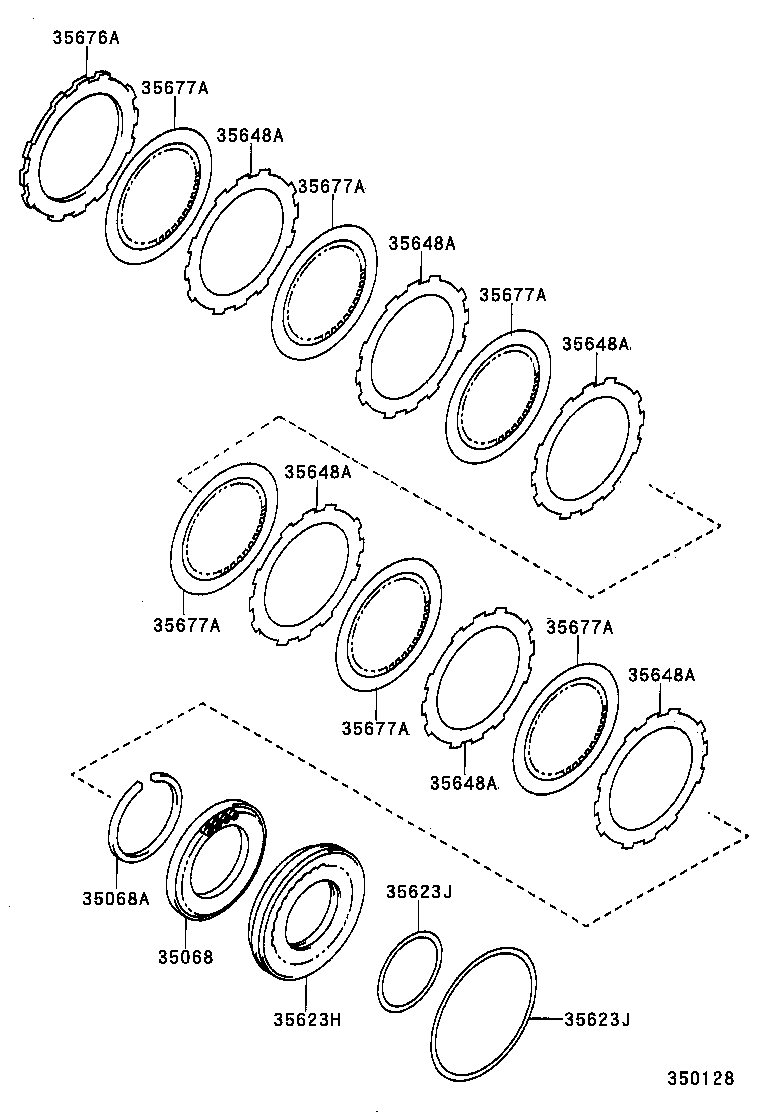

Click highlighted areas on diagram

A240L,A241L

diagram 35068 35068A 35623H 35623J 35623J 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-20010

AT212,CT210,211,216,ST215..4FC..TI

 1
35068-32010

AT212,CT210..4FC

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-90001

ST215..4FC..TI;AT21#,CT210,211,216..4FC

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-12050

AT212,CT210..4FC

 1
35623-20030

CT210,211,216,ST215..4FC..TI

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-94001

AT21#,CT210..4FC

内側

 1
90301-99022

ST215..4FC..SI;AT21#,CT210..4FC

外側

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-94001

AT21#,CT210..4FC

内側

 1
90301-99022

ST215..4FC..SI;AT21#,CT210..4FC

外側

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AT212,CT210,211,216,ST215..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AT212,CT210,211,216,ST215..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AT212,CT210,211,216,ST215..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AT212,CT210,211,216,ST215..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AT212,CT210,211,216,ST215..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AT212,CT210,211,216,ST215..4FC

 6
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-32010

AT212,CT210,ST215..4FC

厚さ=3.5

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12060

AT212,CT210,211,216,ST215..4FC..TI

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12060

AT212,CT210,211,216,ST215..4FC..TI

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12060

AT212,CT210,211,216,ST215..4FC..TI

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12060

AT212,CT210,211,216,ST215..4FC..TI

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12060

AT212,CT210,211,216,ST215..4FC..TI

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12060

AT212,CT210,211,216,ST215..4FC..TI

 6
