CT210-CEPMX (1996)
Toyota Carina Ff
(9608-9808)AT212,CT210..4FC
A240L,A241L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91619-61245 |
CT210,211,216,ST215..4FC *12−1.25PX45−30 |
3 | ||
| 90105-08040 |
CT210,ST215..4FC..TI *8−1.25PX18−15 |
2 | ||
| 90105-10077 |
AT21#,CT210,211,216,ST215..4FC *10−1.25PX43−26 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91619-61245 |
CT210,211,216,ST215..4FC *12−1.25PX45−30 |
3 | ||
| 90105-08040 |
CT210,ST215..4FC..TI *8−1.25PX18−15 |
2 | ||
| 90105-10077 |
AT21#,CT210,211,216,ST215..4FC *10−1.25PX43−26 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12030 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AT21#,CT210,211,216,ST215..4FC |
2 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-20230 |
CT210,211,216,ST215..4FC..TI |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24018 |
CT210,211,216,ST215..4FC..TI |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-20641 |
CT210,211..4FC |
1 | ||
| 35101P - CASE & COVER SUB-ASSY, TRANSAXLE | ||||
| 35101-20033 |
CT210..4FC |
1 | ||
| 35101-20034 |
CT210,211,216,ST215..4FC..TI |
1 | ||
| 35101-20032 |
CT210..4FC |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-20031 |
CT210,211,216,ST215..4FC..TI |
1 | ||
| 35102-20030 |
CT210..4FC |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08065 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX35−30 |
3 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08065 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX35−30 |
3 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20340 |
CT210,211..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03101 |
AT212,CT210,211,216,ST215..4FC..TI |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11031 |
AT210,211,CT210..4FC |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
AT212,CT210,211,216,ST215..4FC..TI NO.2 |
2 | ||
| 90250-10021 |
AT212,CT210,211,216,ST215..4FC..TI NO.1 |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
AT212,CT210,211,216,ST215..4FC..TI NO.2 |
2 | ||
| 90250-10021 |
AT212,CT210,211,216,ST215..4FC..TI NO.1 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
AT212,CT210,211,216,ST215..4FC..TI |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12110 |
AT212,CT210..4FC |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08065 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX45−35 |
10 | ||
| 90105-08066 |
AT212,CT210,211..4FC *8−1.25PX72−30 |
1 | ||
| 90105-08082 |
CT210,211..4FC *8−1.25PX48−30 |
1 | ||
| 90105-08071 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX30−25 |
2 | ||
| 90105-08068 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX35−30 |
5 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08065 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX45−35 |
10 | ||
| 90105-08066 |
AT212,CT210,211..4FC *8−1.25PX72−30 |
1 | ||
| 90105-08082 |
CT210,211..4FC *8−1.25PX48−30 |
1 | ||
| 90105-08071 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX30−25 |
2 | ||
| 90105-08068 |
AT212,CT210,211,216,ST215..4FC..TI *8−1.25PX35−30 |
5 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
AT212,CT210,211..4FC |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-20010 |
CT210,211,216,ST215..4FC..TI |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12020 |
ST215..4FC..TI;AT210,211,CT210,211,216..4FC |
1 | ||
| 35166-12010 |
AT212,CT210..4FC |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12020 |
AT212,CT210,211,216,ST215..4FC..TI |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ST215..4FC..TI;AT21#,CT210,211,216..4FC |
2 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-12020 |
AT212,CT210,211..4FC |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91612-60628 | ||||
| 96132-30400 | ||||

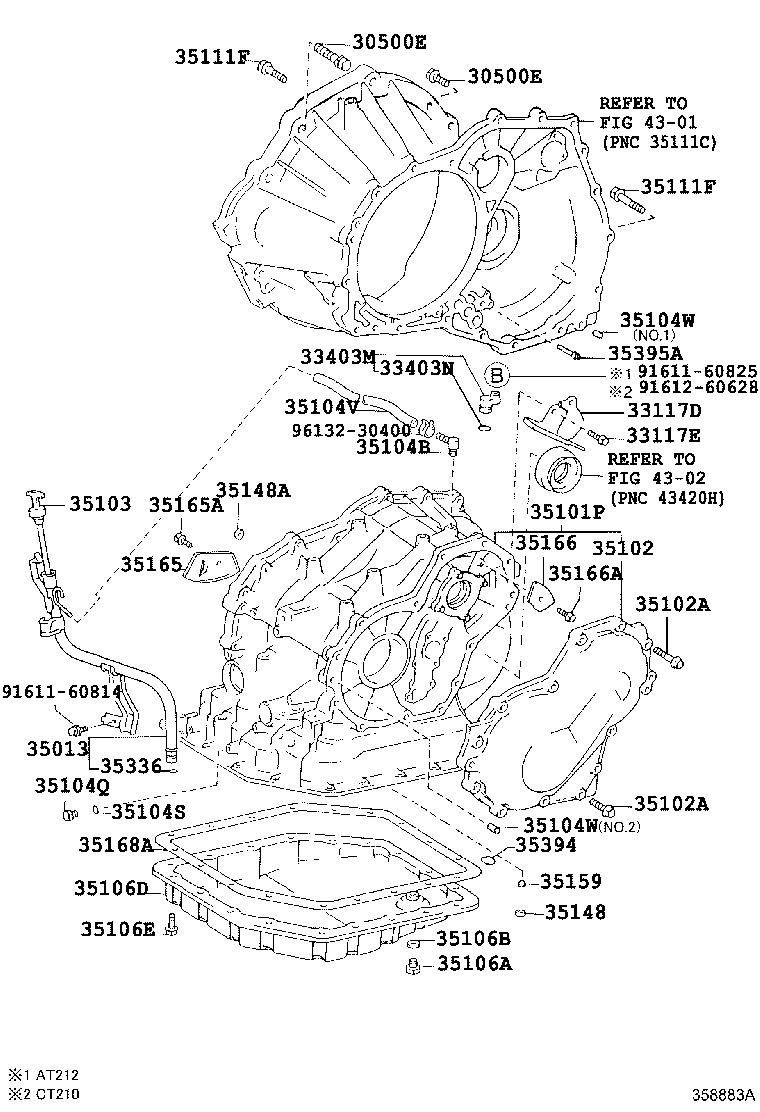

| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
