CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

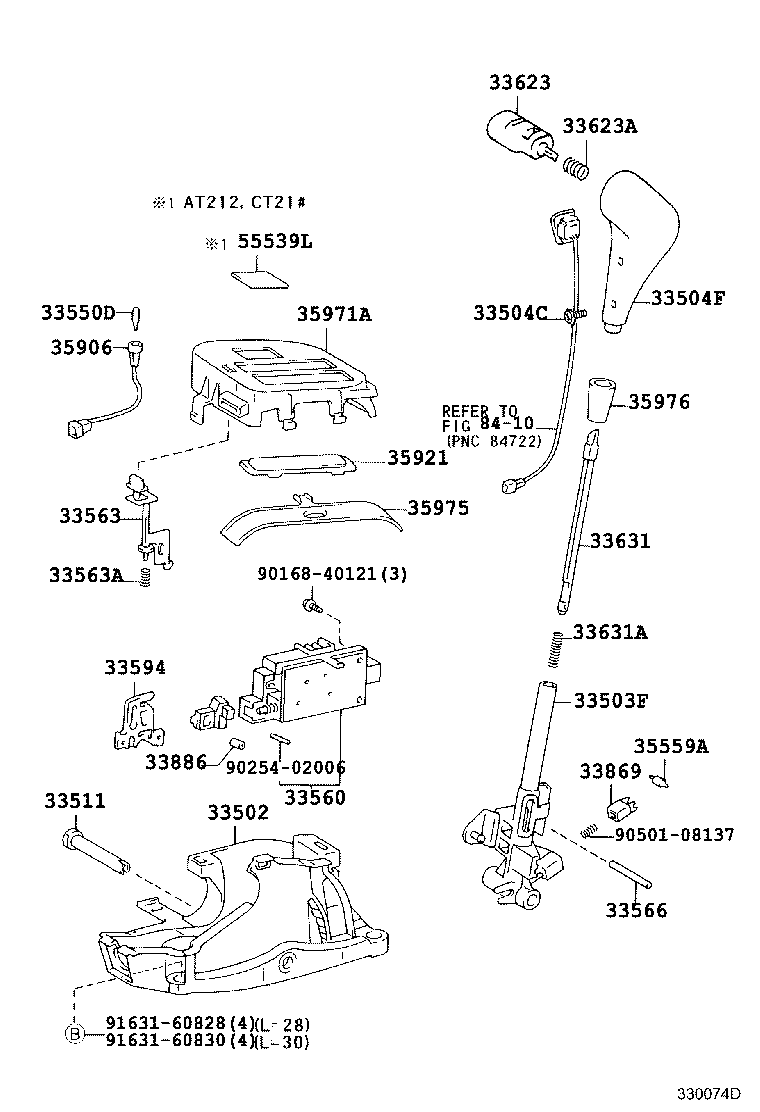

ILLUST NO. 1 OF 2(9608- )4FC

Click highlighted areas on diagram

diagram 33502 33503F 33504C 33504F 33511 33550D 33560 33563 33563A 33566 33594 33623 33623A 33631 33631A 33869 33886 35559A 35906 35921 35971A 35975 35976 55539L 8410 9016840121 9025402006 9050108137 9163160828 9163160830
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-20280

AT21#,CT210,211,216,ST215..4FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-20180

AT21#,CT210,211,216,ST215..4FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
93339-54008

AT21#,CT210,211,216,ST215..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-20180C0

AT211,212,CT210,ST215..4FC

BLACK,TRIM1#,4#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-16070

AT21#,CT210,211,216,ST215..4FC

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

AT21#,CT210,211,216,ST215..4FC

14V 1.4W

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-20020

AT21#,CT210,ST215..4FC

 1
33560-20021

AT21#,CT210,211,216,ST215..4FC

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-20080

AT21#,CT210,211,216,ST215..4FC

 1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-07103

AT21#,CT210,211,216,ST215..4FC

 1
33566 - PIN, SHIFT LEVER STOP
33566-20020

AT21#,CT210,211,216,ST215..4FC

 1
33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33594-20060

AT21#,CT210,211,216,ST215..4FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-20080C0

AT211,212,CT210,ST215..4FC

BLACK,TRIM1#,4#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-06088

AT21#,CT210,211,216,ST215..4FC

 1
33631 - ROD, DETENT
33631-20170

AT21#,CT210,211,216,ST215..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08111

AT21#,CT210,211,216,ST215..4FC

 1
33869 - HOLDER, SHIFT LEVER DETENT ROLLER
33869-20020

AT21#,CT210,211,216,ST215..4FC

 1
33886 - STOPPER, SHIFT LEVER
33886-20030

AT21#,CT210,211,216,ST215..4FC

 1
35559A - PIN (FOR MANUAL DETENT SPRING)
90903-61002

AT21#,CT210,211,216,ST215..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-20090

AT21#,CT210,211,216,ST215..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-20350

AT21#,CT210,211,216,ST215..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-20290

AT21#,CT210,211,216,ST215..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20160

AT21#,CT210,211,216,ST215..4FC

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-20090C0

AT211,212,CT210,ST215..4FC

BLACK,TRIM1#,4#

 1
55539L - COVER, SPARE SWITCH HOLE
55539-32010C0

AT212,CT210..4FC

BLACK,TRIM1#,4#

 1
Common parts
90168-40121
90254-02006
90501-08137
91631-60828
91631-60830
Linked diagrams
8410

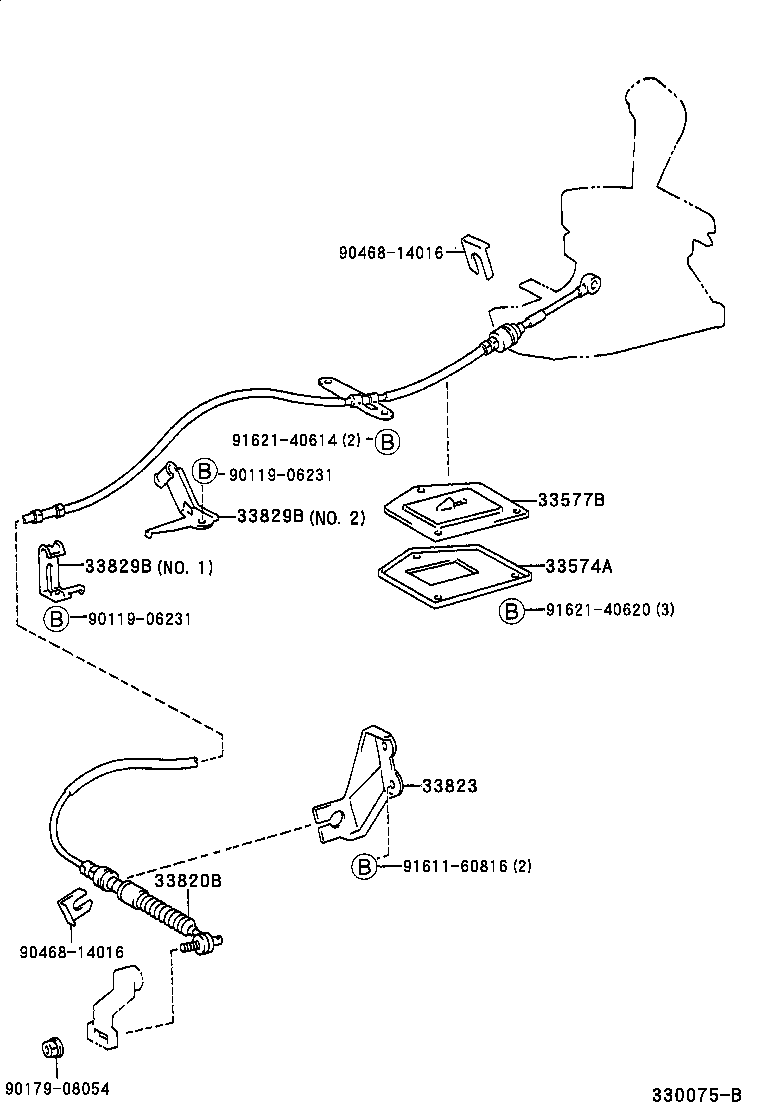

ILLUST NO. 2 OF 2(9608- )AT211,212,CT210,211..4FC

Click highlighted areas on diagram

diagram 33574A 33577B 33820B 33823 33829B 33829B 9011906231 9011906231 9017908054 9046814016 9046814016 9161160816 9162140614 9162140620
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-20380

AT21#,CT21#,ST215

 1
33577B - COVER, CONTROL SHAFT HOLE
33577-20020

AT21#,CT210,211,216,ST215..4FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-2B440

CT210,211..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-20200

CT210,211,216,ST215..4FC..TI

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-20020

AT211,212,CT210,211..4FC

NO.2

 1
33829-20010

AT211,212,CT210,211..4FC

NO.1

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-20020

AT211,212,CT210,211..4FC

NO.2

 1
33829-20010

AT211,212,CT210,211..4FC

NO.1

 1
Common parts
90119-06231
90179-08054
90468-14016
91611-60816
91621-40614
91621-40620
