CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )2CT,3CTE

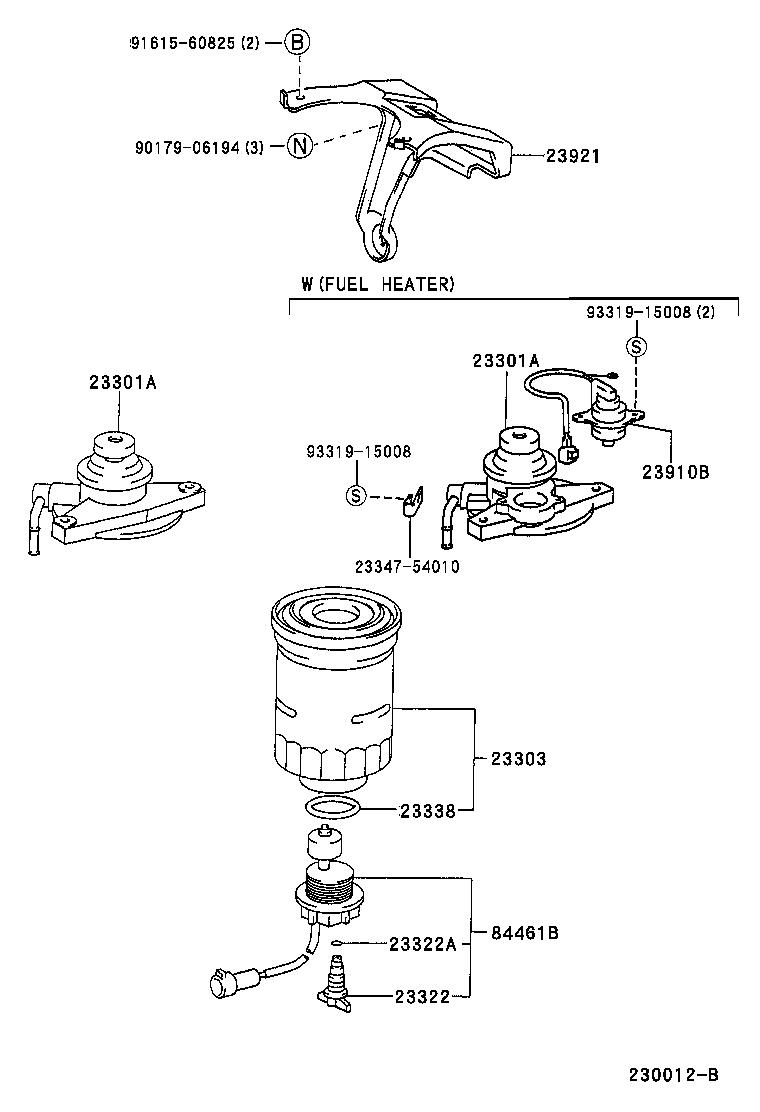

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2334754010 23910B 23921 84461B 9017906194 9161560825 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-64450

2CT,3CTE..CT21#

 1
23301A - CAP ASSY, FUEL FILTER
23380-64450

2CT,3CTE..CT21#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450

2CT,3CTE..CT21#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

2CT,3CTE..CT21#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2CT,3CTE..CT21#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2CT,3CTE..CT21#

 1
23921 - SUPPORT, FUEL FILTER
23921-64270

2CT,3CTE..CT21#

 1
84461B - SWITCH, LEVEL WARNING
84461-20090

CT21#

 1
Common parts
23347-54010
90179-06194
91615-60825
93319-15008
