CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )2CT,3CTE

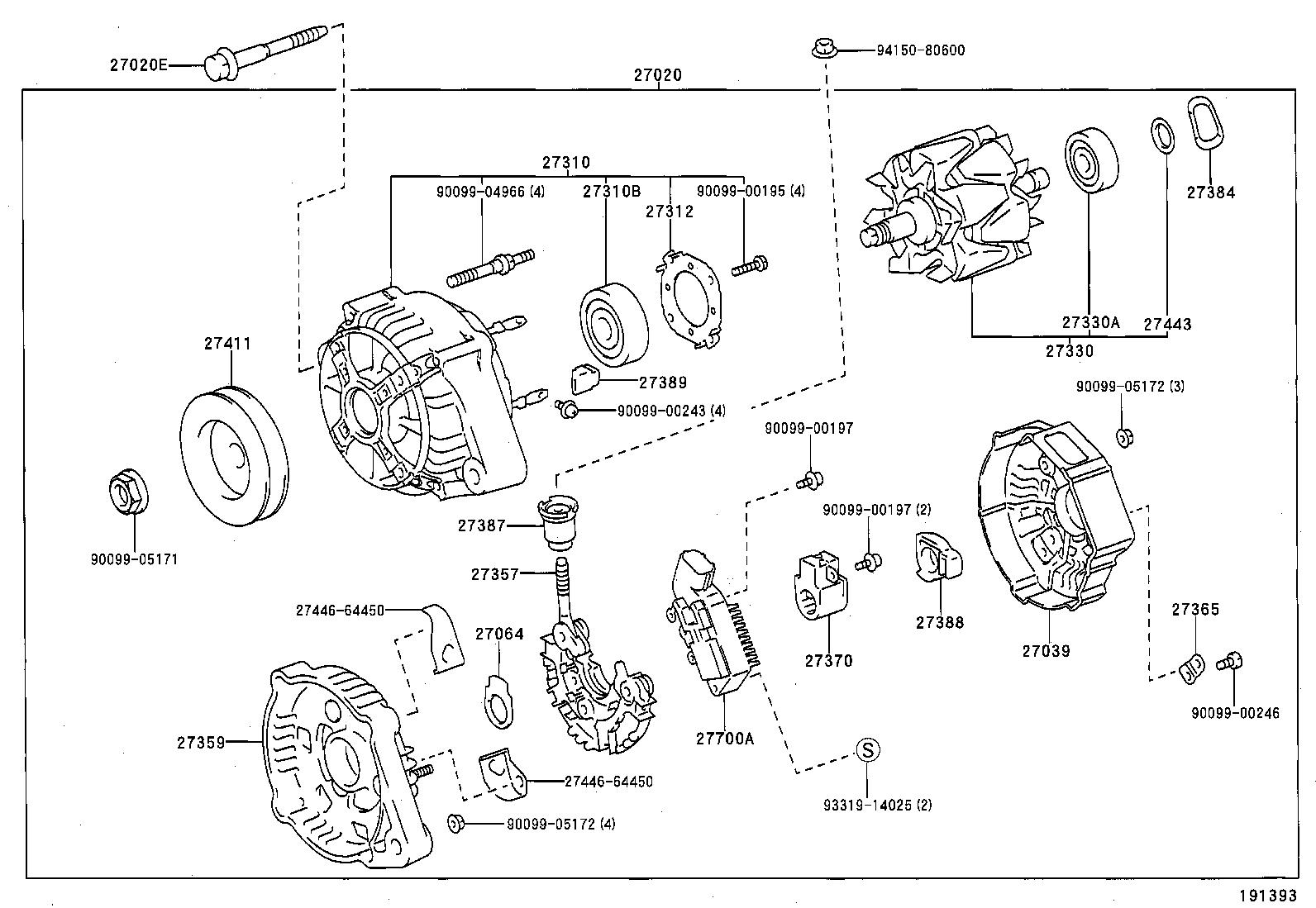

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 2744664450 2744664450 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905171 9009905172 9009905172 9331914025 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-64270

2CT..CT210..4FC;2CT,3CTE..CT211,215

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90901-05004

2CT,3CTE..CT21#

 1
27039 - COVER, ALTERNATOR REAR END
27039-20020

2CT,3CTE..CT210,211,215

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64470

2CT..CT210..4FC;2CT,3CTE..CT211,215

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27312 - PLATE, RETAINER
27312-42010

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280

2CT,3CTE..CT211,215;2CT,3SFE..CT210,ST215..4FC..TI

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

5AFE,7AFE,2CT,3CTE,3SFE..AT211,212,CT21#,ST215

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;5AFE,7AFE,3SFE..AT211,212,ST215..4FC

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-64450

2CT,3CTE..CT210,211,215

 1
27365 - PLATE, TERMINAL
27365-55080

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27384 - WASHER
27384-50030

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27387 - INSULATOR, TERMINAL
27387-42020

2CT..CT21#;4AGE,5AFE,7AFE,3SFE..AT21#,ST215..4FC

 1
27387-42021

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3SFE..AT21#,ST215..4FC

 1
27389 - INSULATOR, TERMINAL
27389-42010

3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC

 4
27411 - PULLEY, ALTERNATOR
27411-64360

2CT,3CTE..CT210,211,215

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AGE,5AFE,7AFE,2CT,3CTE,3SFE..AT21#,CT21#,ST215

 1
27700A - REGULATOR ASSY, GENERATOR
27700-62010

2CT,3CTE..CT21#

 1
Common parts
27446-64450
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
93319-14025
94150-80600
