CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)2CT..CT210 ; (9808- )3CTE..CT211

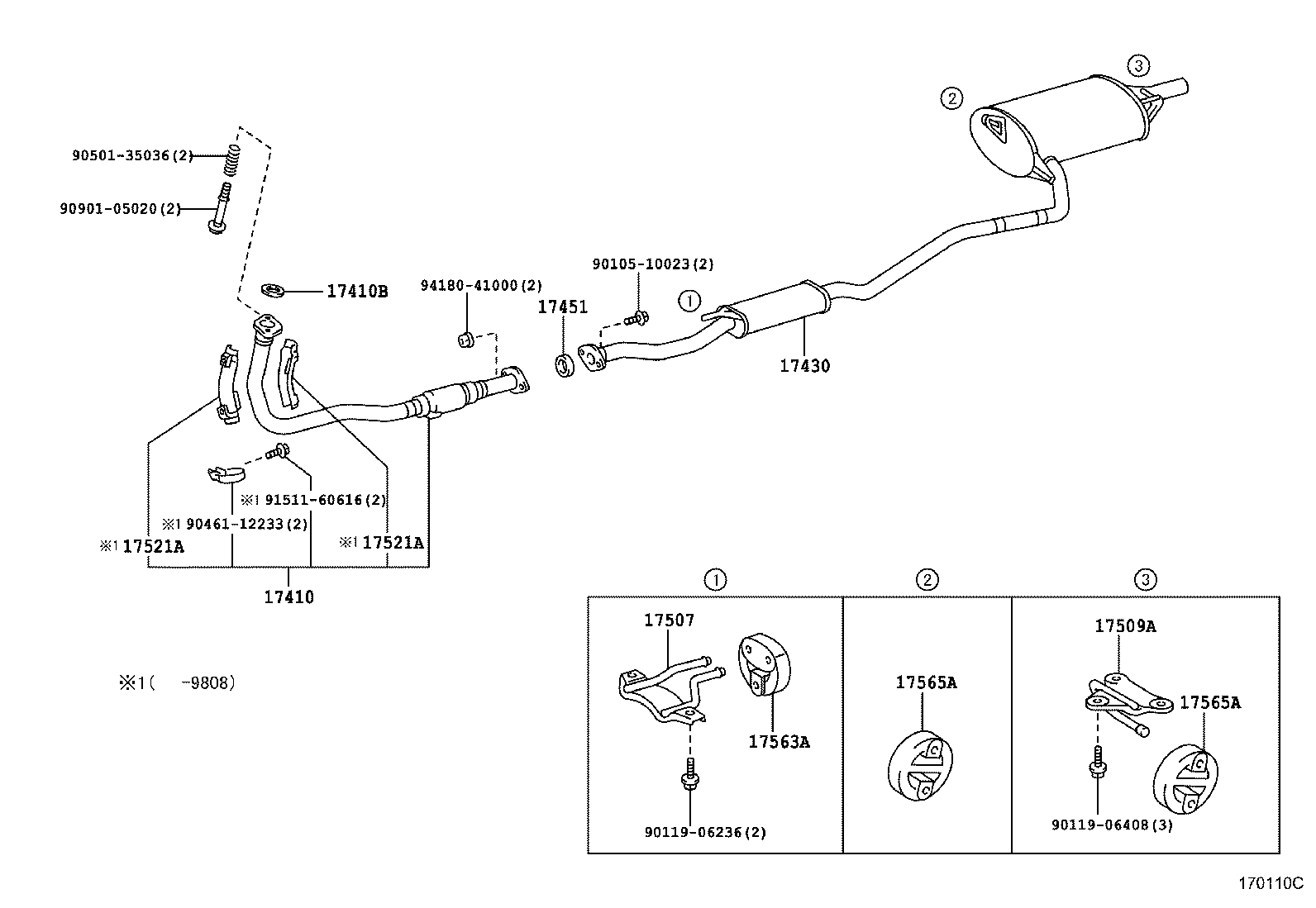

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17507 17509A 17521A 17521A 17563A 17565A 17565A 9010510023 9011906236 9011906408 9046112233 9050135036 9090105020 9151160616 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64670

2CT..CT210

 1
17410B - GASKET, EXHAUST PIPE
17451-64020

2CT..CT21#

 1
17451-64010

2CT,3CTE..CT21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A080

2CT..CT210

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

5AFE,2CT,3CTE..AT212,CT210,215,216

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-64080

2CT,3CTE..CT210,211

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-16060

4AGE,5AFE,7AFE,2CT,3CTE,3SFE..AT21#,CT21#,ST215

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64150

2CT..CT210

 2
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64150

2CT..CT210

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-64180

2CT,3CTE..CT210,211

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

4AGE,5AFE,7AFE,2CT,3CTE..AT21#,CT210,211

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

4AGE,5AFE,7AFE,2CT,3CTE..AT21#,CT210,211

 2
Common parts
90105-10023
90119-06236
90119-06408
90461-12233
90501-35036
90901-05020
91511-60616
94180-41000
