CT210-CEPMX (1996)
Toyota Carina Ff
Production
Aug 1996
-
Aug 1998
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )2CT,3CTE

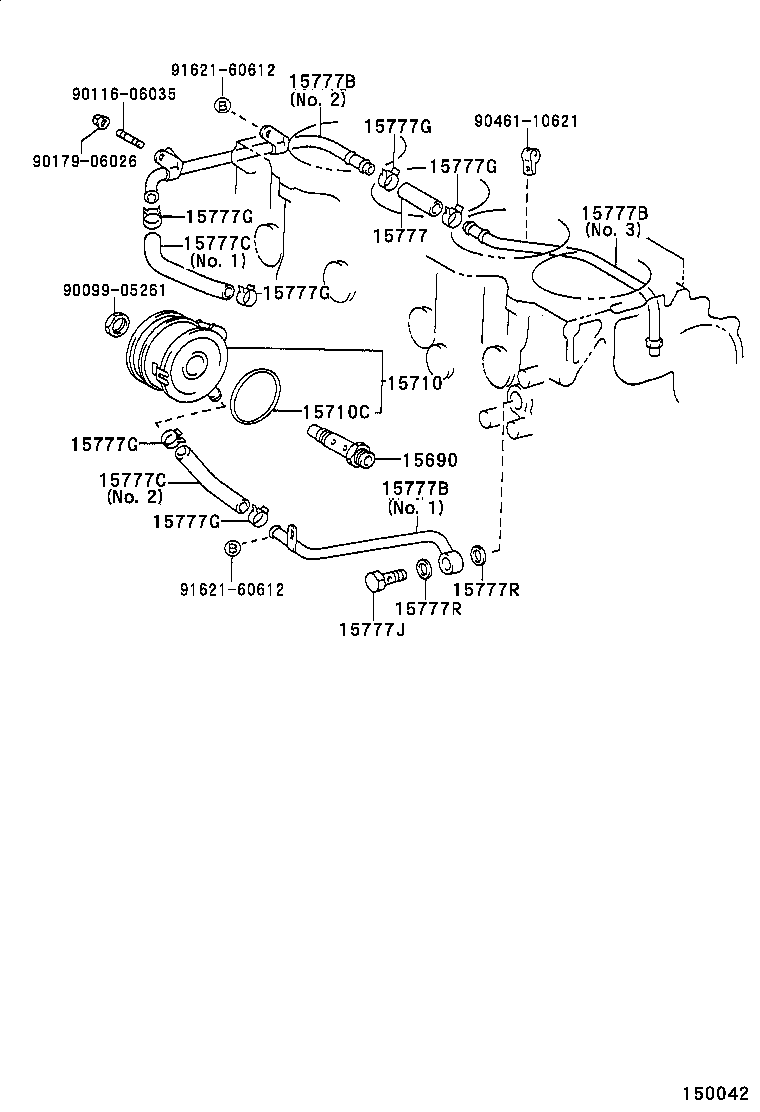

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15695-64020 |
2CT,3CTE..CT21# |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-64160 |
2CT,3CTE..CT21# |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90301-67004 |
2CT,3CTE..CT21# |
1 | ||
| 90301-67003 |
2CT..CT21# |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2CT,3CTE..CT21# |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64090 |
2CT,3CTE..CT21# NO.2 |
1 | ||
| 15769-64011 |
2CT,3CTE..CT21# NO.3 |
1 | ||
| 15768-64120 |
2CT,3CTE..CT210,211,215 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64090 |
2CT,3CTE..CT21# NO.2 |
1 | ||
| 15769-64011 |
2CT,3CTE..CT21# NO.3 |
1 | ||
| 15768-64120 |
2CT,3CTE..CT210,211,215 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64090 |
2CT,3CTE..CT21# NO.2 |
1 | ||
| 15769-64011 |
2CT,3CTE..CT21# NO.3 |
1 | ||
| 15768-64120 |
2CT,3CTE..CT210,211,215 NO.1 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15777-64060 |
2CT,3CTE..CT21# NO.1 |
1 | ||
| 15778-64040 |
2CT,3CTE..CT210,211,215 NO.2 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15777-64060 |
2CT,3CTE..CT21# NO.1 |
1 | ||
| 15778-64040 |
2CT,3CTE..CT210,211,215 NO.2 |
1 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CT,3CTE..CT21# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CT,3CTE..CT21# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CT,3CTE..CT21# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CT,3CTE..CT21# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CT,3CTE..CT21# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CT,3CTE..CT21# |
6 | ||
| 15777J - BOLT, UNION(FOR OIL COOLER PIPE) | ||||
| 90401-20004 |
2CT,3CTE..CT21# |
1 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20014 |
2CT,3CTE..CT21# |
2 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20014 |
2CT,3CTE..CT21# |
2 | ||
| Common parts | ||||
| 90099-05261 | ||||
| 90116-06035 | ||||
| 90179-06026 | ||||
| 90461-10621 | ||||
| 91621-60612 | ||||
