CT210-CEPMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )2CT,3CTE

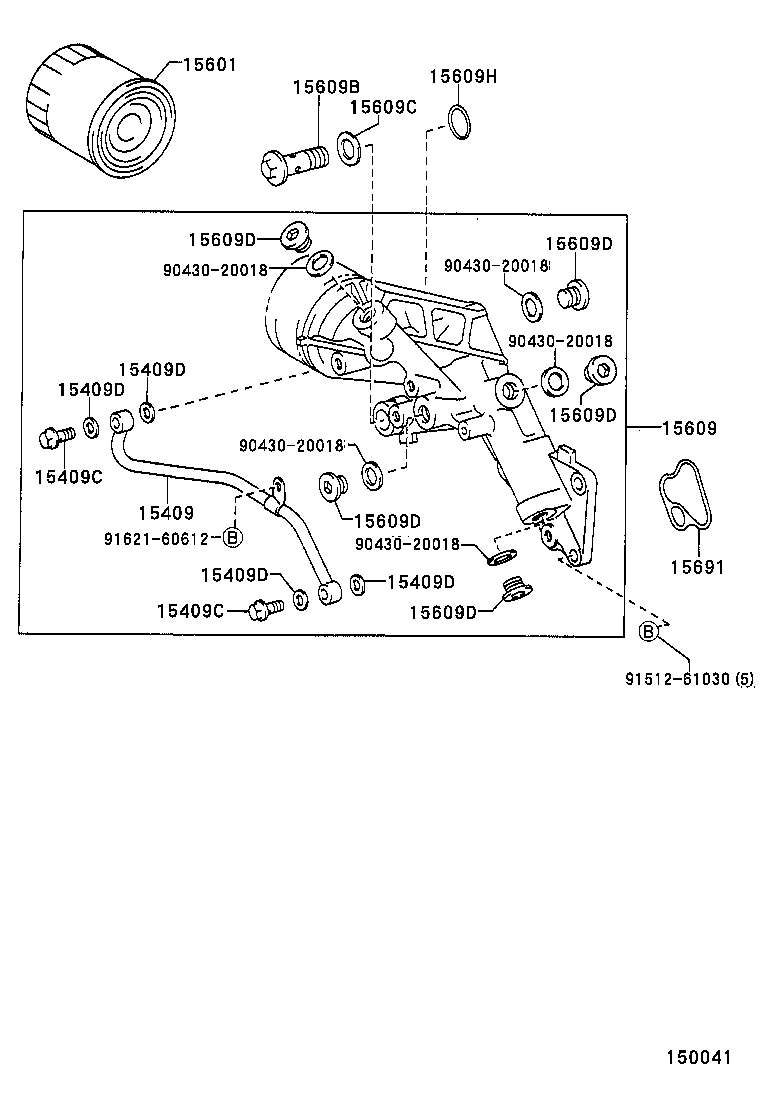

Click highlighted areas on diagram

diagram 15409 15409C 15409C 15409D 15409D 15409D 15409D 15601 15609 15609B 15609C 15609D 15609D 15609D 15609D 15609D 15609H 15691 9043020018 9043020018 9043020018 9043020018 9043020018 9151261030 9162160612
Part # Description Qty Price
15409 - PIPE OR HOSE, OIL FILTER OUTLET
15431-64061

2CT,3CTE..CT21#

 1
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90401-10031

2CT,3CTE..CT21#

 2
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90401-10031

2CT,3CTE..CT21#

 2
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015

2CT,3CTE..CT21#

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015

2CT,3CTE..CT21#

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015

2CT,3CTE..CT21#

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015

2CT,3CTE..CT21#

 4
15601 - FILTER SUB-ASSY, OIL
90915-30003

2CT,3CTE..CT21#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-64070

2CT,3CTE..CT21#

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90401-18020

2CT,3CTE..CT21#

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-20014

2CT,3CTE..CT21#

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2CT,3CTE..CT21#

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2CT,3CTE..CT21#

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2CT,3CTE..CT21#

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2CT,3CTE..CT21#

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2CT,3CTE..CT21#

 5
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-22004

2CT,3CTE..CT21#

 1
15691 - GASKET, OIL FILTER
15691-64041

2CT,3CTE..CT21#

 1
15691-64040

2CT..CT21#

 1
Common parts
90430-20018
91512-61030
91621-60612
