CT210-CEMMX (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

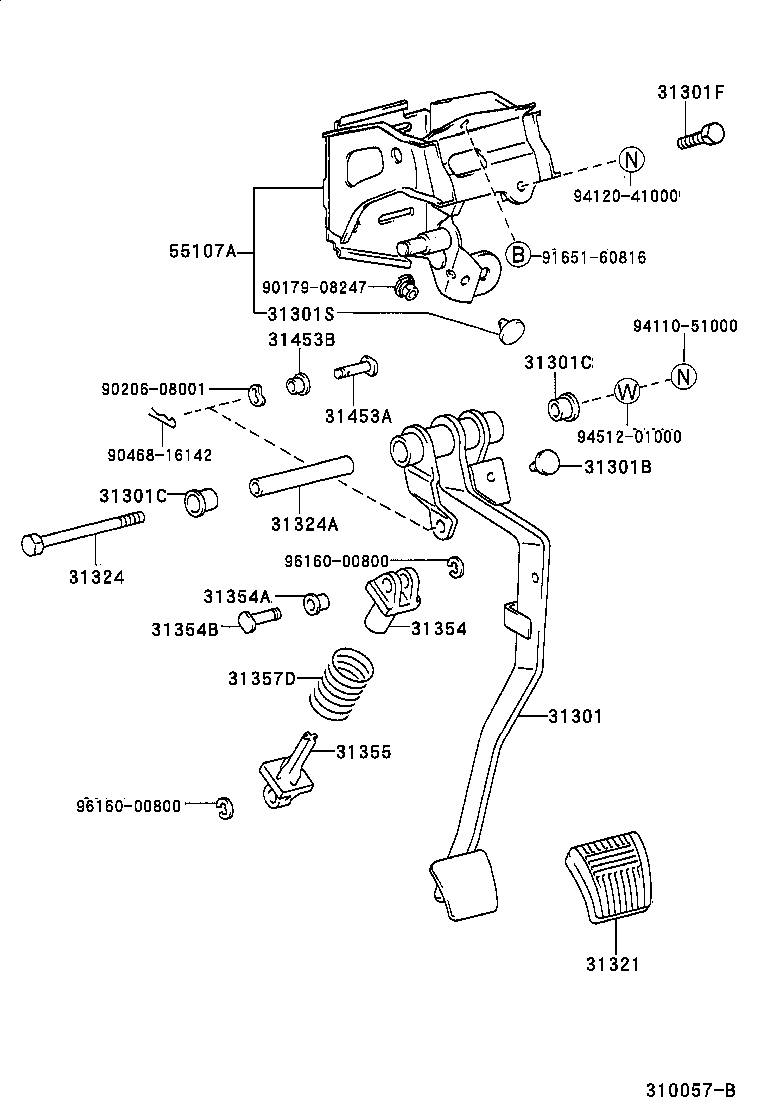

ILLUST NO. 1 OF 2(9608- )CT210,211,215..5F

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301S 31321 31324 31324A 31354 31354A 31354B 31355 31357D 31453A 31453B 55107A 9017908247 9020608001 9046816142 9165160816 9411051000 9412041000 9451201000 9616000800 9616000800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20490

CT21#..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AT21#,CT210,211,215,ST215..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT21#,CT210,211,215,ST215..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT21#,CT210,211,215,ST215..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT21#,CT210,211,215,ST215..MTM

 1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036

AT21#,CT210,211,215,ST215..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AT21#,CT210,211,215,ST215..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10100

AT21#,CT210,211,215,ST215..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10002

AT21#,CT210,211,215,ST215..MTM

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-20030

CT210,211,215..5F

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

CT210,211,215..5F

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

CT210,211,215..5F

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20030

CT210,211,215..5F

 1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-50017

CT21#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT21#,CT210,211,215,ST215..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT21#,CT210,211,215,ST215..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20370

CT21#..5F

 1
55107-20380

CT21#..5F

 1
Common parts
90179-08247
90206-08001
90468-16142
91651-60816
94110-51000
94120-41000
94512-01000
96160-00800

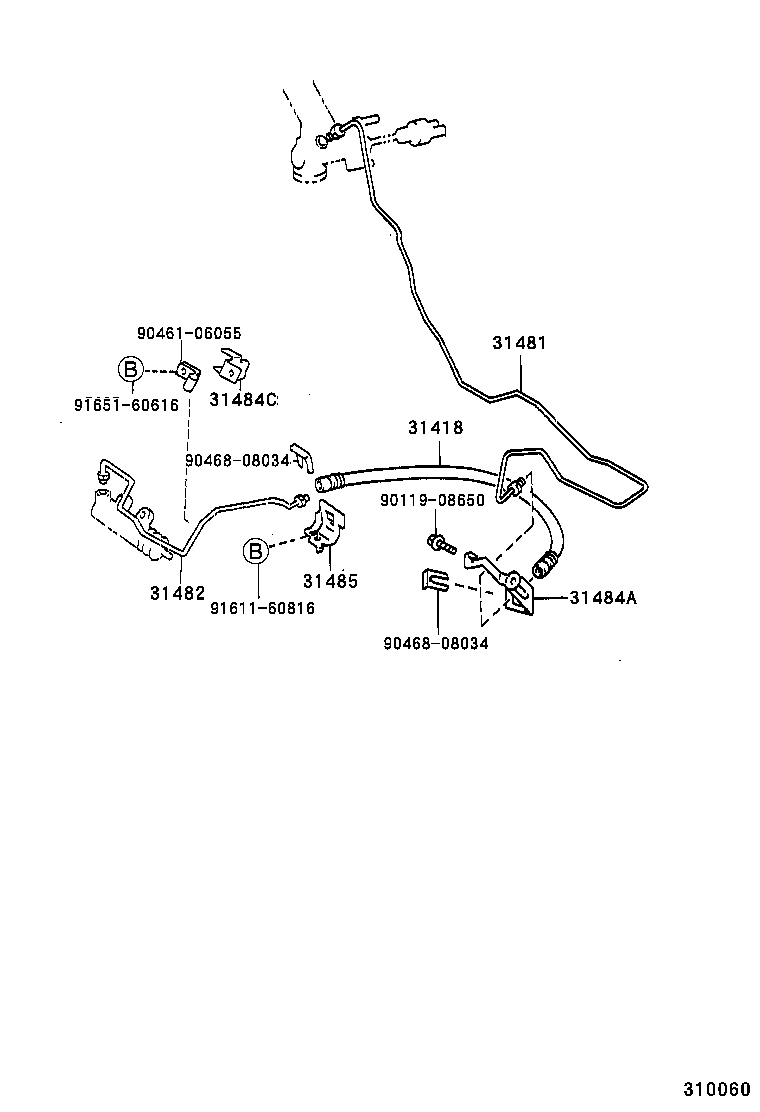

ILLUST NO. 2 OF 2(9608- )CT210,211..5F

Click highlighted areas on diagram

diagram 31418 31481 31482 31484A 31484C 31485 9011908650 9046106055 9046808034 9046808034 9161160816 9165160616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01116

AT21#,CT210,211,215,ST215..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20760

ST215..5F..SI;AT21#,CT210,211,215..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20490

CT210,211..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20540

AT21#,CT210,211,215,ST215..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

CT210,211,ST215..5F..TI

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20511

CT210,211,ST215..5F

 1
Common parts
90119-08650
90461-06055
90468-08034
91611-60816
91651-60616
