CT195-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )CT19#

Click highlighted areas on diagram

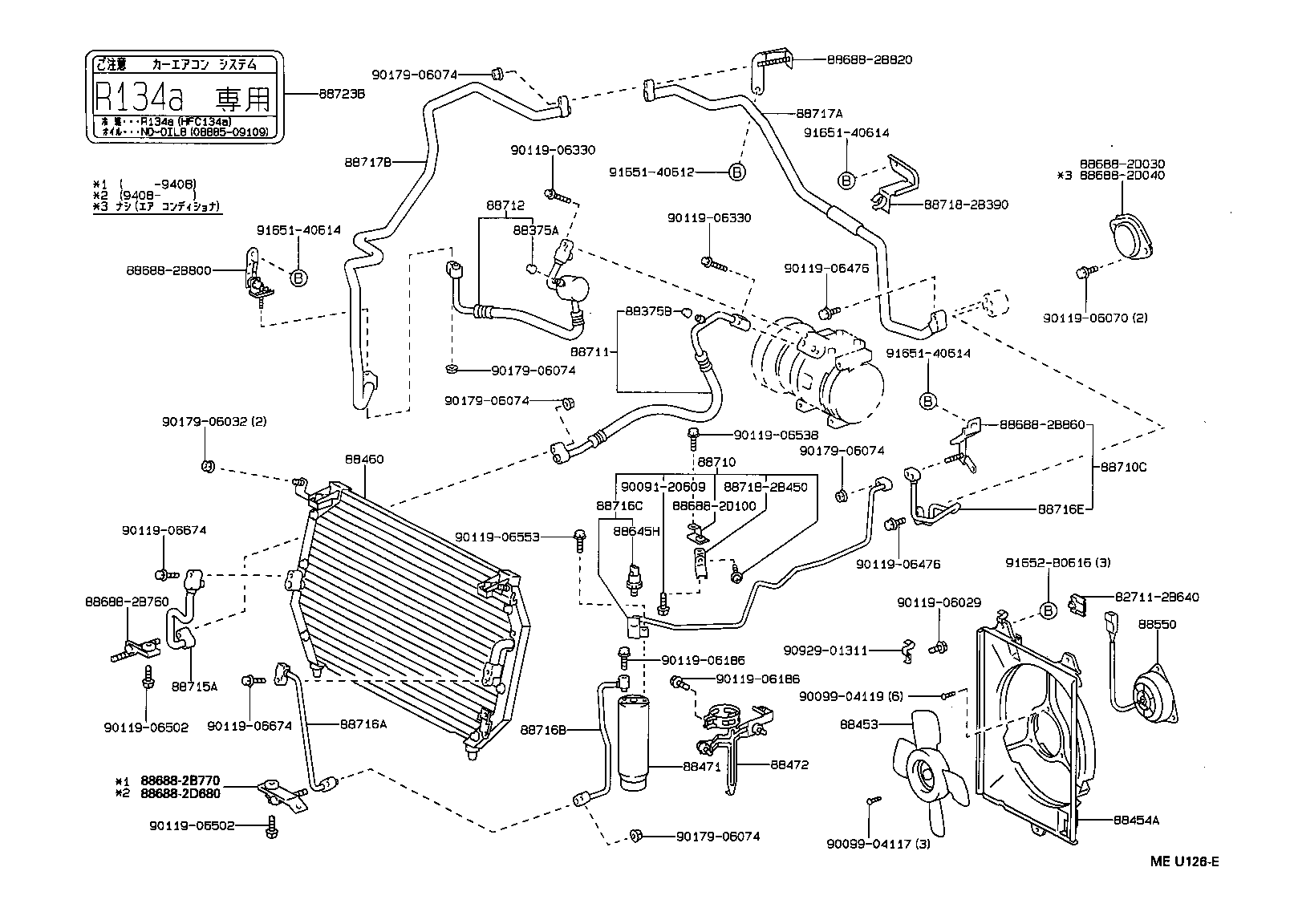

MAKER OPTION

diagram 827112B640 88375A 88375B 88453 88454A 88460 88471 88472 88550 88645H 886882B760 886882B770 886882B800 886882B820 886882B860 886882D030 886882D040 886882D100 886882D680 88710 88710C 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717B 887182B390 887182B450 88723B 9009120609 9009904117 9009904119 9011906029 9011906070 9011906186 9011906186 9011906330 9011906330 9011906476 9011906476 9011906502 9011906502 9011906538 9011906553 9011906674 9011906674 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9092901311 9165140612 9165140614 9165140614 9165140614 91652B0616
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT19#,CT19#,ST19#

 1
88375-30290

CT19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20090

CT195;CT190..ATM

 1
88454A - SHROUD, FAN
88454-20121

CT195;CT190..ATM

 1
88454-20122

CT195;CT190..ATM

 1
88460 - CONDENSER ASSY, COOLER
88460-20400

CT19#..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88460-20380

CT19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT19#,CT19#,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64070

CT195;CT190..ATM

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT19#,CT19#,ST19#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20240

CT19#

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-20260

CT19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B050

CT195

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B340

CT195

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT19#,CT19#,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT19#,CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-20340

CT19#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

AT19#,CT19#,ST19#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B290

CT195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B170

CT19#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B200

CT19#

 1
88717-2B201

CT19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

AT19#,CT19#,ST19#

 1
Common parts
82711-2B640
88688-2B760
88688-2B770
88688-2B800
88688-2B820
88688-2B860
88688-2D030
88688-2D040
88688-2D100
88688-2D680
88718-2B390
88718-2B450
90091-20609
90099-04117
90099-04119
90119-06029
90119-06070
90119-06186
90119-06330
90119-06476
90119-06502
90119-06538
90119-06553
90119-06674
90179-06032
90179-06074
90929-01311
91651-40612
91651-40614
91652-B0616

(9208- )CT19#

Click highlighted areas on diagram

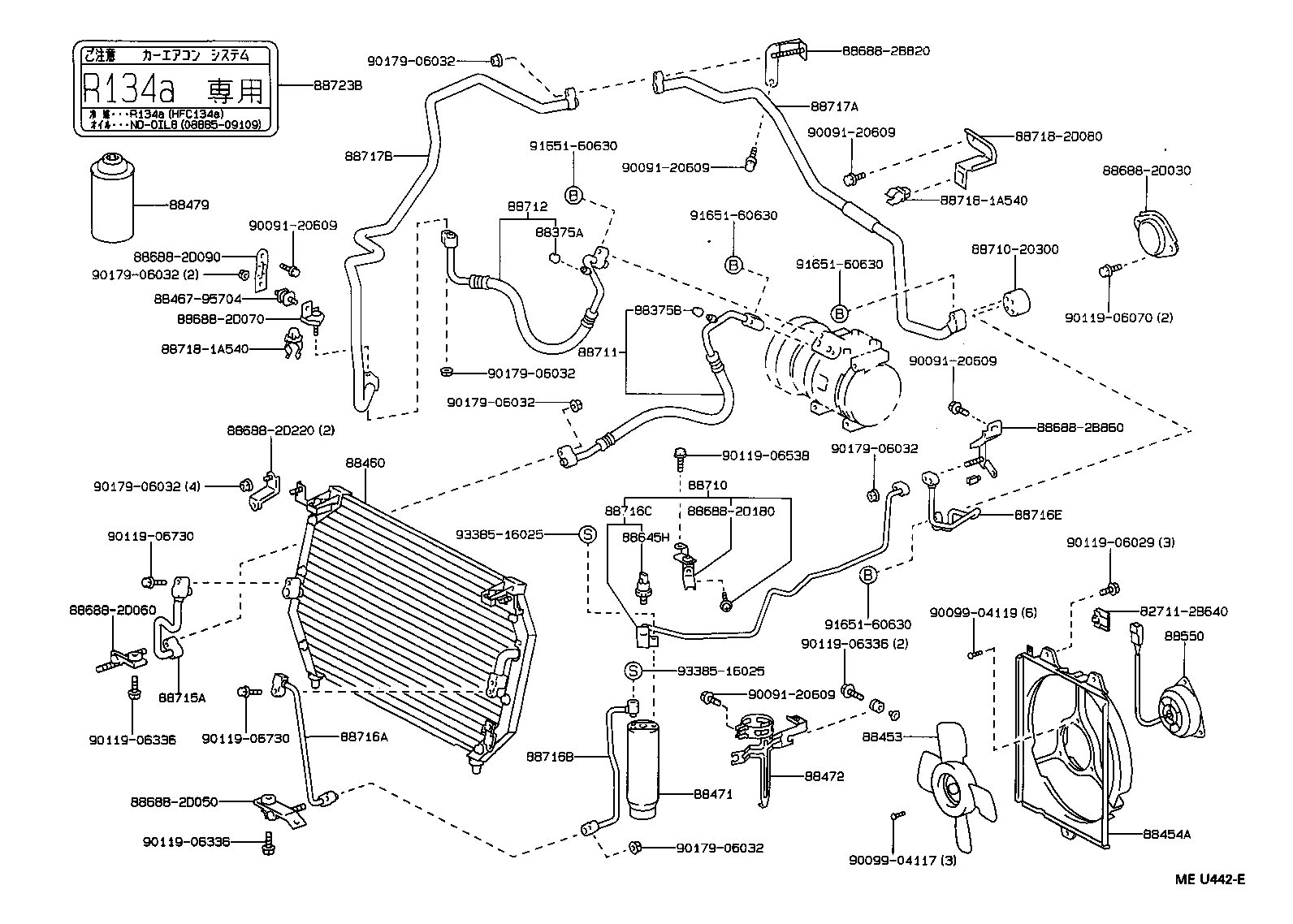

DEALER OPTION

diagram 827112B640 88375A 88375B 88453 88454A 88460 8846795704 88471 88472 88479 88550 88645H 886882B820 886882B860 886882D030 886882D050 886882D060 886882D070 886882D090 886882D180 886882D220 88710 8871020300 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717B 887181A540 887181A540 887182D080 88723B 9009120609 9009120609 9009120609 9009120609 9009120609 9009904117 9009904119 9011906029 9011906070 9011906336 9011906336 9011906336 9011906538 9011906730 9011906730 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9165160630 9165160630 9165160630 9165160630 9338516025 9338516025
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT19#,CT19#,ST19#

 1
88375-30290

CT19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20090

CT195;CT190..ATM

 1
88454A - SHROUD, FAN
88454-20121

CT195;CT190..ATM

 1
88454-20122

CT195;CT190..ATM

 1
88460 - CONDENSER ASSY, COOLER
88460-20400

CT19#..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88460-20380

CT19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT19#,CT19#,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20140

CT19#,ST19#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

AT192,CT19#,ST19#..SG,SX

250G

 3
90986-02007

AT19#,CT19#,ST19#..SG,SGI,SX

250G

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64070

CT195;CT190..ATM

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT19#,CT19#,ST19#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20240

CT19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B050

CT195

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B340

CT195

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT19#,CT19#,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT19#,CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-20340

CT19#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

AT19#,CT19#,ST19#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B290

CT195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B170

CT19#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B200

CT19#

 1
88717-2B201

CT19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

AT19#,CT19#,ST19#

 1
Common parts
82711-2B640
88467-95704
88688-2B820
88688-2B860
88688-2D030
88688-2D050
88688-2D060
88688-2D070
88688-2D090
88688-2D180
88688-2D220
88710-20300
88718-1A540
88718-2D080
90091-20609
90099-04117
90099-04119
90119-06029
90119-06070
90119-06336
90119-06538
90119-06730
90179-06032
91651-60630
93385-16025

(9208- )

Click highlighted areas on diagram

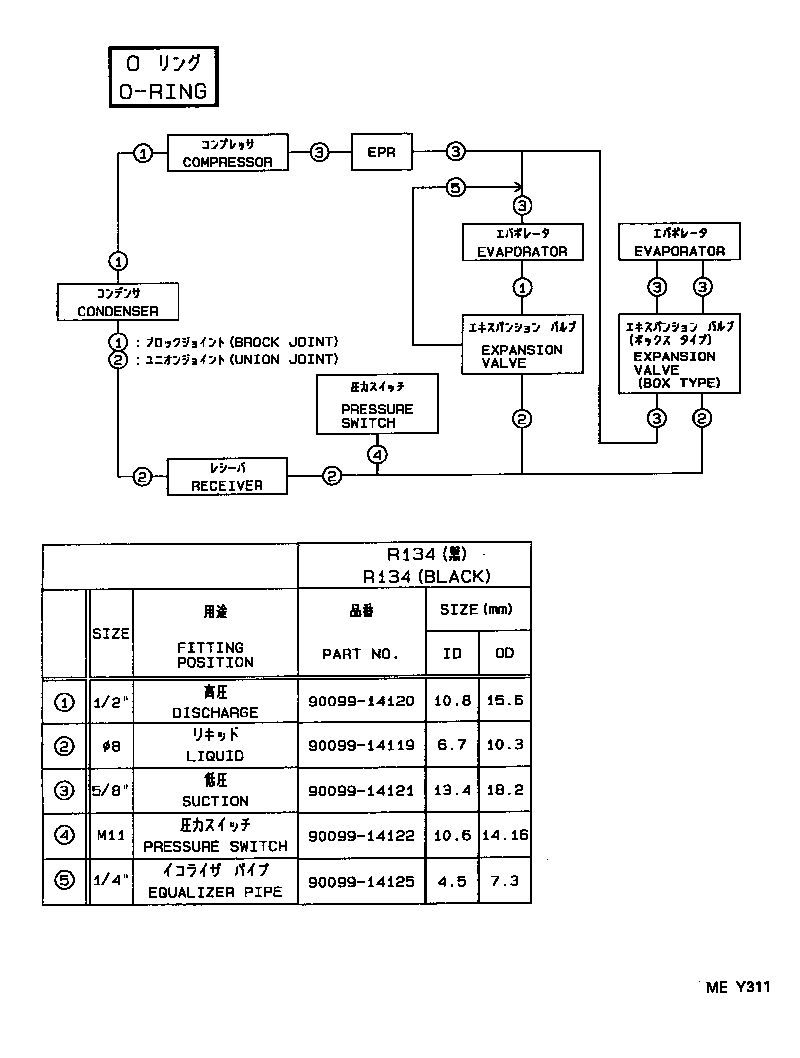

O RING

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
