CT195-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

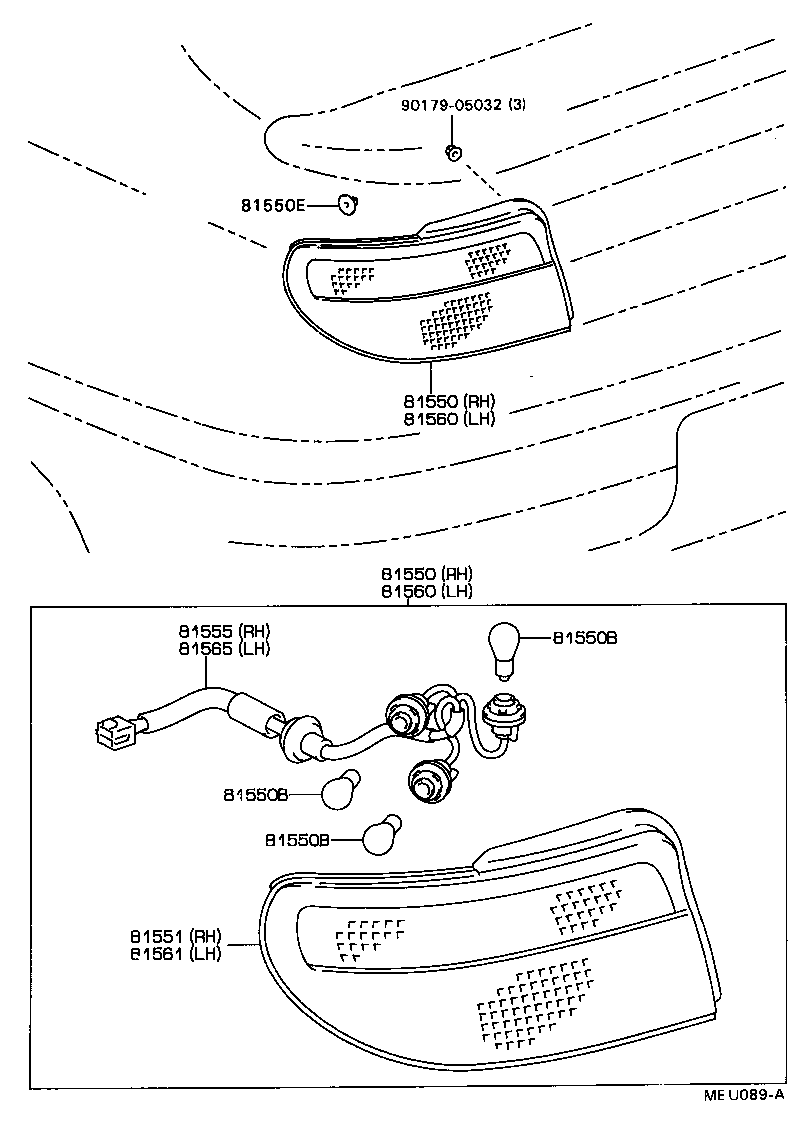

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550E 81551 81555 81560 81560 81561 81565 9017905032
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B321

AT19#,CT19#,ST195

 1
81550-2B320

AT19#,CT19#,ST19#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B321

AT19#,CT19#,ST195

 1
81550-2B320

AT19#,CT19#,ST19#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT19#,CT19#,ST19#

12V 21W

 4
99132-21210

AT19#,CT19#,ST19#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT19#,CT19#,ST19#

12V 21W

 4
99132-21210

AT19#,CT19#,ST19#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT19#,CT19#,ST19#

12V 21W

 4
99132-21210

AT19#,CT19#,ST19#

12V 21/5W

 2
81550E - CLIP(FOR REAR COMBINATION LAMP)
90467-0505122

AT19#,CT19#,ST195..SG,SGI,SX

BLACK,TRIM1#,4#

 4
90467-0505122

AT19#,CT19#,ST195..SG,SGI

BLACK,TRIM1#,4#

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B321

AT19#,CT19#,ST195

 1
81551-2B320

AT19#,CT19#,ST19#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B320

AT19#,CT19#,ST19#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B261

AT19#,CT19#,ST195

 1
81560-2B260

AT19#,CT19#,ST19#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B261

AT19#,CT19#,ST195

 1
81560-2B260

AT19#,CT19#,ST19#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B261

AT19#,CT19#,ST195

 1
81561-2B260

AT19#,CT19#,ST19#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B320

AT19#,CT19#,ST19#

 1
Common parts
90179-05032
