CT190-CEPNS (1992)
Toyota Carina Ff

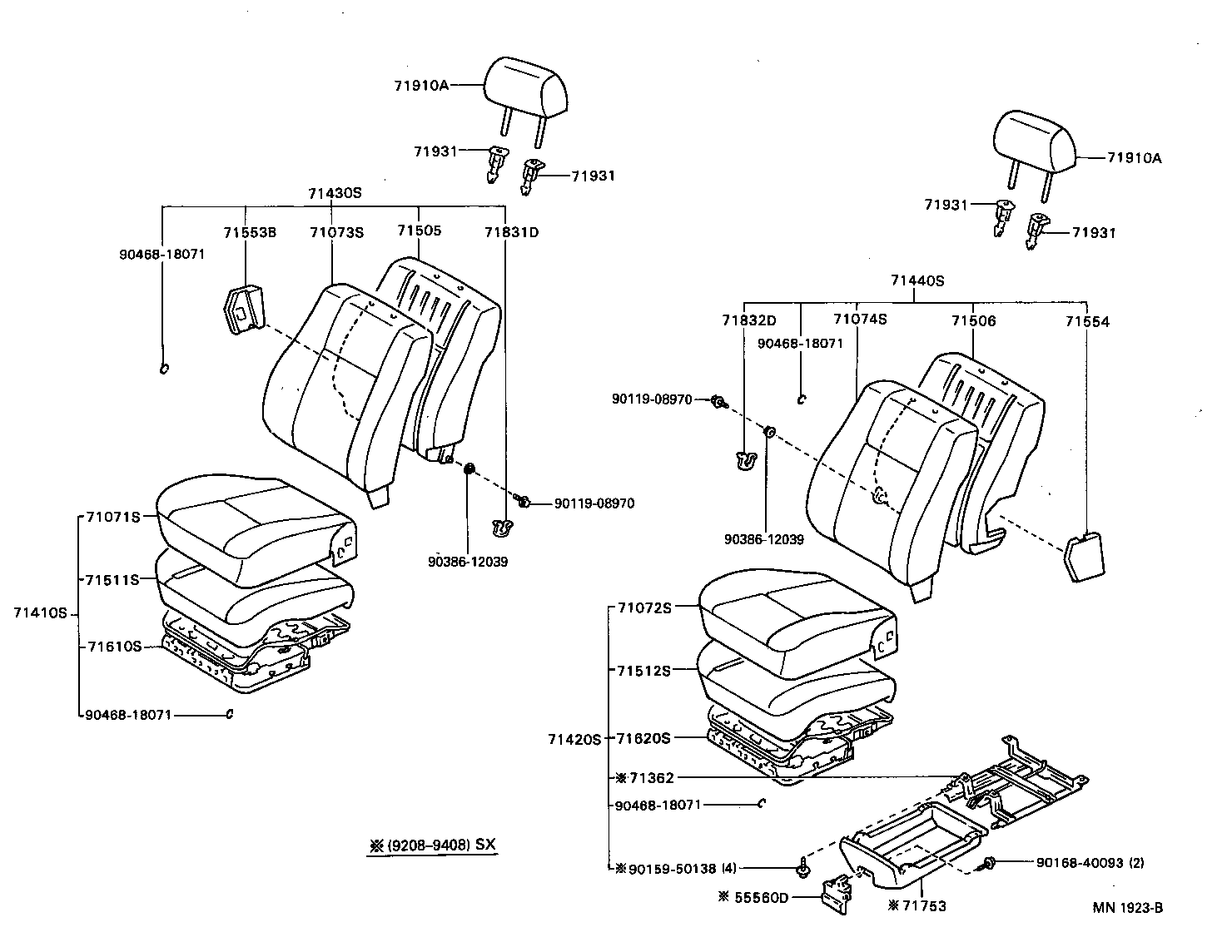

ILLUST NO. 1 OF 2(9208- )SG,SGI,SX ; (9408- )SXI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,BLACK,TRIM1#,4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G310E0 |
AT19#,CT19#,ST195..SG,SGI DK.ROSE,TRIM4# |
1 | ||
| 71071-2G320B2 |
CT190..SG ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71071-2G310E3 |
AT19#,CT19#,ST195..SG,SGI ANTELOPE,TRIM4# |
1 | ||
| 71071-2G321B3 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2G310B1 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
1 | ||
| 71071-2G321E2 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71071-2G320E1 |
CT190..SG ﾏｲﾛ-ﾄﾞ,DK. ROSE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D690B2 |
CT190..SG ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072-2D690E1 |
CT190..SG ﾏｲﾛ-ﾄﾞ,ROSE,TRIM4# |
1 | ||
| 71072-2D680E0 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
1 | ||
| 71072-2D680E3 |
AT19#,CT19#,ST195..SG,SGI ANTELOPE,TRIM4# |
1 | ||
| 71072-2D691E2 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71072-2D691B3 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D680B1 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G150E1 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
1 | ||
| 71073-2G160B3 |
CT190..SG ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2G150E4 |
AT19#,CT19#,ST195..SG,SGI ANTELOPE,TRIM4# |
1 | ||
| 71073-2G150B2 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
1 | ||
| 71073-2G161E3 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71073-2G160E2 |
CT190..SG ﾏｲﾛ-ﾄﾞ,ROSE,TRIM4# |
1 | ||
| 71073-2G161B4 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D650E1 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
1 | ||
| 71074-2D660B3 |
CT190..SG ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71074-2D660E2 |
CT190..SG ﾏｲﾛ-ﾄﾞ,ROSE,TRIM4# |
1 | ||
| 71074-2D650B2 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
1 | ||
| 71074-2D661B4 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D661E3 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71074-2D650E4 |
AT19#,CT19#,ST195..SG,SGI ANTELOPE,TRIM4# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20130 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G880B0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G870B0 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G880E0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,DK.ROSE,TRIM4# |
1 | ||
| 71410-2G870E0 |
AT19#,CT19#,ST195..SG,SGI ***,DK.ROSE,TRIM4# |
1 | ||
| 71410-2G881B1 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G870E3 |
AT19#,CT19#,ST195..SG,SGI ***,ANTELOPE,TRIM4# |
1 | ||
| 71410-2G870B2 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G881E2 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2G490B0 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G490E0 |
AT19#,CT19#,ST195..SG,SGI ***,DK.ROSE,TRIM4# |
1 | ||
| 71420-2G490B2 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G490E3 |
AT19#,CT19#,ST195..SG,SGI ***,ANTELOPE,TRIM4# |
1 | ||
| 71420-2G501B1 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G501E2 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71420-2G500B0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G500E0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,DK.ROSE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2G700B0 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G700E0 |
AT19#,CT19#,ST195..SG,SGI ***,DK.ROSE,TRIM4# |
1 | ||
| 71430-2G710B0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G711B1 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G700E3 |
AT19#,CT19#,ST195..SG,SGI ***,ANTELOPE,TRIM4# |
1 | ||
| 71430-2G710E0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,DK.ROSE,TRIM4# |
1 | ||
| 71430-2G700B2 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G711E2 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G330E0 |
AT19#,CT19#,ST195..SG,SGI ***,DK.ROSE,TRIM4# |
1 | ||
| 71440-2G330B2 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G330E3 |
AT19#,CT19#,ST195..SG,SGI ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-2G330B0 |
AT19#,CT19#,ST195..SG,SGI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G340E0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,DK.ROSE,TRIM4# |
1 | ||
| 71440-2G341E2 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
1 | ||
| 71440-2G340B0 |
CT190..SG ***,ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G341B1 |
CT190..SG ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20260 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20210 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20660 |
AT19#,CT19#,ST19#..SG,SGI,SX |
1 | ||
| 71511-20610 |
AT19#,CT19#,ST195..SG,SGI,SX,SXI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20660 |
AT19#,CT19#,ST19#..SG,SGI,SX |
1 | ||
| 71511-20610 |
AT19#,CT19#,ST195..SG,SGI,SX,SXI |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20290 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20240 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20490 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20290 |
AT19#,CT19#,ST19# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20080 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AT19#,CT19#,ST19# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AT19#,CT19#,ST19# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B620E0 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
2 | ||
| 71910-2B620B2 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
2 | ||
| 71910-2B620B0 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
2 | ||
| 71910-2B630B0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B630E0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,ROSE,TRIM4# |
2 | ||
| 71910-2B621E3 |
AT19#,CT19#,ST195..SG,SGI ANTELOPE,TRIM4# |
2 | ||
| 71910-2B620E2 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
2 | ||
| 71910-2B631B1 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B631E1 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
2 | ||
| 71910-2B621B2 |
AT19#,CT19#,ST195..SG,SGI BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B620E0 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
2 | ||
| 71910-2B620B2 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
2 | ||
| 71910-2B620B0 |
AT19#,CT19#,ST195..SG,SGI GRAY,TRIM1# |
2 | ||
| 71910-2B630B0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B630E0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,ROSE,TRIM4# |
2 | ||
| 71910-2B621E3 |
AT19#,CT19#,ST195..SG,SGI ANTELOPE,TRIM4# |
2 | ||
| 71910-2B620E2 |
AT19#,CT19#,ST195..SG,SGI ROSE,TRIM4# |
2 | ||
| 71910-2B631B1 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B631E1 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,ANTELOPE,TRIM4# |
2 | ||
| 71910-2B621B2 |
AT19#,CT19#,ST195..SG,SGI BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71931-10020E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-1007003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-1002003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070E9 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71931-10020E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-1007003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-1002003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070E9 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71931-10020E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-1007003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-1002003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070E9 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71931-10020E6 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-1007003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-1002003 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070E6 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,DK. ROSE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-10070P0 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070E9 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71931-20090E0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI ﾛｯｸ無,DK. ROSE,TRIM4# |
2 | ||
| 71931-32020E5 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT19#,CT19#,ST195 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20090B0 |
AT19#,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90159-50138 | ||||
| 90168-40093 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||

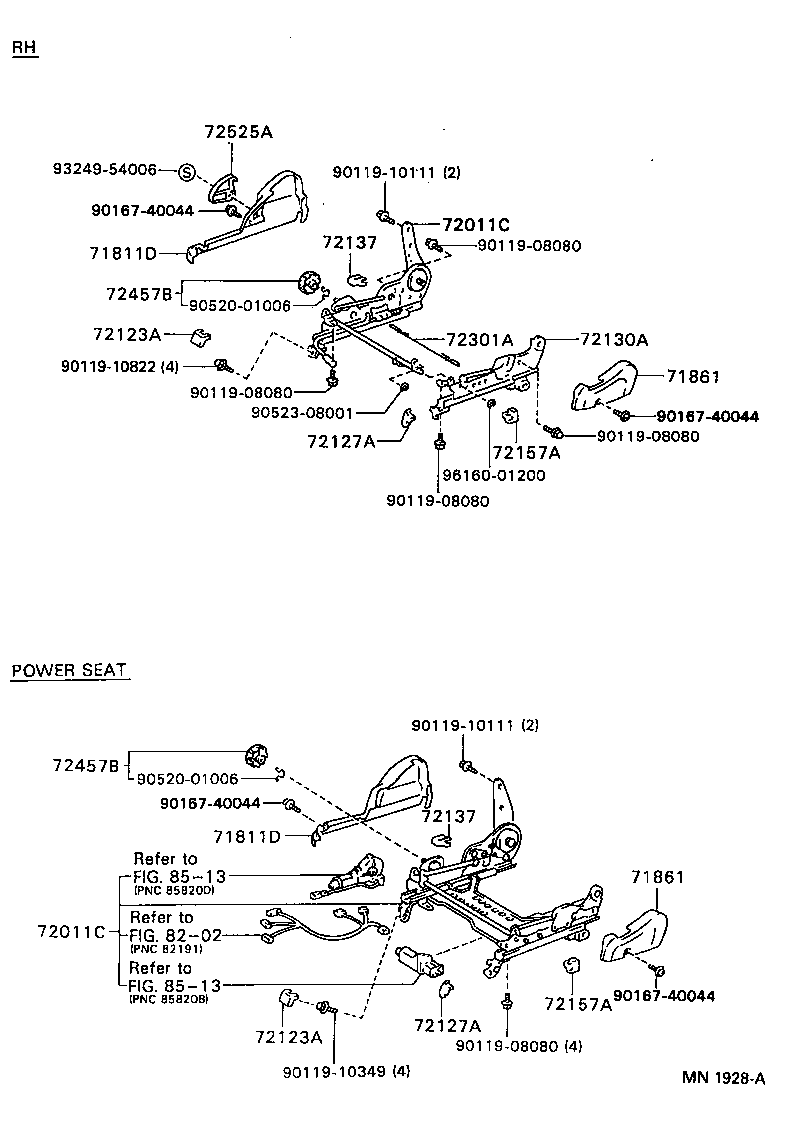

ILLUST NO. 2 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20230E1 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 71811-20230B2 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20230E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20230E1 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 71811-20230B2 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20230E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 71861-20040E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 71861-20040B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 71861-20040E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 71861-20040B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20360 |
AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
1 | ||
| 72010-20361 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20360 |
AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
1 | ||
| 72010-20361 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20140B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-20140E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20140B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-20140E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20060E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72127-20060B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20060E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72127-20060B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20361 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 72130-20360 |
AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20070C0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 72137-20070E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 72137-20070B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20070C0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 72137-20070E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 72137-20070B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20030B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20030E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72157-20030C0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20030B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20030E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72157-20030C0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72457-18010E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 72457-18010B3 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72457-18010E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 72457-18010B3 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100E1 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72525-12100P0 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90119-10822 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||

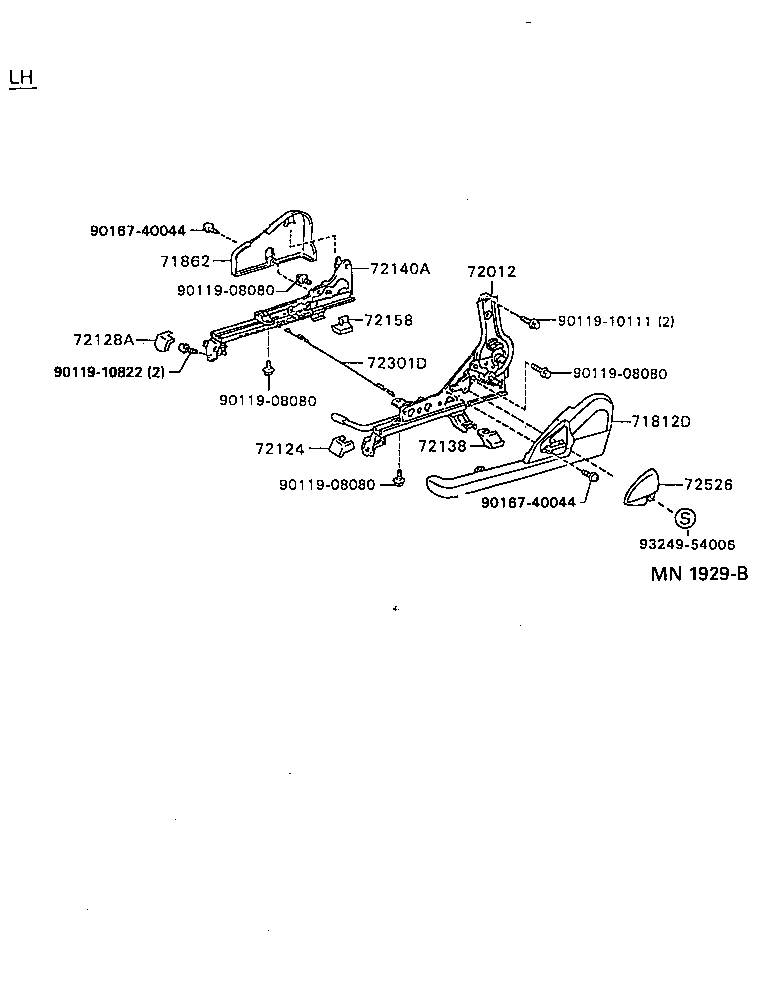

ILLUST NO. 2 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20200E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 71812-20200E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20040E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 71862-20040B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20040E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20331 |
AT19#,CT19#,ST19# |
1 | ||
| 72020-20330 |
AT19#,CT19#,ST19# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20140E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 72123-20140B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20050B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-20050E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20040B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-20040C0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 72138-20040E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20321 |
AT19#,CT19#,ST19# |
1 | ||
| 72140-20320 |
AT19#,CT19#,ST19# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20020B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-20020E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 72158-20020C0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AT19#,CT19#,ST19# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 72526-12040E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10822 | ||||
| 90167-40044 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
