CT190-CEPNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

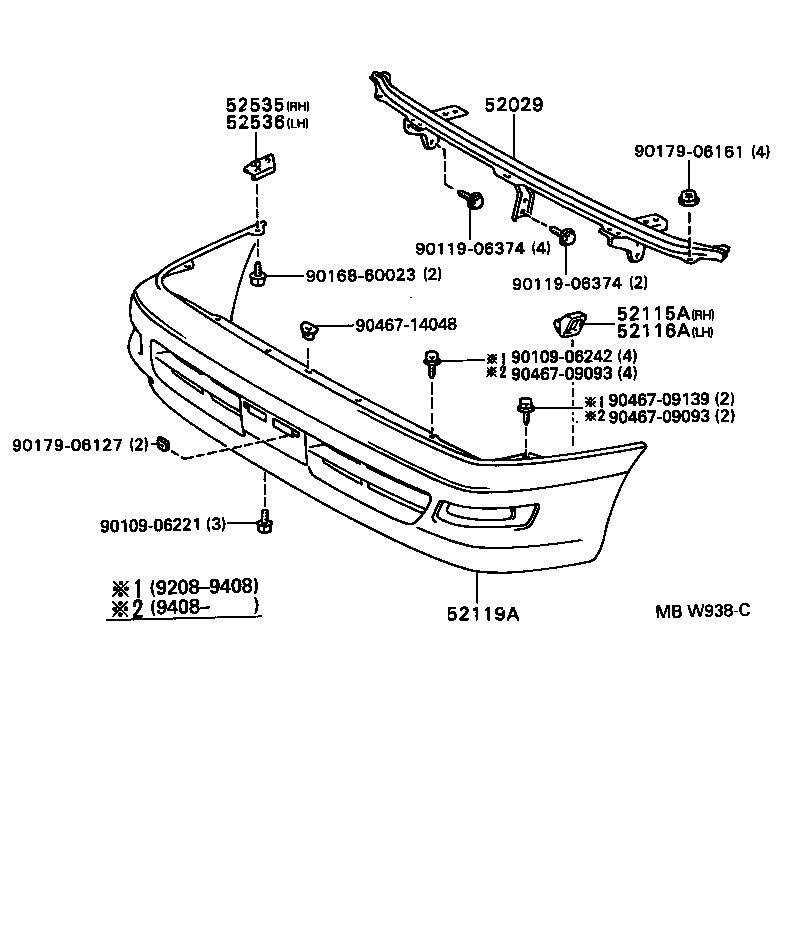

Click highlighted areas on diagram

diagram 52029 52115A 52116A 52119A 52535 52536 9010906221 9010906242 9011906374 9011906374 9016860023 9017906127 9017906161 9046709093 9046709093 9046709139 9046714048
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20040

AT19#,CT19#,ST19#

 1
52029-20041

AT19#,CT19#,ST195

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20310

AT19#,CT19#,ST19#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-20310

AT19#,CT19#,ST19#

 1
52119A - COVER, FRONT BUMPER
52119-2B080B0

AT19#,CT19#,ST19#

DARK BLUEISH GRAY ME,183

 1
52119-2B080F0

AT19#,CT19#,ST19#

PALE YELLOW OPAL,574

 1
52119-2B080G0

AT19#,CT19#,ST19#

DK.MOSS GREEN MICA M,6M4

 1
52119-2B080A0

AT19#,CT19#,ST19#

SUPER WHITE 2,040

 1
52119-2B080D0

AT19#,CT19#,ST19#

WINE RED MICA,3J8

 1
52119-2B080D1

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

LIGHT BEIGE ME,3K9

 1
52119-2B270A0

AT19#,CT19#,ST195

SUPER WHITE 2,040

 1
52119-2B270B0

AT19#,CT19#,ST195

DK.BL.GRAY ME,183

 1
52119-2B270G0

AT19#,CT190..SG,SGI,SX,SXI

DK GREEN MICA,6M1

 1
52119-2B270F0

AT19#,CT19#,ST195

PL.YELLOW OP,574

 1
52119-2B080H0

AT19#,CT19#,ST19#

MEDIUM TORQUOISE ME,749

 1
52119-2B270C0

AT19#,CT19#,ST195

BLACK ME,205

 1
52119-2B270J0

AT19#,CT19#,ST195

DK.BLUE MM,8G5

 1
52119-2B270D0

AT19#,CT19#,ST195

WINE RED MC,3J8

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20060

AT19#,CT19#,ST19#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20060

AT19#,CT19#,ST19#

 1
Common parts
90109-06221
90109-06242
90119-06374
90168-60023
90179-06127
90179-06161
90467-09093
90467-09139
90467-14048
