CT190-CEPNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

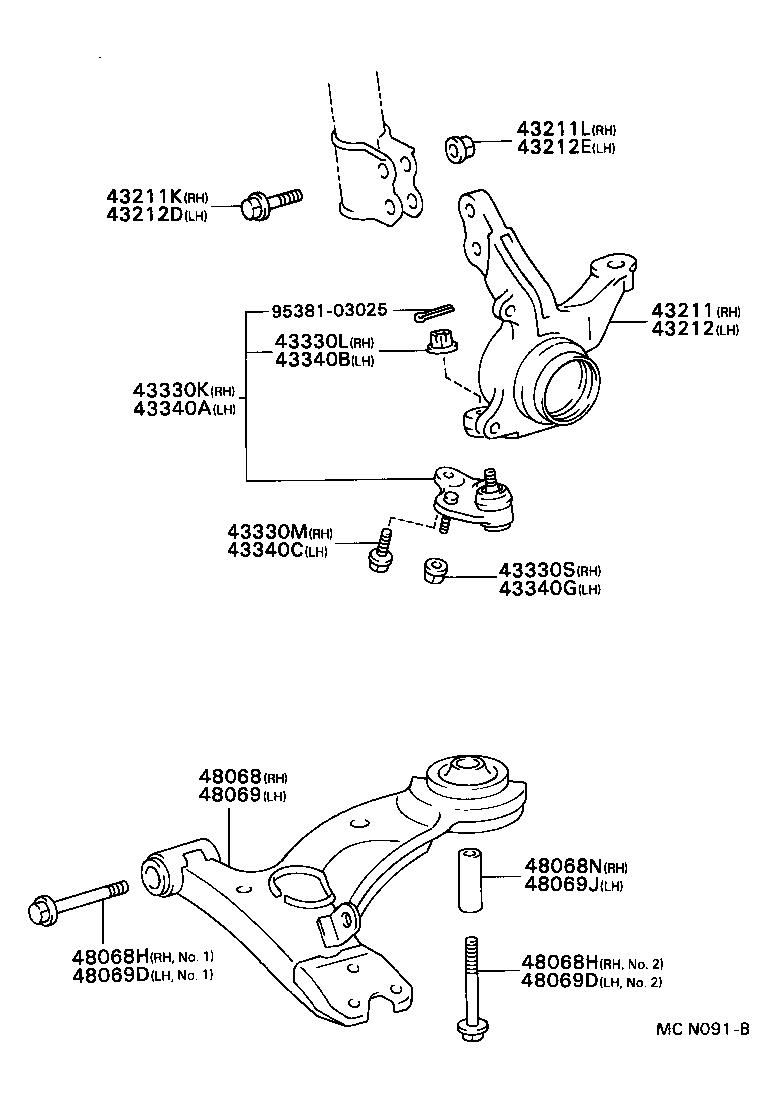

ILLUST NO. 1 OF 2(9208-9601)

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068H 48068N 48069 48069D 48069D 48069J 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20210

AT19#,CT190,ST190

 1
43211-20300

AT19#,CT190

 1
43211-20220

CT190;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43211-20221

CT190;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT19#,CT19#,ST19#

外径=13.3

 1
90105-15001

AT19#,CT19#,ST19#

外径=15.0

 2
90105-15004

AT19#,CT19#,ST19#

外径=13.9

 1
90105-15006

AT19#,CT19#,ST19#

外径=12.4

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

AT19#,CT19#,ST19#

 2
43212 - KNUCKLE, STEERING, LH
43212-20180

CT190;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43212-20170

AT19#,CT190,ST190

 1
43212-20181

CT190;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43212-20300

AT19#,CT190

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT19#,CT19#,ST19#

外径=15.0

 2
90105-15006

AT19#,CT19#,ST19#

外径=12.4

 1
90105-15004

AT19#,CT19#,ST19#

外径=13.9

 1
90105-15005

AT19#,CT19#,ST19#

外径=13.3

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AT19#,CT19#,ST19#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29375

AT19#,CT19#,ST195

 1
43330-29265

AT19#,CT19#,ST19#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AT19#,CT19#,ST19#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12122

AT19#,CT19#,ST19#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12052

AT19#,CT19#,ST19#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29265

AT19#,CT19#,ST19#

 1
43330-29375

AT19#,CT19#,ST195

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AT19#,CT19#,ST19#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12122

AT19#,CT19#,ST19#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12052

AT19#,CT19#,ST19#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20220

AT19#,CT190

 1
48068-20260

AT19#,CT190,ST190

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
90389-19002

AT19#,CT190

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
90389-19002

AT19#,CT190

 1
48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90389-19002

AT19#,CT190,ST190

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20260

AT19#,CT190,ST190

 1
48069-20220

AT19#,CT190

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90389-19002

AT19#,CT190,ST190

 1
Common parts
95381-03025

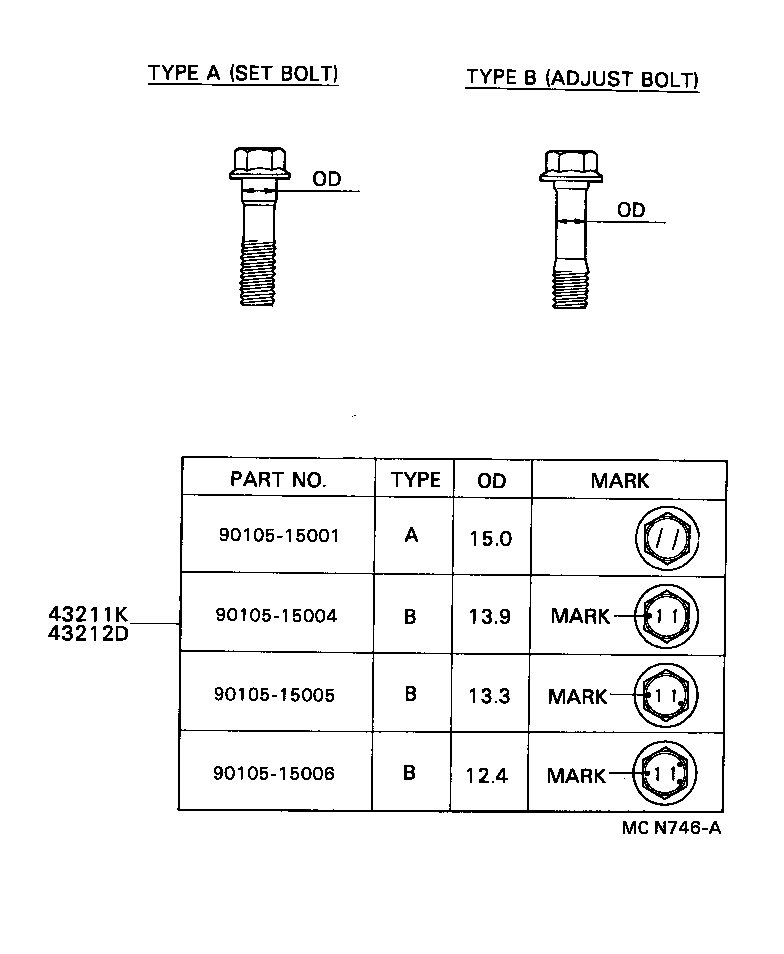

ILLUST NO. 2 OF 2(9208- )

Click highlighted areas on diagram

diagram 43211K 43212D 9010515001 9010515004 9010515005 9010515006
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT19#,CT19#,ST19#

外径=13.3

 1
90105-15001

AT19#,CT19#,ST19#

外径=15.0

 2
90105-15004

AT19#,CT19#,ST19#

外径=13.9

 1
90105-15006

AT19#,CT19#,ST19#

外径=12.4

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT19#,CT19#,ST19#

外径=15.0

 2
90105-15006

AT19#,CT19#,ST19#

外径=12.4

 1
90105-15004

AT19#,CT19#,ST19#

外径=13.9

 1
90105-15005

AT19#,CT19#,ST19#

外径=13.3

 1
Common parts
90105-15001
90105-15004
90105-15005
90105-15006

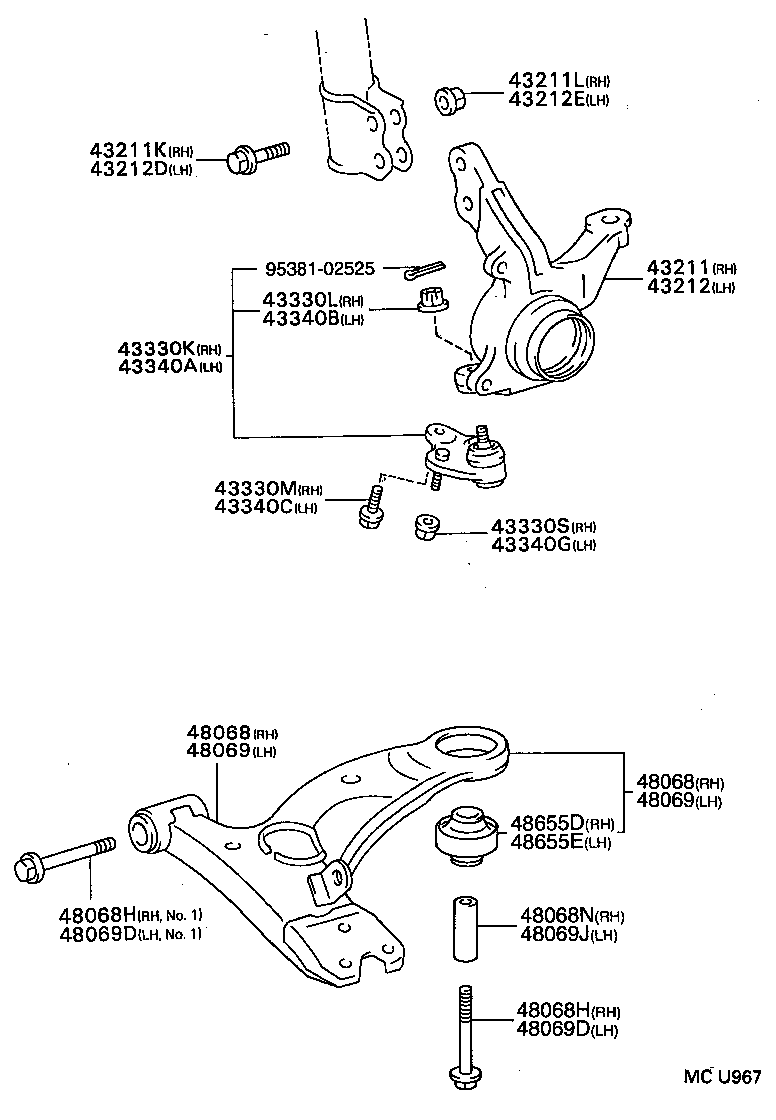

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068 48068H 48068H 48068N 48069 48069 48069D 48069D 48069J 48655D 48655E 9538102525
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20210

AT19#,CT190,ST190

 1
43211-20300

AT19#,CT190

 1
43211-20220

CT190;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43211-20221

CT190;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT19#,CT19#,ST19#

外径=13.3

 1
90105-15001

AT19#,CT19#,ST19#

外径=15.0

 2
90105-15004

AT19#,CT19#,ST19#

外径=13.9

 1
90105-15006

AT19#,CT19#,ST19#

外径=12.4

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

AT19#,CT19#,ST19#

 2
43212 - KNUCKLE, STEERING, LH
43212-20180

CT190;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43212-20170

AT19#,CT190,ST190

 1
43212-20181

CT190;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(ABS)

 1
43212-20300

AT19#,CT190

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT19#,CT19#,ST19#

外径=15.0

 2
90105-15006

AT19#,CT19#,ST19#

外径=12.4

 1
90105-15004

AT19#,CT19#,ST19#

外径=13.9

 1
90105-15005

AT19#,CT19#,ST19#

外径=13.3

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AT19#,CT19#,ST19#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29375

AT19#,CT19#,ST195

 1
43330-29265

AT19#,CT19#,ST19#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AT19#,CT19#,ST19#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12122

AT19#,CT19#,ST19#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12052

AT19#,CT19#,ST19#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29265

AT19#,CT19#,ST19#

 1
43330-29375

AT19#,CT19#,ST195

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AT19#,CT19#,ST19#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12122

AT19#,CT19#,ST19#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12052

AT19#,CT19#,ST19#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20220

AT19#,CT190

 1
48068-20260

AT19#,CT190,ST190

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20220

AT19#,CT190

 1
48068-20260

AT19#,CT190,ST190

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
90389-19002

AT19#,CT190

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
90389-19002

AT19#,CT190

 1
48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90389-19002

AT19#,CT190,ST190

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20260

AT19#,CT190,ST190

 1
48069-20220

AT19#,CT190

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20260

AT19#,CT190,ST190

 1
48069-20220

AT19#,CT190

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT19#,CT19#,ST19#

ARM NO.1

 1
90119-14046

AT19#,CT19#,ST19#

ARM NO.2

 1
48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90389-19002

AT19#,CT190,ST190

 1
48655D - BUSH, FRONT LOWER ARM, NO.2 RH
48655-20220

AT19#,CT190

 1
48655E - BUSH, FRONT LOWER ARM, NO.2 LH
48655-20220

AT19#,CT190

 1
Common parts
95381-02525
