CT190-CEPES (1992)
Toyota Carina Ff

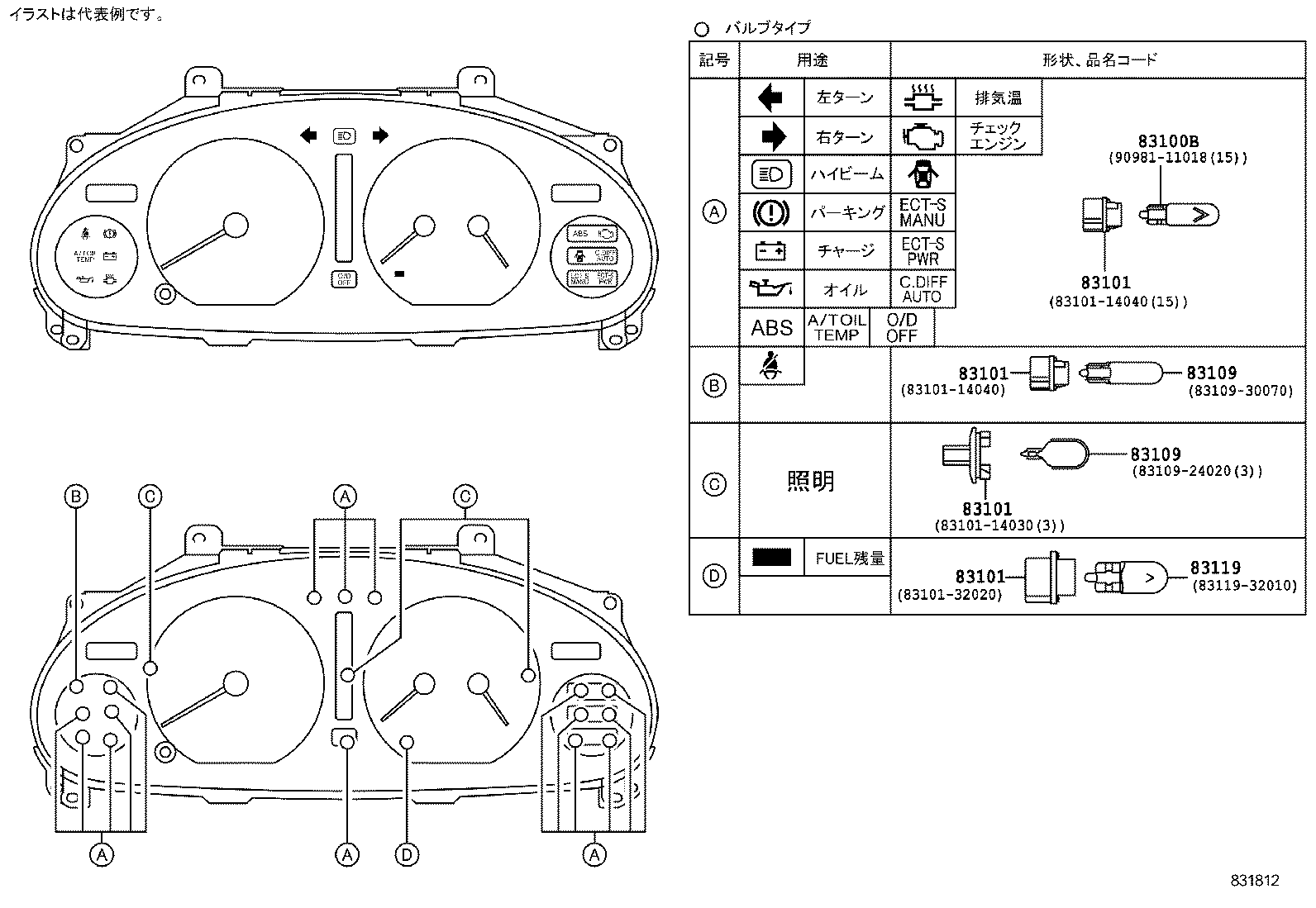

ILLUST NO. 2 OF 4(9208- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CT190..ATM;AT190,191,CT19#,ST19#..MTM..(SE,SL,SXI) 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT190..ATM;AT190,CT19#,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-14030 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.4W |
4 | ||
| 83101-32020 |
AT19#,CT19#,ST19# BULB:12V 3.0W |
1 | ||
| 83101-14040 |
CT19#..SE;AT190,191,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-32020 |
AT192..ATM;AT192..MTM..SX;AT190,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.0W |
1 | ||
| 83101-32020 |
CT19#..SE;AT19#,ST195..ATM;AT19#,ST195..MTM..(SE,SL,SX,SXI) BULB:12V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT190..ATM;AT190,CT19#,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-14030 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.4W |
4 | ||
| 83101-32020 |
AT19#,CT19#,ST19# BULB:12V 3.0W |
1 | ||
| 83101-14040 |
CT19#..SE;AT190,191,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-32020 |
AT192..ATM;AT192..MTM..SX;AT190,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.0W |
1 | ||
| 83101-32020 |
CT19#..SE;AT19#,ST195..ATM;AT19#,ST195..MTM..(SE,SL,SX,SXI) BULB:12V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT190..ATM;AT190,CT19#,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-14030 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.4W |
4 | ||
| 83101-32020 |
AT19#,CT19#,ST19# BULB:12V 3.0W |
1 | ||
| 83101-14040 |
CT19#..SE;AT190,191,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-32020 |
AT192..ATM;AT192..MTM..SX;AT190,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.0W |
1 | ||
| 83101-32020 |
CT19#..SE;AT19#,ST195..ATM;AT19#,ST195..MTM..(SE,SL,SX,SXI) BULB:12V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT190..ATM;AT190,CT19#,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-14030 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.4W |
4 | ||
| 83101-32020 |
AT19#,CT19#,ST19# BULB:12V 3.0W |
1 | ||
| 83101-14040 |
CT19#..SE;AT190,191,ST19#..MTM..(SE,SL,SXI) BULB:12V 1.4W |
12 | ||
| 83101-32020 |
AT192..ATM;AT192..MTM..SX;AT190,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.0W |
1 | ||
| 83101-32020 |
CT19#..SE;AT19#,ST195..ATM;AT19#,ST195..MTM..(SE,SL,SX,SXI) BULB:12V 3.0W |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83109-30070 |
AT19#,CT19#,ST19# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83109-30070 |
AT19#,CT19#,ST19# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24130 |
AT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
7 | ||
| 83119-32010 |
AT19#,CT19#,ST19# 14V 3.0W |
1 | ||

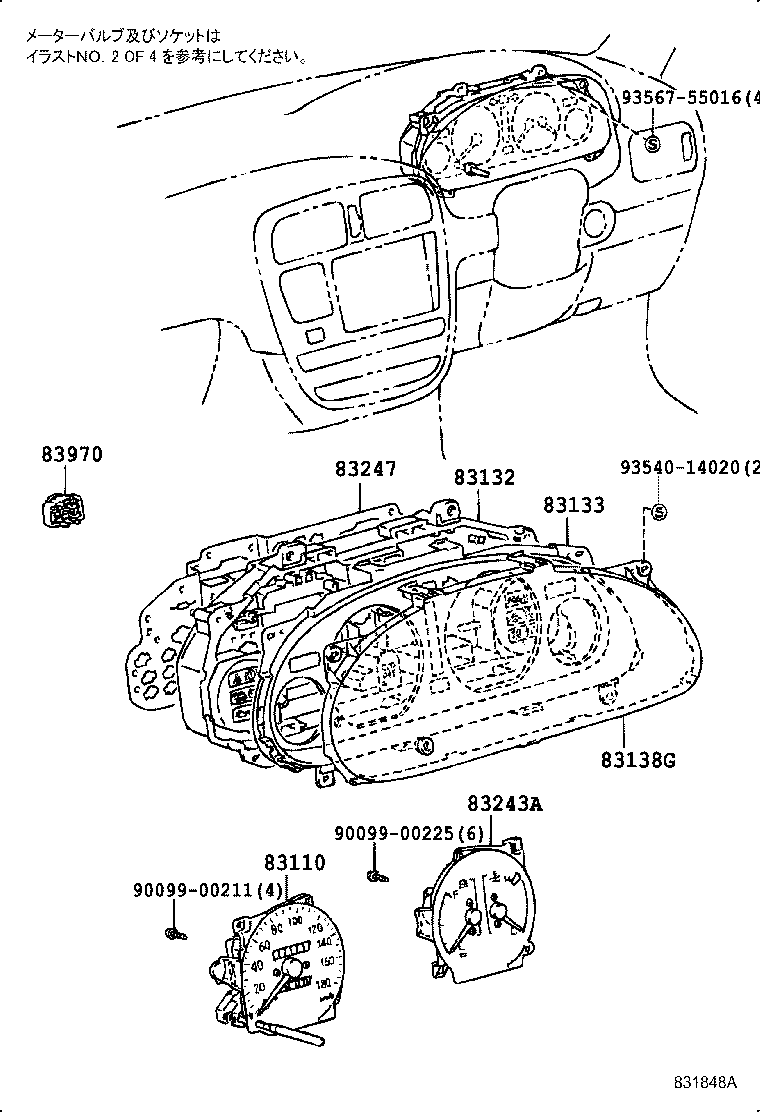

ILLUST NO. 1 OF 4(9208- )
ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D440 |
CT19#..SE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2H690 |
AT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-20570 |
AT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-2B310 |
AT19#,CT19#,ST19# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20570 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 83243-20750 |
AT191,CT19#,ST195..SE,SEEXT |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-21850 |
ST195..MTM..(SE,SX);AT19#,CT19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 83247-21710 |
CT190..ATM..SE |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
AT19#,CT190,ST19#..ATM |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

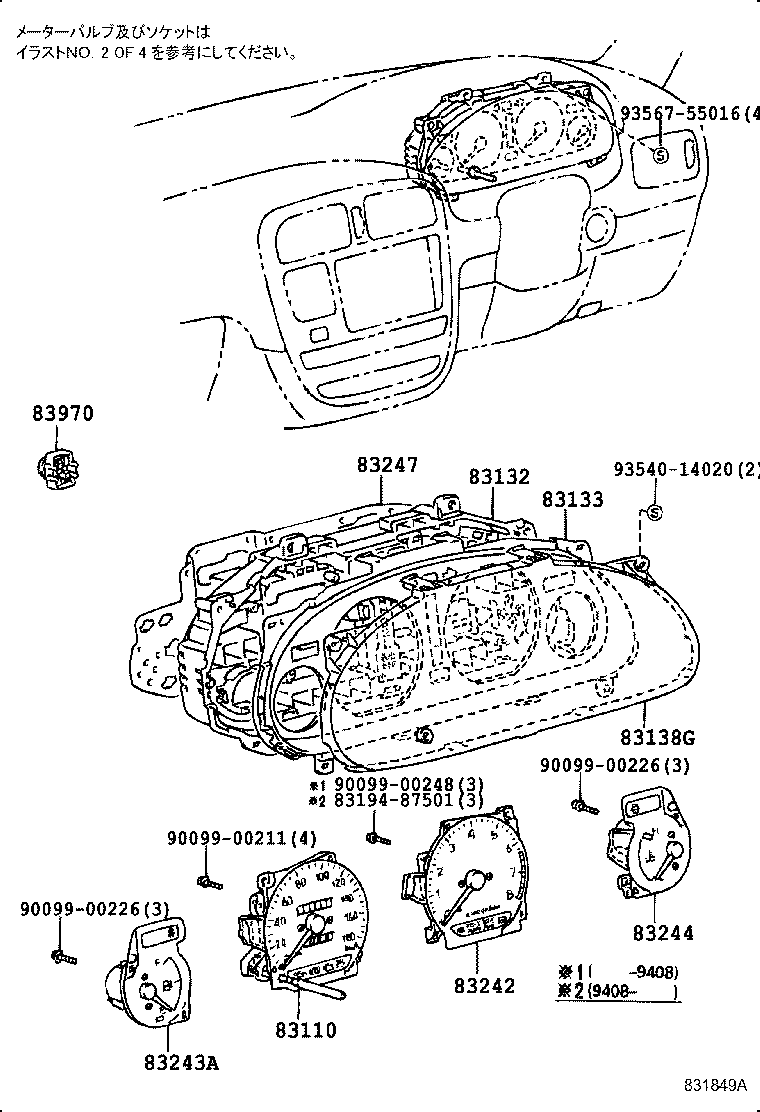

ILLUST NO. 1 OF 4(9208- )
ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D440 |
CT19#..SE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2H690 |
AT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-20570 |
AT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-2B310 |
AT19#,CT19#,ST19# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20610 |
CT19#..SE |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20570 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 83243-20750 |
AT191,CT19#,ST195..SE,SEEXT |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20370 |
AT190,CT19#,ST19#..SE,SEEXT,SL,SXI |
1 | ||
| 83244-20390 |
AT192,CT19#..SE,SX;ST195..MTM..(SE,SX) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-21850 |
ST195..MTM..(SE,SX);AT19#,CT19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 83247-21710 |
CT190..ATM..SE |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
AT19#,CT190,ST19#..ATM |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00211 | ||||
| 90099-00226 | ||||
| 90099-00248 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

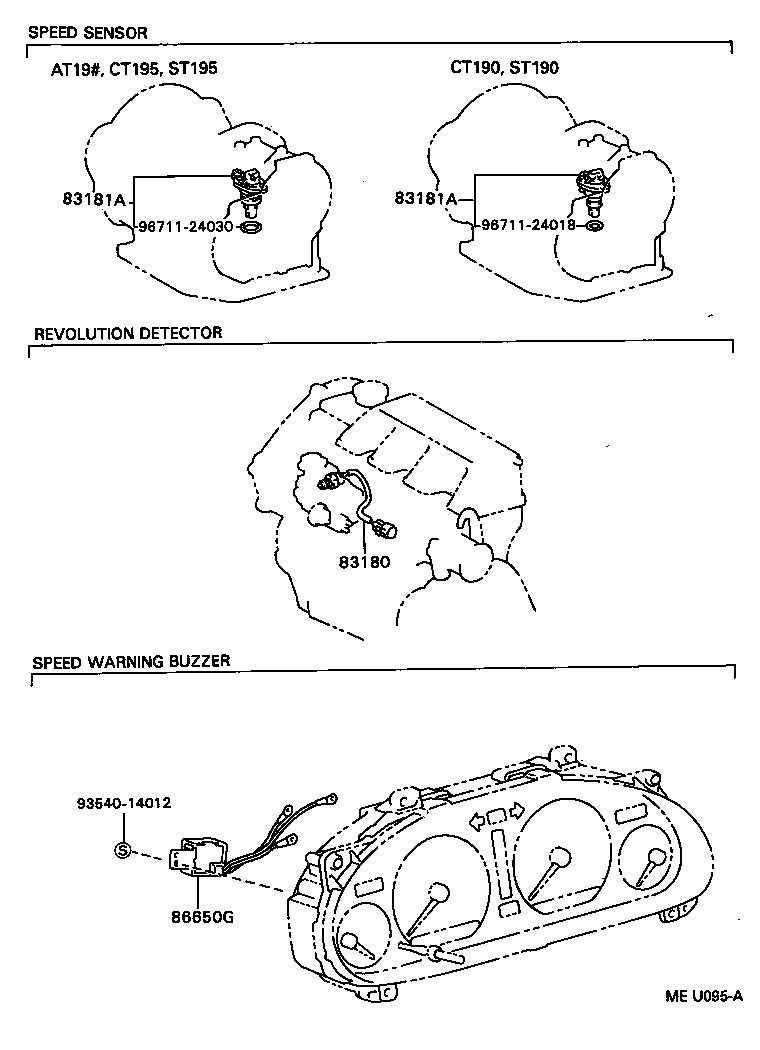

ILLUST NO. 4 OF 4(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
CT19# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CT190,ST190..ATM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CT190,ST190..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||

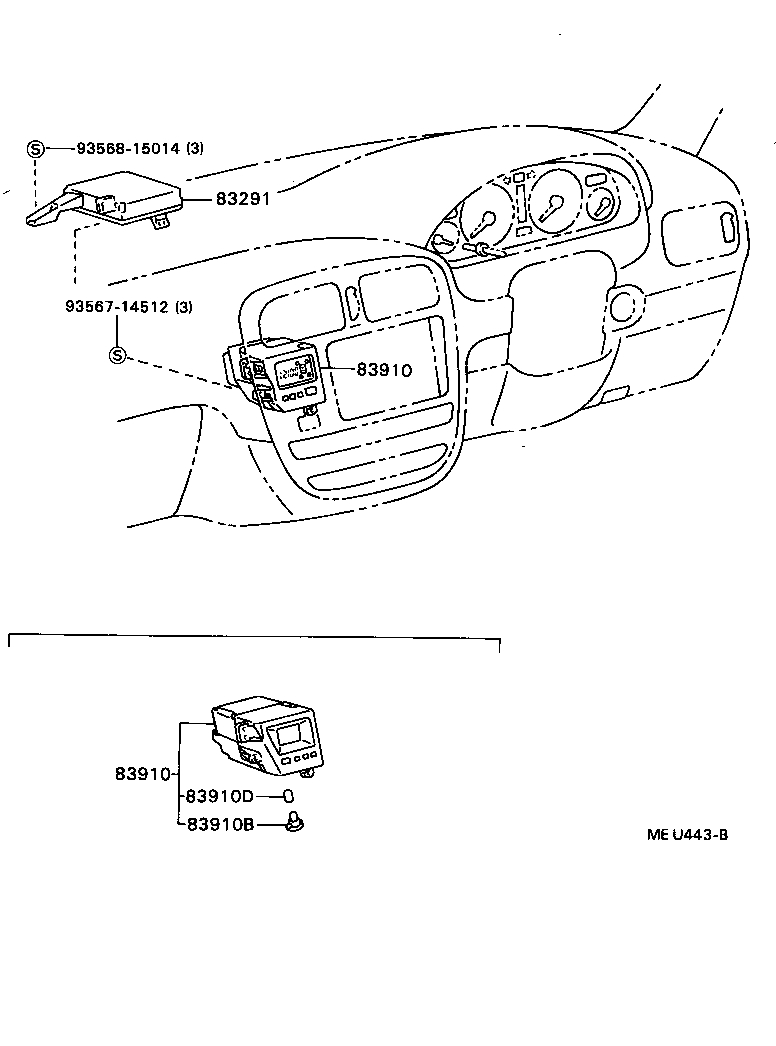

ILLUST NO. 3 OF 4(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20660 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 83910-20670 |
CT19#,ST19#..SE,SL ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20660 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 |
1 | ||
| 83910-20670 |
CT19#,ST19#..SE,SL ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 84999-50310 |
CT19#..SE 14V 140A |
1 | ||
| 83910D - CAP, CLOCK INDICATOR BULB | ||||
| 84998-50002 |
CT19#,ST19#..SE,SL |
1 | ||
| Common parts | ||||
| 93567-14512 | ||||
| 93568-15014 | ||||
