CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

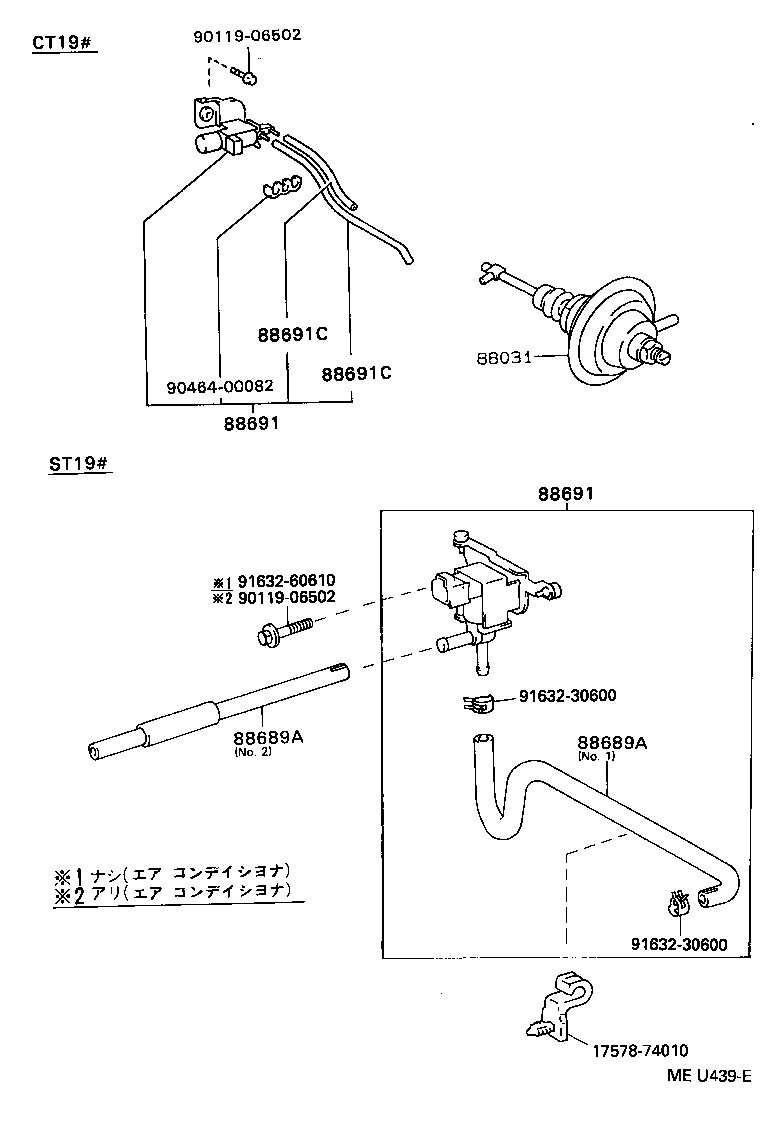

Click highlighted areas on diagram

diagram 1757874010 88031 88689A 88689A 88691 88691 88691C 88691C 9011906502 9011906502 9046400082 9163230600 9163230600 9163260610
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-20080

CT19#

 1
88031-20080

CT190

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
17600-64040

CT190

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
17600-64040

CT190

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CT190

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CT190

*H,L=300

 1
Common parts
17578-74010
90119-06502
90464-00082
91632-30600
91632-60610

(9208- )

Click highlighted areas on diagram

diagram 88689A 88689A 88691 9011906336 9011906502 9163260610 9613230600 9613230600
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
17600-64040

CT190

 1
Common parts
90119-06336
90119-06502
91632-60610
96132-30600
