CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )CT19#

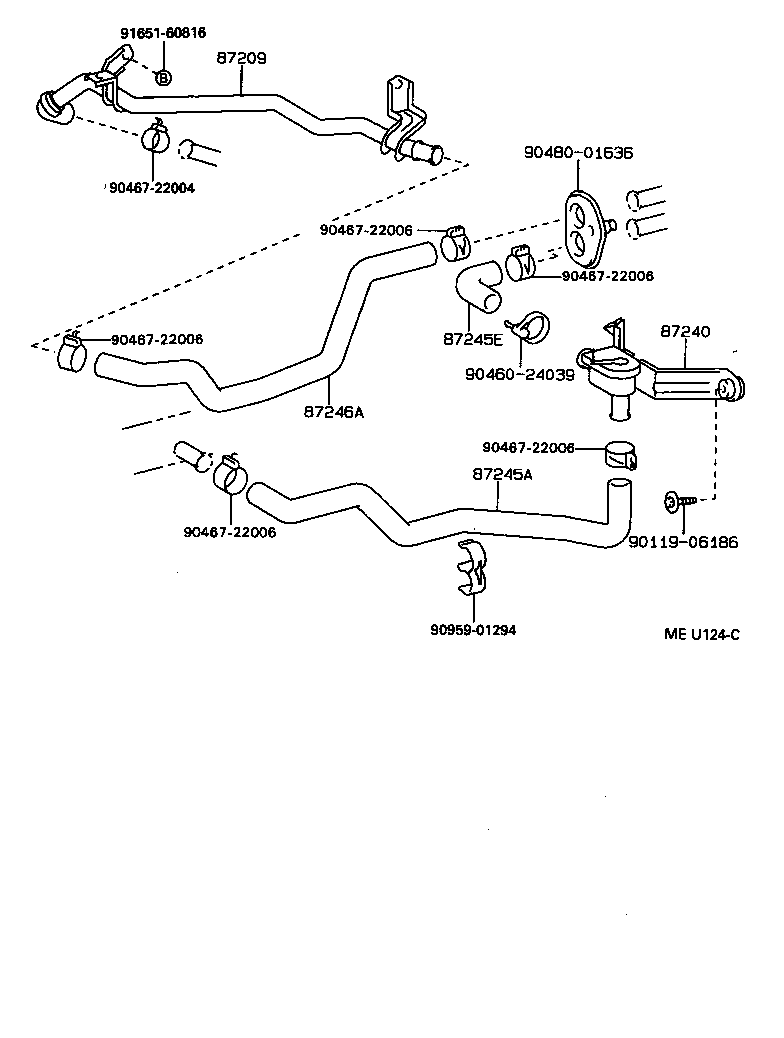

Click highlighted areas on diagram

diagram 87209 87240 87245A 87245E 87246A 9011906186 9046024039 9046722004 9046722006 9046722006 9046722006 9046722006 9046722006 9048001636 9095901294 9165160816
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-20290

CT19#

 1
87240 - VALVE ASSY, HEATER WATER
87240-20370

AT19#,CT19#,ST19#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B690

CT190

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B610

AT19#,CT19#,ST19#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B700

CT190

 1
Common parts
90119-06186
90460-24039
90467-22004
90467-22006
90480-01636
90959-01294
91651-60816
