CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

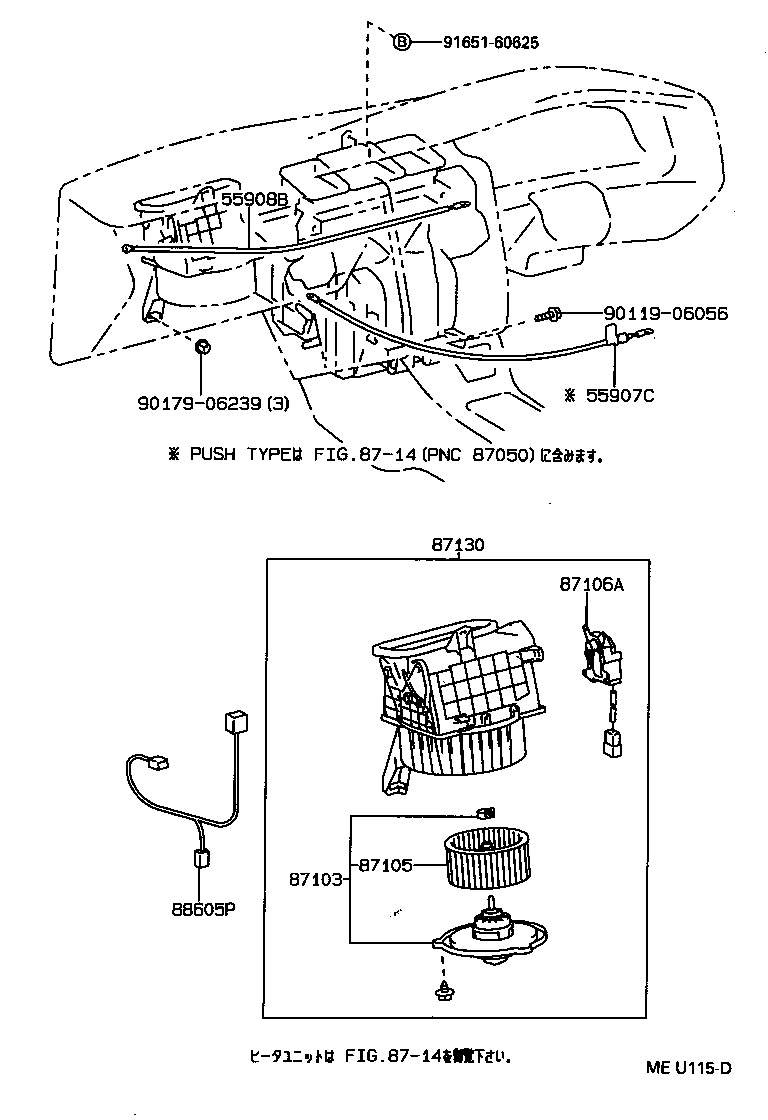

Click highlighted areas on diagram

diagram 55907C 55908B 87103 87105 87106A 87130 8714 88605P 9011906056 9017906239 9165160625
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20320

AT19#,CT19#,ST195..SG,SGI

 1
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20180

AT19#,CT19#,ST195..SG,SGI

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20080

AT19#,CT19#,ST19#

 1
87103-22100

AT19#,CT19#,ST195

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-33010

AT19#,CT19#,ST19#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20540

AT19#,CT19#,ST195..SG,SGI

 1
Common parts
90119-06056
90179-06239
91651-60625
Linked diagrams
8714
