CT190-CEMNS (1992)
Toyota Carina Ff
(9208- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AT19#,CT19#,ST19# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80119 |
AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84112-80111 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84112-80120 |
CT190..SG;AT192,ST190..SX ﾏｲ ﾛ-ﾄﾞ |
1 | ||
| 84112-80119 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20470 |
AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84140-20470 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84140-12320 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H730 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84310-2H730 |
AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84310-2H710 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84310-2H750 |
CT190..SG;AT19#,ST190..SX,SXI ﾏｲ ﾛ-ﾄﾞ |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI |
1 | ||
| 84312-12040 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AT19#,CT19#,ST195..SG,SGI MATSUSHITA |
1 | ||
| 84329-12020 |
CT190..SG;AT192,ST190..SX ﾏｲﾛｰﾄﾞ,MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AT19#,CT19#,ST19# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G220 |
CT190..SG;AT19#,ST190..SX,SXI ﾏｲ ﾛ-ﾄﾞ |
1 | ||
| 84652-2G200 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 84652-2G180 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84652-2G200 |
AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90463-12570 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
(9208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28341-11010 |
4AFE,5AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#..MTM |
1 | ||
| 28300-10020 |
4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64150 |
2C..CT19# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-64110 |
2C..CT19# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2C..CT19# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64050 |
2C..CT19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT19#,CT19#,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
AT19#,CT19# 15A |
4 | ||
| 90982-09005 |
AT19#,CT19#,ST19# 7.5A |
3 | ||
| 90982-09002 |
AT19#,CT19#,ST19# 10A |
3 | ||
| 90982-09004 |
AT19#,CT19#,ST19# 20A,黄 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT19#,CT19#,ST19# 30A,ﾋﾟﾝｸ |
2 | ||
| 90982-10002 |
AT19#,CT19#,ST19# 40A,緑 |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20070 |
CT19# |
1 | ||
| 82603-20021 |
CT19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20070 |
CT19# |
1 | ||
| 82603-20021 |
CT19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20070 |
CT19# |
1 | ||
| 82603-20021 |
CT19# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20080 |
AT19#,CT19#,ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20280 |
CT19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20280 |
CT19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20280 |
CT19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20880 |
CT19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20880 |
CT19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20880 |
CT19# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-20050 |
CT19# |
1 | ||
| 82673-20070 |
CT190..SG ﾏｲﾛ-ﾄﾞ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20170 |
CT19#..SG |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20030 |
CT19# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20030 |
CT19# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20030 |
CT19# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CT19# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-20090 |
CT19# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT19#,CT19#,ST19# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT19#,CT19#,ST19# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AT19#,CT19#,ST19# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04003 |
AT19#,CT19#,ST19# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-20190 |
CT19# |
1 | ||
| 85959D - HOLDER, RELAY | ||||
| 85959-20160 |
CT19# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT19#,CT19#,ST19# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89420-20220 |
CT19# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
CT19# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 90119-06171 | ||||
| 90119-06595 | ||||
| 90179-05032 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 91635-60616 | ||||
| 91651-40614 | ||||
| 91652-B0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||

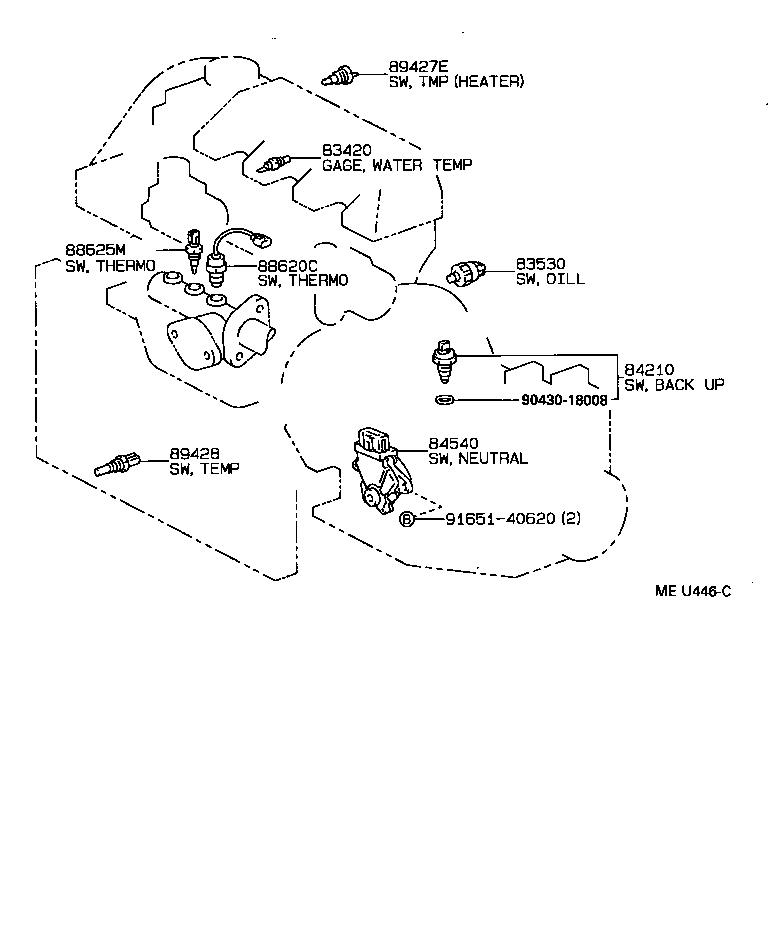

(9208- )CT19#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CT19# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
CT19# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AT19#,CT19#,ST19#..MTM |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-20410 |
CT19#,ST19# |
1 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12051 |
CT19# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
(9208- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20310 |
AT19#,CT19#,ST19# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT19#,CT19#,ST19# 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040C0 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ,BLACK,TRIM1#,4# |
2 | ||
| 84656-20040E0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,DK. ROSE,TRIM4# |
2 | ||
| 84656-20040C0 |
CT190..SG ﾏｲﾛ-ﾄﾞ,BLACK,TRIM1#,4# |
2 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AT19#,CT19#,ST195..SG,SGI 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20340 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT19#,CT19#,ST195..SG,SGI 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20410 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84790-20420 |
AT19#,CT19#,ST195..SG,SGI ｶﾝﾚｲﾁ ｼﾖｳ,ｱﾘ(ﾜｲﾊﾟﾃﾞｱｲｻ-) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT19#,CT19#,ST19# 12V 0.7W |
1 | ||
| 84999-10320 |
AT19#,CT19#,ST19# 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT19#,CT19#,ST19# 12V 0.7W |
1 | ||
| 84999-10320 |
AT19#,CT19#,ST19# 14V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10030 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ |
3 | ||
| 84810-12080 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ |
3 | ||
| 84810-12080 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-21010 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84820-16030 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ |
1 | ||
| 84820-21010 |
CT190..SG ｱﾘ(*PW) |
1 | ||
| 84820-22310 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-21010 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84820-16030 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ |
1 | ||
| 84820-21010 |
CT190..SG ｱﾘ(*PW) |
1 | ||
| 84820-22310 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
1 | ||
| 84821 - SWITCH, POWER WINDOW LOCK | ||||
| 84821-20010 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20140 |
CT190..SG;AT19#,ST19#..SL,SX,SXI ｱﾘ(*57) |
1 | ||
| 84870-20080 |
AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20230 |
AT19#,CT19#,ST19# |
1 | ||
| 85500-20270 |
AT19#,CT19#,ST19# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
AT19#,CT19#,ST19# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT19#,CT19#,ST19# |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-20210 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84660-16130 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| Common parts | ||||
| 93540-44012 | ||||
| 93560-53010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
(9208- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT19#,CT19#,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT19#,CT19#,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
AT19#,CT19# 15A |
4 | ||
| 90982-09005 |
AT19#,CT19#,ST19# 7.5A |
3 | ||
| 90982-09002 |
AT19#,CT19#,ST19# 10A |
3 | ||
| 90982-09004 |
AT19#,CT19#,ST19# 20A,黄 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20070 |
AT19#,CT19#,ST19# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-20010 |
AT19#,CT19#,ST19# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-20250 |
AT19#,CT19#,ST19# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-20330 |
AT19#,CT19#,ST19# |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-20270 |
AT19#,CT19#,ST19# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-2B041 |
CT19#,ST195;AT19#..SEEXT,SGI,SL,SX,SXI |
1 | ||
| 82672-2B040 |
AT192..SX;AT192..MTM..SG;AT190,CT19#,ST19# |
1 | ||
| 82672-2B041 |
AT192..SX;AT192..MTM..SG;AT190,CT19#,ST19# |
1 | ||
| 82672-2B040 |
AT19#,CT19#,ST19# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-20200 |
AT19#,CT19#,ST19# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT19#,CT19#,ST19# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT19#,CT19#,ST19# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT19#,CT19#,ST19# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 84340-32050 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 84340-32050 |
AT19#,CT19#,ST19# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT19#,CT19#,ST19# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02009 |
CT190..SG |
1 | ||
| 90987-02009 |
AT19#,CT19#,ST195 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 90987-02009 |
CT190..SG;AT192,ST190..SX |
1 | ||
| 90987-02009 |
AT19#,CT19#,ST195 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-20050 |
CT190..SG;AT192,ST190..SX ﾏｲ ﾛ-ﾄﾞ |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20331 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ |
1 | ||
| 85980-20330 |
CT190..SG ﾏｲ ﾛ-ﾄﾞ |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 85985-30010 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-20050 |
CT190;AT19#,CT195,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-20060 |
CT19# |
1 | ||
| 89551-20090 |
CT19#..MTM |
1 | ||
| 89559A - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89669-20170 |
CT19# |
1 | ||
| 89566B - BRACKET, ENGINE CONTROL COMPUTER, NO.4 | ||||
| 89566-20020 |
CT19# |
1 | ||
| 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-20220 |
CT19# |
1 | ||
| 89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20190 |
CT19# |
1 | ||
| 89669D - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20150 |
CT19# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06070 | ||||
| 91635-60616 | ||||
| 91651-40616 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
(9208- )
ROOF,DOOR,SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT190 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT190 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80242 |
CT190 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20360 |
AT19#,CT19#,ST19# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20240 |
CT190..SG ﾏｲﾛ-ﾄﾞ |
1 | ||
| 84931-20240 |
CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90164-45006 | ||||
| 91661-60616 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
| 93567-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
